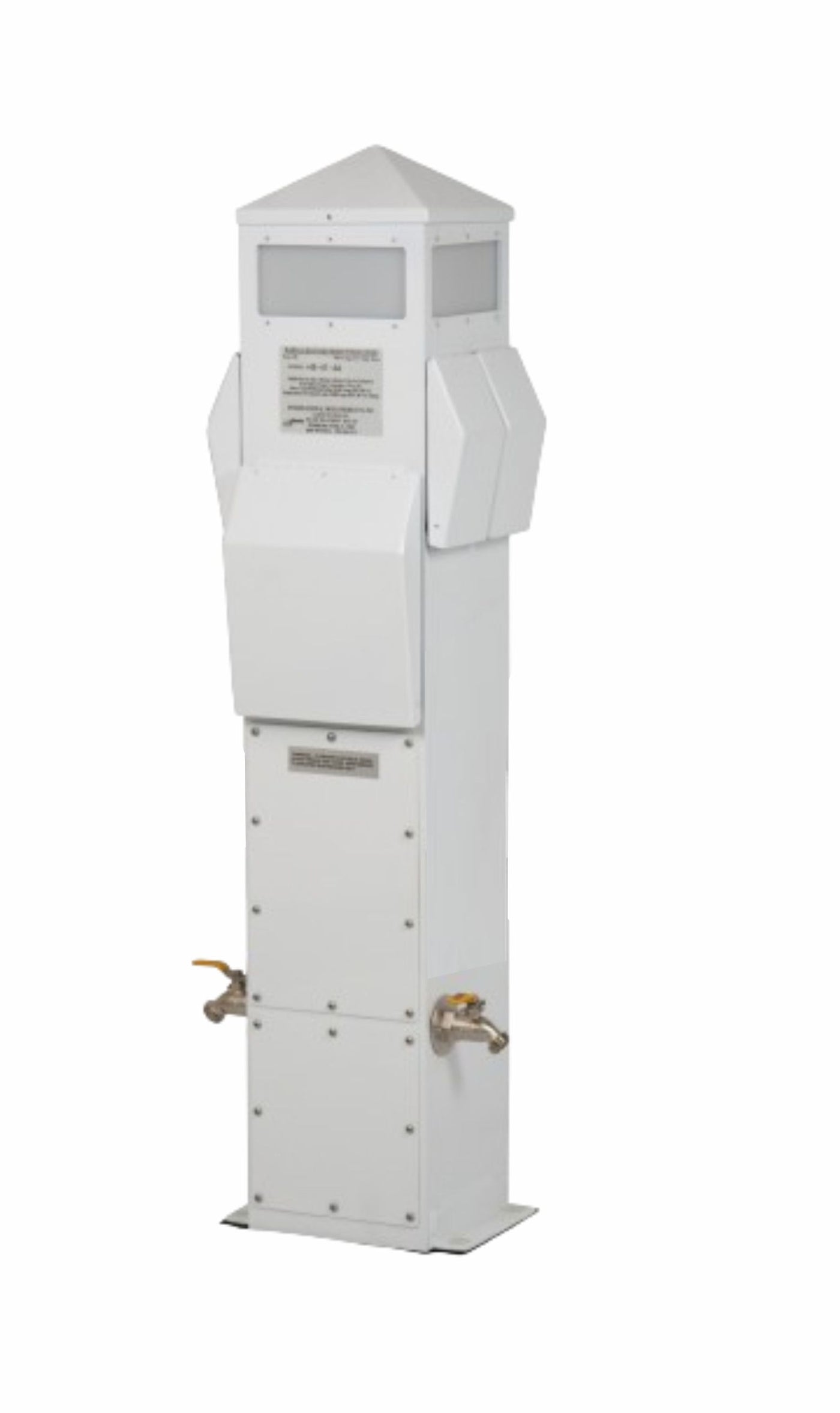

Int'l Dock SPB-41-6A Shore Power Pedestal Product Description
International Dock Products SPB-41-6A 41" Shore Power Pedestal - Professional Marine Electrical Distribution System
Premium Marina-Grade Shore Power Solution for Large Vessel Applications
The International Dock Products SPB-41-6A Shore Power Pedestal delivers professional-grade electrical distribution for marinas serving vessels requiring high-amperage shore power connections. This 41-inch aluminum pedestal provides comprehensive power options from standard 20-amp household current to dual 50-amp service for large yachts and commercial vessels, making it the ideal choice for full-service marinas and private docks.
Advanced Electrical Configuration
- Dual 50-Amp Service: Two 125/250V twistlock receptacles for large vessel electrical systems
- Twin 30-Amp Connections: Dual 125V twistlock receptacles for mid-size recreational boats
- GFCI-Protected 20-Amp Outlets: Two duplex receptacles with Ground Fault Circuit Interrupter protection
- Individual Circuit Protection: Each receptacle protected by dedicated circuit breaker for maximum safety
- Angled Outlet Design: 45-degree downward-angled receptacles prevent water intrusion and debris accumulation
Marine-Grade Construction Features
- Seamless Aluminum Extrusion: Weather-resistant construction with powder-coated white finish inside and out
- Corrosion-Resistant Hardware: All stainless steel fasteners and components for saltwater environments
- Integrated LED Lighting: Photocell-controlled LED illumination for safe nighttime connections
- Back-Lit Receptacles: Individual outlet illumination for easy identification in low-light conditions
- Protective Covers: Matching aluminum powder-coated covers shield all receptacles from weather
Complete Utility Integration
- Dual Water Faucets: Convenient freshwater access for boat maintenance and provisioning
- Shore Cord Management: Integrated hanger system keeps power cables and water hoses organized
- Series Connection Ready: Compatible with optional loop distribution block for multiple pedestal installations
- Full Access Panel: Bottom-feed wire entry with complete access for professional installation
Technical Specifications
| Dimensions: | 8" W x 8" D x 41" H |
| Weight: | 45 lbs |
| Construction: | Extruded aluminum with powder coating |
| Finish: | White marine-grade powder coating |
| Installation: | Vertical dock mount with bottom feed |
| Electrical Rating: | Up to 100-amp service capability |
Professional Installation Benefits
- Wider Profile Design: Accommodates 100-amp single and three-phase electrical service for commercial applications
- Versatile Mounting: Designed for vertical dock installation with secure base anchoring
- Accessibility: Full-access electrical panel simplifies wire routing and maintenance
- Code Compliance: Meets marine electrical standards for commercial marina installations
Comprehensive Warranty Protection
- 15-Year Structural Warranty: Unconditional guarantee on casing structural integrity
- 2-Year Construction Warranty: Complete coverage on fabrication and construction quality
- Marine Environment Tested: Proven performance in harsh saltwater conditions
Ideal Applications
- Full-service marinas requiring high-amperage shore power
- Private docks serving large recreational and commercial vessels
- Yacht clubs and boat yards with diverse electrical service needs
- Commercial fishing harbors requiring reliable power distribution
- Waterfront developments with luxury boat slips
Safety and Compliance Features
- GFCI Protection: Ground fault protection on all 20-amp circuits
- Individual Breakers: Dedicated overcurrent protection for each electrical service
- Weather-Sealed Design: IP-rated construction prevents moisture intrusion
- Angled Outlets: Gravity-assisted water drainage prevents electrical hazards
- Professional-Grade Components: Marine-rated electrical components throughout
Frequently Asked Questions
What electrical service does the SPB-41-6A provide?
The SPB-41-6A provides dual 50-amp 125/250V service, dual 30-amp 125V service, and dual 20-amp GFCI-protected duplex outlets, accommodating boats from small recreational vessels to large yachts requiring high-amperage shore power.
Can multiple pedestals be connected in series?
Yes, the SPB-41-6A can be connected in series using International Dock Products' optional loop distribution block, allowing for efficient power distribution across multiple dock positions.
What makes this pedestal suitable for marine environments?
The pedestal features seamless extruded aluminum construction with interior and exterior powder coating, stainless steel hardware, weather-sealed receptacles, and 45-degree angled outlets that prevent water accumulation and debris intrusion.
How is the pedestal installed on the dock?
The SPB-41-6A mounts vertically to the dock surface with bottom-feed electrical entry. The full-access electrical panel allows for easy wire routing and professional installation by qualified marine electricians.
What warranty coverage is included?
International Dock Products provides a 15-year unconditional warranty on structural integrity and a 2-year warranty on construction and fabrication, ensuring long-term reliability in marine environments.
Does the pedestal include water service?
Yes, the SPB-41-6A includes dual water faucets and integrated hose storage, providing complete utility service for boat maintenance, provisioning, and deck washing needs.
Professional Marine Power Distribution: The International Dock Products SPB-41-6A Shore Power Pedestal represents the pinnacle of marina electrical infrastructure, combining robust construction, comprehensive electrical service, and professional-grade features. Whether equipping a commercial marina or upgrading a private dock, this pedestal delivers the reliable, code-compliant power distribution essential for modern marine facilities.
International Doock Products 41"" Dock Mount Power Pedestal
Model: SPB-41-6A- Shore Cord/Water Hose hanger keeps dock clutter free
- Connect multiple pedestals in series with optional loop distribution block
- Feed wires up through bottom of pedestal and connect using full access panel
- Seamless extruded aluminum case powder coated inside and out
- White powder coating
- 15-year unconditional warranty on structural integrity of the casing
- 2-year unconditional warranty on construction and fabrication of casings
Our 41" pedestal (SPB-41) is designed to be mounted vertically on the dock. The wider profile accommodates 100 Amp single and three phase for larger boats, standard outlets and all our accessories and meters. A great choice for marinas this ‘A’ series pedestal has outlets mounted at a 45 degree down angle with aluminum powder coated covers to match the pedestal.
This pedestal includes:
Dual 50A 125/250v twistlock Receptacle
Dual 30A Twistlock Receptacle
Dual 20A GFCI Duplex Receptacle
Dual Water faucet
LED Light and Photocell
Direct feed power distribution
Save $967 when you buy the Int'l Dock SPB-41-6A Shore Power Pedestal for only $2289 from NVN Marine! Same day shipping before 3pm.
