Garmin ECHOMAP UHD2 73sv Panoptix PS22-IF Bundle GN+ US Inland Product Description
Transform your ice fishing trips with the ultimate portable sonar solution designed for hard-water anglers who demand mobility and precision. This bundle pairs a vibrant 7-inch touchscreen chartplotter with revolutionary Panoptix live sonar, letting you scout fish without being tethered to a single hole. Glide effortlessly across frozen lakes, adjusting views on the fly to chase schools of walleye or perch, all while staying warm in your gloves.
Seamless Mobility Meets Real-Time Fish Tracking
Forget bulky pole mounts that slow you down—this ice fishing kit features a clever bracket and rotator system on the PS22-IF transducer. Simply position it over your hole for LiveVü Forward mode to scan ahead up to 100 feet, spotting fish approaching before they arrive. Switch to LiveVü Down for a crystal-clear view directly beneath, revealing bottom structure and fish behavior in stunning detail. The pole-free design means you're always ready to relocate quickly, maximizing your time on productive spots.
Glove-Friendly Controls for Cold-Weather Confidence
Cold fingers fumbling with screens? Not here. The keyed assist alongside the responsive touchscreen ensures precise operation even with bulky mittens. Customize your display pages to split sonar views with high-definition inland maps, keeping everything at your fingertips. The rugged carrying case seals it all in, with dedicated compartments for easy transport across uneven ice—grab, go, and fish.
Superior Sonar Clarity and Coverage
Powered by Garmin's Panoptix technology, this setup delivers live video-like sonar that's a game-changer for ice anglers. Toggle between wide and narrow beams via the removable lens, honing in on tight schools or sweeping broad areas. Built-in CHIRP traditional sonar (50/77/200 kHz) complements the high-frequency ClearVü and SideVü (up to 1200 kHz) for comprehensive underwater intel. Whether you're targeting suspended crappies or bottom-hugging pike, the 500W output punches through thermoclines with ease.
Navigate 23,000+ Lakes with Precision Mapping
Preloaded with Garmin Navionics+ U.S. Inland charts covering over 23,000 lakes, you'll access daily updates via a 1-year subscription for the freshest contour lines, depth shading, and SmartDepth technology. Multi-band GPS with 10 Hz refresh rates tracks your position flawlessly, even under thick ice. ActiveCaptain compatibility lets you share waypoints and community insights wirelessly, while Quickdraw Contours lets you map your own hotspots on the spot.
Battery Life and Durability Built for the Ice
A sealed lead-acid 7Ah battery powers extended sessions, recharging quickly between outings. IPX7 water resistance shrugs off splashes and condensation, while the compact dimensions (10.5" x 9.5" x 10.5") and 12.2 lbs total weight make it trail-friendly. Bluetooth and Wi-Fi connectivity open doors to smartphone integration for software updates and data sharing, and NMEA 2000 support future-proofs your setup for additional sensors.
Pro Tips for Maximizing Your Setup
- Start with Forward mode when approaching structure to preview fish activity.
- Use the rotator for 360-degree sweeps in Down mode to pinpoint drop-offs.
- Combine sonar splits with GPS tracks to log proven honey holes for next season.
- Leverage glove-friendly keys for quick zoom during active bites.
Technical Edge for Serious Anglers
At its core, the WVGA display (800 x 480 resolution) renders sharp 7-inch visuals in a 6.1" x 3.4" viewable area. Store up to 5,000 waypoints, 50,000 track points across 50 tracks, and 100 routes. Dual-frequency CHIRP sonar pairs with Panoptix and LiveScope compatibility for versatile scanning. Expand with microSD up to 32GB for Navionics Vision+ or topo maps.
Frequently Asked Questions
What makes the PS22-IF transducer ideal for ice fishing?
Its pole-free bracket and rotator allow quick deployment over ice holes without mounts, switching seamlessly between Forward and Down sonar modes for mobile angling.
Is the display usable with gloves during winter conditions?
Yes, the touchscreen pairs with keyed assist controls, ensuring reliable operation even with thick gloves on frigid days.
What mapping is included and how detailed is it?
Garmin Navionics+ U.S. Inland covers 23,000+ lakes with 1-foot contours, daily updates, and features like SmartDepth for real-time bottom profiling.
How long does the battery last on a full charge?
The 7Ah SLA battery supports several hours of continuous use, depending on brightness and sonar intensity—perfect for full-day trips.
Can I customize the screen layout for ice fishing?
Absolutely, create custom pages blending live sonar, CHIRP views, maps, and GPS data for a tailored dashboard.
Does it support additional Garmin networking?
Yes, with NMEA 2000, Marine Network ports, Bluetooth, ANT+, and Wi-Fi for sharing data across compatible devices.
What's the sonar range in ice fishing scenarios?
LiveVü Forward reaches up to 100 feet ahead, while Down mode provides detailed views from surface to bottom, excelling in typical ice depths.
Complete Kit for Instant Ice Fishing Success

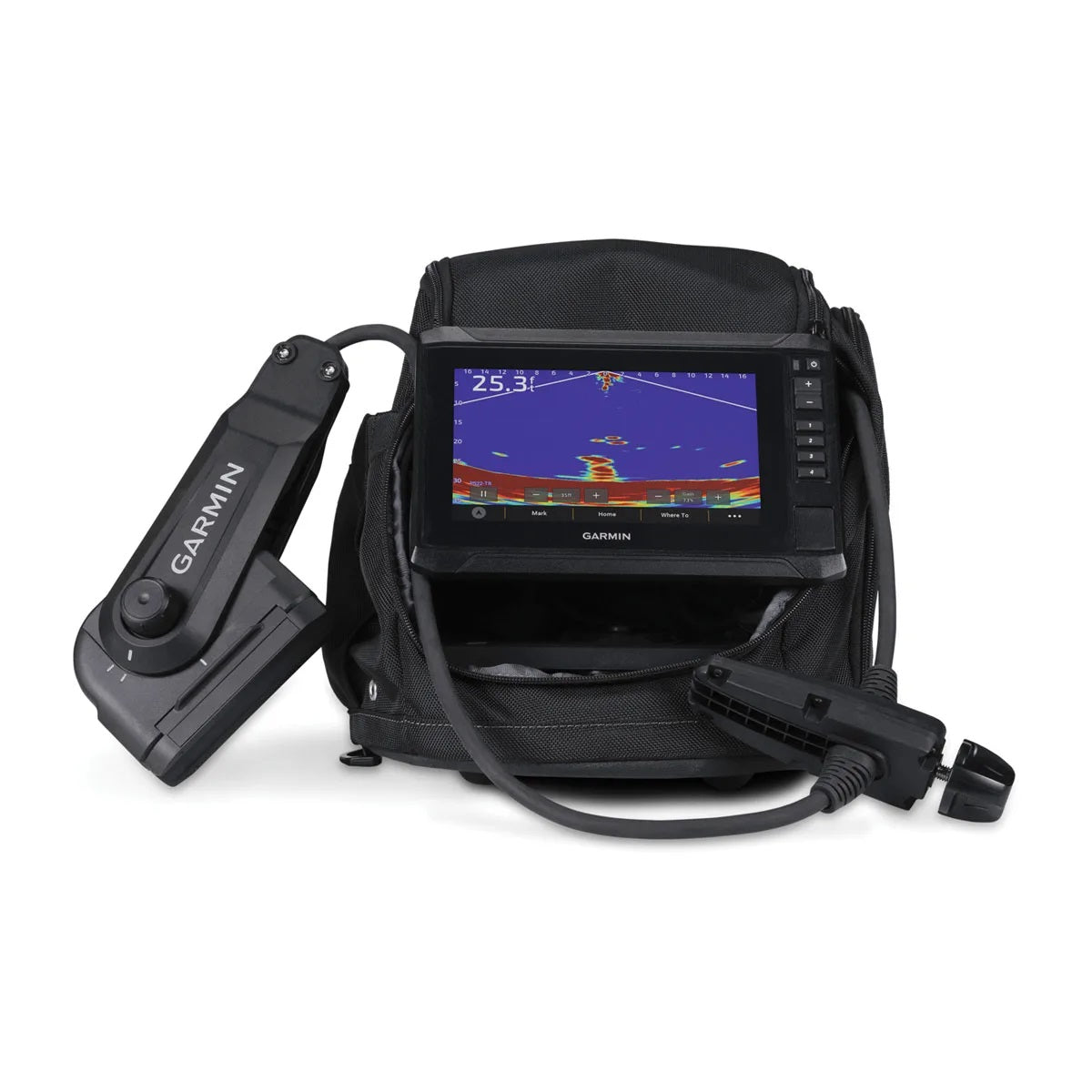

Everything you need arrives ready to fish: the ECHOMAP UHD2 73sv chartplotter, PS22-IF transducer with rotator and bracket, removable lens, rechargeable battery and charger, compact glove-friendly bag, power cable, foam float, hardware, and full documentation. Hit the ice with zero hassle.
Garmin ECHOMAP UHD2 73sv Panoptix™ PS22-IF Ice Fishing Bundle
Model: 010-02684-30- ECHOMAP™ UHD2 7" TOUCHSCREEN WITH KEYED ASSIST
- PANOPTIX SONAR WITH TWO MODES
- POLE MOUNT-FREE DESIGN
- GARMIN NAVIONICS+™ U.S. INLAND MAPPING ON 23,000+ LAKES
- GLOVE-FRIENDLY PORTABLE BAG
The ultraportable Panoptix PS22-IF ice fishing kit provides two live sonar modes and a pole mount-free design, so you can move faster between holes to find more fish.
The bundle includes a 7" ECHOMAP UHD2 chartplotter with touchscreen, keyed assist and two types of sonar: LiveVü™ Forward and LiveVü™ Down modes.
The Panoptix PS22-IF transducer doesn’t require a pole mount. The bracket design allows for easy Forward and Down mode adjustments, while the rotator controls direction and depth.
Get exceptional detail on more than 23,000 U.S. lakes with an included 1-year subscription to access daily map updates.
Easily create custom pages that combine sonar and mapping on your display.
Easily change between wide and narrow beams to focus on areas of interest with the removable transducer lens.
The rugged, glove-friendly carrying case lets you easily transport your entire bundle from hole to hole.
Specifications| General | |
| Dimension | 10.5"" 9.5"" 10.5"" (26.7 22.9 26.7 cm) |
| Weight | 12.2 lbs (5.5 kg) |
| Water rating | IPX7 |
| Touchscreen | Yes |
| Display Type | WVGA, TN |
| Display Size | 6.1"" x 3.4"", 7.0"" (15.5 x 8.7, 17.8 cm) |
| Display resolution | 800 x 480 pixels |
| Input | Touchscreen with Keyed Assist |
| Maps & Memory | |
| Accepts Data Cards | 1 microSD™ card; 32 GB maximum size |
| Waypoints | 5000 |
| Track points | 50,000 |
| Tracks | 50 saved tracks |
| Navigation Routes | 100 |
| Ice Fishing Details | |
| Battery type, size | SLA, 7Ah |
| Bag size | Small |
| Included transducer | PS22-IF |
| Transducer holding feature | Pole-free transducer rotation system |
| Sensors | |
| GPS | Yes |
| GLONASS | Yes |
| Galileo | Yes |
| BeiDou | Yes |
| Has built-in receiver | Yes |
| Receiver | 10 hz |
| NMEA 2000 Compatible | Yes |
| Supports WAAS | Yes |
| Supports multi-band, multi-constellation GPS | Yes |
| Built-in Maps | Mapping: Garmin Navionics+ for U.S. inland |
| Built-in Auto Guidance+ | yes (downloadable via ActiveCaptain app) |
| Garmin Navionics+ Inland & Coastal | yes (see Additional) |
| Garmin Navionics+ (Inland) | yes (see Additional) |
| Optional Map Support | |
| Garmin Navionics+™ | Yes |
| Garmin Navionics Vision+™ | Yes |
| TOPO 100K | Yes |
| Standard Mapping | Yes |
| Garmin Quickdraw Contours | Yes |
| Chartplotter Features | |
| ActiveCaptain® compatible | Yes |
| Electrical Features | |
| Power Input | 9 to 18 Vdc |
| Sonar Features | |
| Displays sonar | yes |
| Power output | 500 W |
| Traditional sonar (dual frequency/beam) | built-in (single channel CHIRP, 50/77/83/200 kHz, L, M, H CHIRP) |
| ClearVü | built-in 260/455/800/1000/1200 kHz |
| SideVü | built-in 260/455/800/1000/1200 kHz |
| Panoptix™ sonar | yes |
| LiveScope | yes |
| Connections | |
| NMEA 2000® ports | yes |
| Garmin Marine Network Ports | 1 |
| 12-pin transducer ports | 1 |
| BLUETOOTH® pairing | yes |
| ANT+ (Connectivity) | yes |
| Garmin Wi-Fi network (local connection) | yes |
What's in the Box:
- ECHOMAP UHD2 73sv with keyed assist chartplotter
- Mapping: Garmin Navionics+ for U.S. inland
- Panoptix PS22-IF transducer
- Transducer rotator
- Transducer bracket
- PS22-IF removable lens
- Rechargeable battery
- Charger
- Small bag, base and handle
- Power cable
- Foam float
- Hardware
- Documentation
