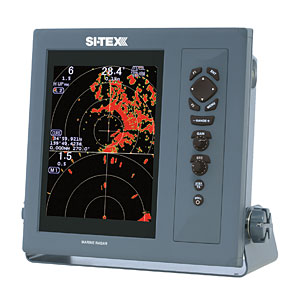

Sitex T2060A 10.4 Color Radar With 6Kw 4.5' Open Array

Truck Freight Shipment ($299)

SKU: 1002980 - UPC: 010407320854
$2,839.99 $7,999.00 ( / )

We are sorry, this product sold out!

Si-Tex T2060A-4 10.4"" Display 6kW Open Array Radar with 4.5' AntennaModel: T2060A-4 Dual-Speed antenna with 48-rpm capability for high speed/river operations Split-screen display of long- and short-range targets simultaneously True-Trail Function identifies moving targets Features include Interference Rejection, Target Expansion, Parallel Index, True/Relative Bearing Standard AIS Interface module capable of...
Same Day

Shipping (3PM)

Free Returns

Within 30 days

Sitex T2060A 10.4 Color Radar With 6Kw 4.5' Open Array Product Description

Si-Tex T2060A-4 10.4"" Display 6kW Open Array Radar with 4.5' Antenna

Model: T2060A-4
  • Dual-Speed antenna with 48-rpm capability for high speed/river operations
  • Split-screen display of long- and short-range targets simultaneously
  • True-Trail Function identifies moving targets
  • Features include Interference Rejection, Target Expansion, Parallel Index, True/Relative Bearing
  • Standard AIS Interface module capable of tracking 200 targets*****
  • Optional 50-target Automatic Tracking Aid (ATA).
Specifications
Scanner 4.5' Open Array
Peak Power Output 6kW
Output Frequency 9410 +/- 30MHz
Beam Width 1.8° Horzontal, 22° Vertical
Rotation 24 or 48 RPM
Pulse width .08, 0.15, 0.3, 0.5, 1 usec
IF Frequency 60MHz
Range Accuracy Better than 8m or 1% of range scale selected, whichever is greaer
Minimum Detecting Distance 25m
Display Unit
Size/Type 10.4"" TFT Color LCD
Resolution 480 x 640
Display modes Heads up, North up*, Course Up*, WPT up**
Dimensions 12 19/32"" x12 19/32"" x 5 39/64""
Power 10.8 - 31.2vDC
Power Consumption 110 watts or less
*Requires heading, speed, and/or position signal input from external equipment including GPS Compass depending on application of user.
**Requires waypoint data input.

What's in the Box:
  • MRD-104 Display
  • RB717A - Pedestal 6kW
  • RW701A-04 - 4.5' Antenna
  • 242J159098A ?15M Cable
  • DC Power Cable
  • Quick Reference guide
  • Operation manual


Save $5159 when you buy the Sitex T2060A 10.4 Color Radar With 6Kw 4.5' Open Array for only $2839 from NVN Marine! Same day shipping before 3pm.

Sitex T2060A 10.4 Color Radar With 6Kw 4.5' Open Array Technical Specifications

Type:

Marine Navigation & Instruments | Radars

Vendor:

SI-TEX

Weight:

70.0 lb
