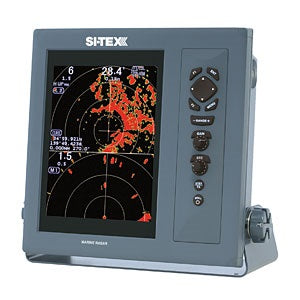

Sitex T2040A 10.4 Color Radar With 4Kw 4.5' Open Array
Free Ground Shipping (2-6 Days Delivery Time)
SKU: 1002978 - UPC: 010407320830 - MPN: T-2040A-4
$5,727.99
$6,999.00
( / )
Si-Tex T2040A-4 10.4"" Display 4kW Open Array Radar with 4.5' AntennaModel: T2040A-4 Dual-Speed antenna with 48-rpm capability for high speed/river operations Split-screen display of long- and short-range targets simultaneously True-Trail Function identifies moving targets Features include Interference Rejection, Target Expansion, Parallel Index, True/Relative Bearing Standard AIS Interface module capable of...
Same Day
Shipping (3PM)
Free Returns
Within 30 days
Sitex T2040A 10.4 Color Radar With 4Kw 4.5' Open Array Product Description
Si-Tex T2040A-4 10.4"" Display 4kW Open Array Radar with 4.5' Antenna
Model: T2040A-4- Dual-Speed antenna with 48-rpm capability for high speed/river operations
- Split-screen display of long- and short-range targets simultaneously
- True-Trail Function identifies moving targets
- Features include Interference Rejection, Target Expansion, Parallel Index, True/Relative Bearing
- Standard AIS Interface module capable of tracking 200 targets*****
- Optional 50-target Automatic Tracking Aid (ATA).
| Scanner | 4.5' Open Array |
| Peak Power Output | 4kW |
| Output Frequency | 9410 +/- 30MHz |
| Beam Width | 1.8° Horzontal, 22° Vertical |
| Rotation | 24 or 48 RPM |
| Pulse width | .08, 0.15, 0.3, 0.5, 1 usec |
| IF Frequency | 60MHz |
| Range Accuracy | Better than 8m or 1% of range scale selected, whichever is greaer |
| Minimum Detecting Distance | 25m |
| Display Unit | |
| Size/Type | 10.4"" TFT Color LCD |
| Resolution | 480 x 640 |
| Display modes | Heads up, North up*, Course Up*, WPT up** |
| Dimensions | 12 19/32"" x12 19/32"" x 5 39/64"" |
| Power | 10.8 - 31.2vDC |
| Power Consumption | 80 watts or less |
| *Requires heading, speed, and/or position signal input from external equipment including GPS Compass depending on application of user. | |
| **Requires waypoint data input. | |
What's in the Box:
- MRD-104 Display
- RB716A - Pedestal 4kW
- RW701A-04 - 4.5' Antenna
- 242J159098A ?10M Cable
- DC Power Cable
- Quick Reference guide
- Operation manual
Save $1271 when you buy the Sitex T2040A 10.4 Color Radar With 4Kw 4.5' Open Array for only $5727 from NVN Marine! Same day free shipping before 3pm.
