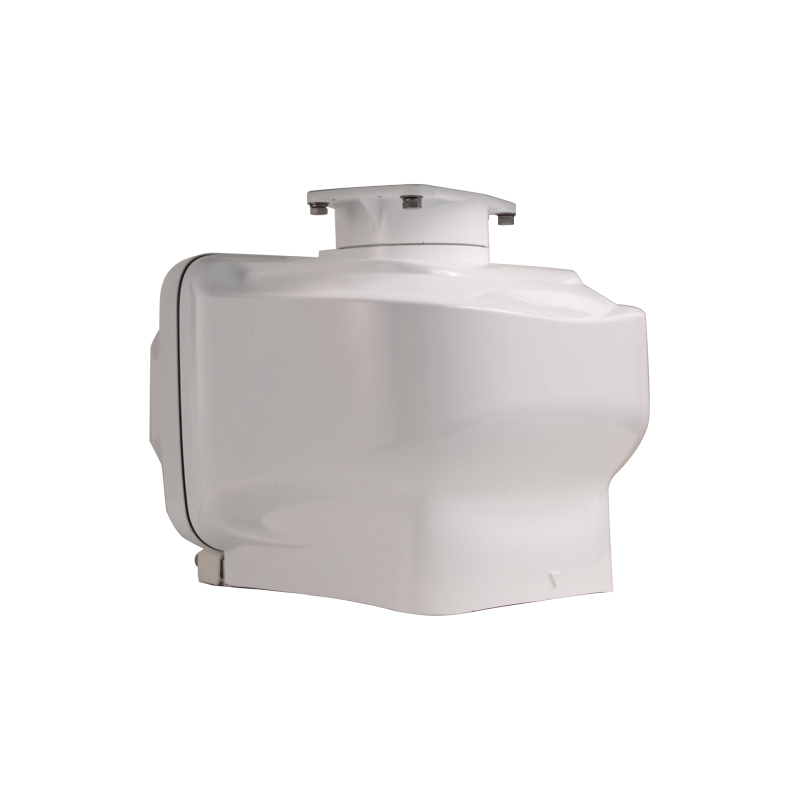

Furuno RSB134-113 12Kw Gearbox For DRS12AX Open Array System

Furuno RSB134-113 12Kw Gearbox For DRS12AX Open Array System Product Description

For over 70 years, Furuno has been continuously imagining and creating new solutions, making new marine electronic equipment with the goal of offering both performance and simplicity for everyone. Not only for men and women who make a living on the seas, but also for those who simply want to enjoy the boating lifestyle. For them, Furuno has become synonymous with quality, performance, and reliability.

Furuno RSB134113 Attributes

• Compatibility: DRS12AX Radar Antenna
• Rotation Speed: 48 RPM
• Power Consumption: 12 Kilo Watt
• Color: White

Furuno RSB134113 Features & Benefits

• For Use With Radar Antenna
• High-Performance Products Proven In The Harshest Of Environments
• Offering Quality Design
• Easy To Install
• Limited 2 Year Warranty

Furuno RSB134-113 Gear Box Only for DRS12AX

Model: RSB134113

• 12kW Power Output
• Enhanced target detection, both short and long range
• Minimum detection range of just 20 m
• Fast Target Tracking™
• Bird Mode
• New pedestal unit 20% lighter than previous unit, updated with new, low noise motor
• No PSU required, decreasing total costs
• Easy installation without the need to open pedestal unit
• New smart-connector cable
• Compatible with NavNet TZtouch and NavNet TZtouch2 (not compatible with NavNet 3D or earlier NavNet models)
• The DRS12AX is a 24V system; a converter will be required for use with 12V power systems

Pushing the boundaries of what is possible with conventional Radar technology, DRS12AX "X-Class" marks yet another leap forward for FURUNO. Improved in almost all aspects, DRS12AX "X-Class" Radar features improved short range detection, as well as an impressive long range detection of up to 96 nautical miles.

The newly redesigned pedestal unit is 20% lighter than previous models and features an updated motor for significantly lower noise levels. Combined with an updated smart-connector cable, installation and maintenance is simpler than ever before.

Fast Target Tracking™ function adopted from our commercial Radar FAR3000, is also available on the DRS12AX "X-Class." Target course and speed vectors are displayed instantly with the press of a button. Target vectors increase situational awareness and can increase overall safety on your vessel.

Specifications

Input Voltage	24vDC
Antenna Options	4 and 6 foot sold separately
Horizontal Beam	1.9° with 4' Antenna 1.4° with 6'
Verticle Beam	22°
Maximum range	96nm
Dual RangeScanning	Yes

What's in the Box:

• Scanner Unit
• Fuse ATV10A60V
• Corrosion-proof pad x 4
• Hex Nut M12 x 8
• Spring Washer M12 x 4
• Flat Washer M12 x 4
• Hex Stud M12x70 x 4
• Installation Manual
• Mounting Template
• Environmental Data Sheet

The FURUNO RSB134-113 12Kw gearbox for the DRS12AX open array system is brand new. The new base unit of the bird mode is 20% lighter than the previous unit, and a new low-noise motor is updated, no PSU is required, which reduces the total cost, and can be easily installed without opening the base unit. The new smart connector cable is compatible with NavNet TZtouch and NavNet TZtouch2 (not compatible) NavNet 3D or earlier NavNet models) DRS12AX is a 24V system; when used with a 12V power supply system, a converter will be required. Breaking through the limits of traditional radar technology, the DRS12AX "X-Class" marks another leap for Furuno. The DRS12AX "X-Class" radar has been improved in almost all aspects, its short-range detection function has been improved, and it can perform excellent long-range detection up to 96 nautical miles. The newly designed base unit is better than the previous model It is 20% lighter and has an updated motor that can significantly reduce the noise level. Combined with the updated smart connector cable, installation and maintenance are easier than ever. DRS12AX "X-Class" also provides the commercial radar FAR3000 used Function. Press the button to immediately display the target heading and speed vector. The target vector can improve situational awareness and can improve the overall safety of the ship. Specifications input voltage 24vDC antenna options 4 and 6 feet are sold separately with horizontal beams of 1.9° and 4'antenna 1.4° and 6'vertical beam 22° maximum range 96nm dual range scanning is the item in the box: scanner unit fuse ATV10A60V anti-corrosion pad x 4 hexagon nut M12 x 8 spring washer M12 x 4 flat washer M12 x 4 Hexagon Stud M12x70 x 4 Installation Manual Installation Template Environmental Data Sheet



Save $2340 when you buy the Furuno RSB134-113 12Kw Gearbox For DRS12AX Open Array System for only $2589 from NVN Marine! Same day fast and free shipping before 3pm.
