Garmin LiveScope™ Ice Fishing Bundle LI
Free Ground Shipping (2-6 Days Delivery Time)
Garmin LiveScope™ Ice Fishing Bundle LI Product Description

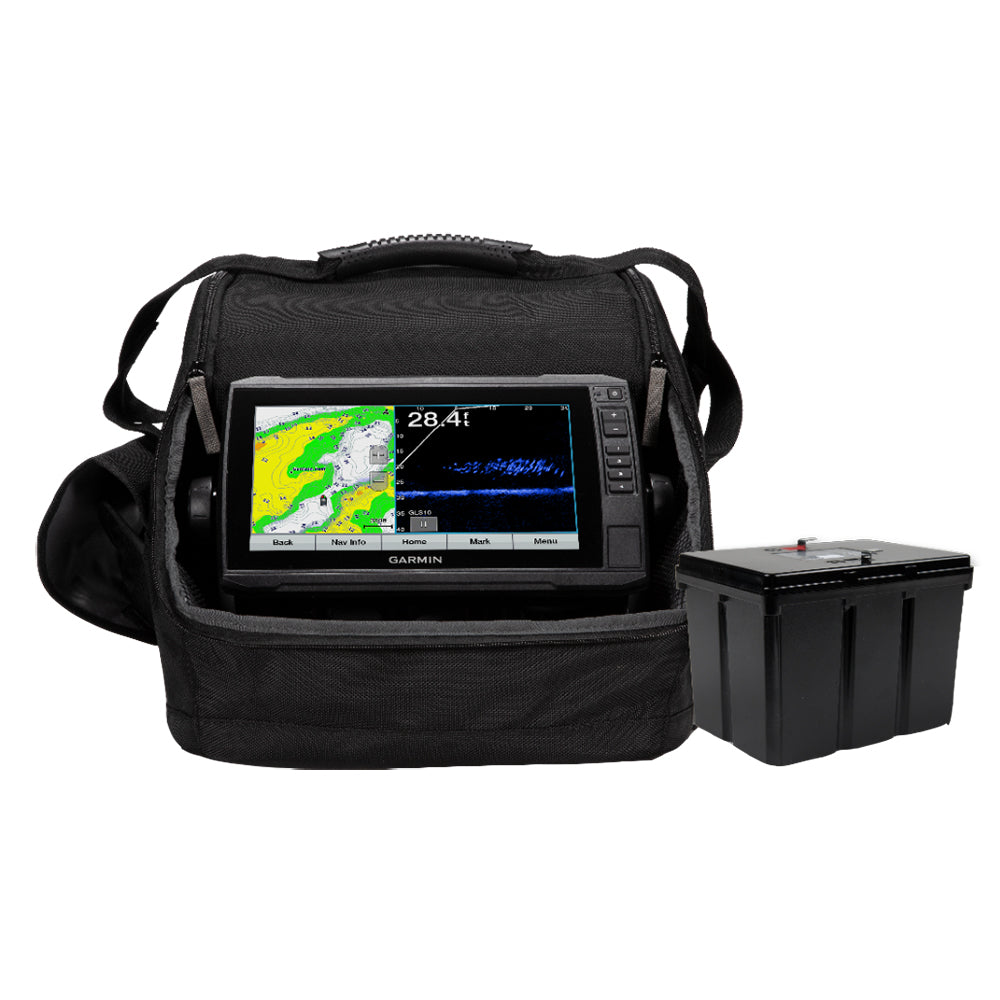

LiveScope™ Ice Fishing Bundle LI
*Includes ECHOMAP™ UHD 93sv and Li-ion Battery
A PREMIUM FISHING EXPERIENCE
Drill fewer holes and catch more fish with the LiveScope Ice Fishing Bundle LI, which includes an ECHOMAP™ UHD 93sv combo, Panoptix LiveScope™ sonar transducer, and lightweight lithium battery.
- Hit your limit with the power of Panoptix Livescope, with 2 sonar modes.
- If it’s out there, you’ll know. Real-time sonar lets you see up to 200’ in any direction.
- Only drill where there’s fish when you use LiveScope™ Forward sonar.
- Keep an eye on your jig and what it attracts with LiveScope™ Down sonar.
- Only the fish will weigh you down. This bundle comes with a lightweight lithium battery.
- Everything goes where you go. All accessories fit in the portable carrying case.
ECHOMAP™ UHD
Revolutionary real-time sonar pairs with a large ECHOMAP UHD 93sv combo touchscreen display, allowing you to see up to 200’ in any direction.
TWO MODES, ONE TRANSDUCER
Adapt your fishing technique with a Panoptix LiveScope system, which offers 2 scanning sonar modes. The bundle also includes a lithium battery, charger, and swivel pole mount.
LIVESCOPE FORWARD
LiveScope Forward sonar shows up to 200’ all around you and below the ice, so you can locate schools of fish and know where to drill the next hole.
LIVESCOPE DOWN
LiveScope Down sonar shows moving sonar images of what is below the ice, so you can watch fish respond to your jig.
LAKEVÜ G3 MAPS
The unit comes preloaded with LakeVü g3 maps with integrated Navionics® data, covering more than 18,000 lakes in the U.S.
BUILT-IN FLASHER
The built-in flasher provides accurate jig and fish detection as they swim into the sonar beam.
CUSTOM COMBOS
You can create custom pages that combine Panoptix™ sonar, flasher, and map on your display.
LITHIUM BATTERY
Fish even longer with a lightweight lithium battery that won’t weigh you down on the ice.
CARRYING CASE
Where you take your bundle is up to you. But the rugged, portable carrying case lets you easily transport it from hole to hole and season to season.
WARNING: This product can expose you to chemicals including LEAD which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
Garmin LiveScope™ Ice Fishing Bundle LI Includes ECHOMAP™ UHD 93sv and Li-ion Battery
Model: 010-02342-20- Hit your limit with the power of Panoptix Livescope, with 2 sonar modes.
- If it’s out there, you’ll know. Real-time sonar lets you see up to 200’ in any direction.
- Only drill where there’s fish when you use LiveScope™ Forward sonar.
- Keep an eye on your jig and what it attracts with LiveScope™ Down sonar.
- Only the fish will weigh you down. This bundle comes with a lightweight lithium battery.
- Everything goes where you go. All accessories fit in the portable carrying case.
Revolutionary real-time sonar pairs with a large ECHOMAP UHD 93sv combo touchscreen display, allowing you to see up to 200’ in any direction.
Adapt your fishing technique with a Panoptix LiveScope system, which offers 2 scanning sonar modes. The bundle also includes a lithium battery, charger and swivel pole mount.
LiveScope Forward sonar shows up to 200’ all around you and below the ice, so you can locate schools of fish and know where to drill the next hole.
LiveScope Down sonar shows moving sonar images of what is below the ice, so you can watch fish respond to your jig.
The unit comes preloaded with LakeVü g3 maps with integrated Navionics® data, covering more than 18,000 lakes in the U.S.
The built-in flasher provides accurate jig and fish detection as they swim into the sonar beam.
You can create custom pages that combine Panoptix™ sonar, flasher and map on your display.
Fish even longer with a lightweight lithium battery that won’t weigh you down on the ice.
Where you take your bundle is up to you. But the rugged, portable carrying case lets you easily transport it from hole to hole and season to season.
SpecificationsGeneral | |
PHYSICAL DIMENSIONS | 13.8" 12.2" 13.0" (35 31 33 cm) |
DISPLAY SIZE | 7.8" x 4.8"; 9" diagonal (19.9 x 11.3 cm; 22.9 cm diagonal) |
DISPLAY RESOLUTION | 800 x 480 pixels |
DISPLAY TYPE | WVGA display |
WEIGHT | 19.4 lb (8.8 kg) |
WATER RATING | IPX7 |
POWER CONSUMPTION | 6.2 W |
ANTENNA | Internal or external over NMEA 2000 |
TRANSMIT POWER | 500 W |
RECEIVER | 5 Hz |
GARMIN MARINE NETWORK™ PORTS | 1 Panoptix™ port |
Maps & Memory | |
PRELOADED MAPS | LakeVü g3 (inland maps) |
ACCEPTS DATA CARDS | 1 microSD™ card; 32 GB maximum card size |
WAYPOINTS | 5,000 |
TRACK LOG | 50,000 points; 50 saved tracks |
ROUTES | 100 |
Outdoor Recreation | |
TIDE TABLES | Yes |
Chartplotter Features | |
GARMIN SONAR COMPATIBLE | Yes |
Sonar Features & Specifications | |
FREQUENCIES SUPPORTED | 530 - 1,100 kHz |
MAXIMUM DEPTH | Down and Forward: 200’ (61.0 m) |
BOTTOM LOCK (SHOWS RETURN FROM THE BOTTOM UP) | Yes |
WATER TEMPERATURE LOG AND GRAPH | Yes |
SONAR RECORDING | Yes |
SONAR HISTORY REWIND | Yes |
Connections | |
NMEA 2000® COMPATIBLE | Yes |
TRANSDUCER PIN NUMBERS | 21-pin |
NMEA 0183 INPUT PORTS | 1 |
NMEA 0183 OUTPUT PORTS | 1 |
WIRELESS CONNECTIVITY | yes |
Additional | |
Bag size | Extra Large (XL) |
Battery | 3.4 lbs (weight); 11.4 hrs (runtime (0°C 100% backlight) |
What's in the Box:
- ECHOMAP™ UHD 93sv chartplotter
- Panoptix™ LiveScope System
- Panoptix ice fishing mount
- Tilt/swivel mount
- Power cable
- Documentation
- Bag with handle
- Lithium-ion battery
- Battery charger
