By the NVN Marine Expert Team — Our team has spent 10+ years on the water installing, testing, and troubleshooting marine electronics from the Gulf Coast to the Great Lakes. We're authorized resellers for every brand we review, and we only recommend gear we'd trust on our own boats.
A fixed-mount VHF is the one piece of electronics on your boat that exists purely to save your life. Everything else — the chartplotter, the fish finder, the stereo — makes a day on the water better. The VHF is what gets the Coast Guard to your position when the bilge pump quits 14 miles out and your phone has one bar that just dropped to none.
So it's worth installing it right. The good news: a marine VHF radio install is one of the most approachable electronics jobs on a boat. If you can run a wire, crimp a connector, and follow a coax cable from the helm to the hardtop, you can do this in an afternoon. We've done dozens of these, from 17-foot center consoles to 42-foot sportfishers, and the process barely changes. The boat gets bigger, the cable run gets longer, that's about it.

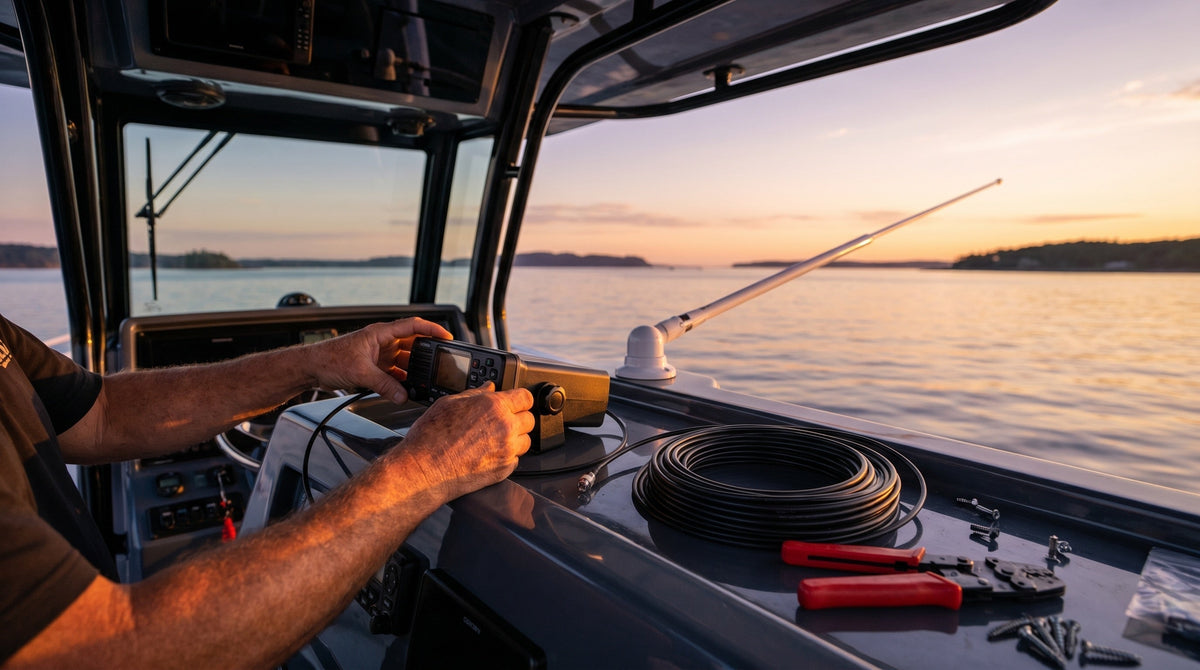

This guide walks you through how to install a marine VHF radio start to finish — mounting the radio, running power, installing the antenna, wiring the coax, and the GPS and DSC steps almost everyone skips. We'll flag the mistakes that send people back to the dock with a radio that keys up but can't reach anybody.
Before You Touch a Screwdriver: What You're Working With
A VHF install has four parts that all have to work together: the radio (the head unit at your helm), the antenna (almost always the tallest thing on your boat), the coax cable connecting them, and a 12V power feed. Get any one of those wrong and your range collapses.
Here's the part nobody tells first-timers. The radio is the least important variable for how far you'll transmit. VHF is line-of-sight communication. Range is governed by antenna height and antenna quality far more than by which radio you bolt to the helm. A $120 radio on an 8-foot antenna mounted high will out-talk a $600 radio on a stubby 3-foot antenna every single time. Spend your money on the antenna and the mounting height. We mean that.
For the radio itself, most boaters land on one of a few solid choices. The Garmin VHF 115 Marine Radio is a clean, no-drama 25-watt Class D DSC unit that runs around $359 in 2026 and installs in 20 minutes. Step up to the Garmin VHF 215 (about $439) if you want a louder hailer and a bigger mic. If you want the radio to also show AIS targets and stream to your phone, the Icom M510 PLUS VHF Marine Radio w/AIS is the slick one, around $799, and yes, we'll cover the extra wiring it needs. For sailors who want the radio and a Class B AIS transponder in one box, the Simrad RS40-B (roughly $1,271) or the B&G V60 are hard to beat.
Whatever you choose, the install steps below apply. Let's get into it.
Tools and Parts You'll Need
You don't need a marine electronics certification for this. You need:
- A drill with bits sized for your mounting screws, and a hole saw if you're flush-mounting
- A quality crimper and an assortment of heat-shrink ring and butt connectors
- Adhesive-lined heat shrink (the kind with glue inside — regular shrink tube lets water wick in)
- A 5–10 amp inline fuse holder, if your radio doesn't ship with a fused power lead
- Marine-grade tinned wire, 14 AWG for most power runs under 15 feet
- Self-amalgamating tape for waterproofing the coax connection at the antenna base
- A multimeter to confirm voltage and polarity
A note on wire: use tinned marine wire, not the copper automotive stuff from the hardware store. Untinned copper in a salt environment turns green and brittle inside of two seasons. We've pulled apart enough corroded connections to be religious about this.
Step 1: Pick the Radio Mounting Location
Your radio needs to live somewhere you can reach the mic without leaning out of the helm seat, somewhere you can read the screen in daylight, and somewhere reasonably protected from green water and direct spray. On a center console, that's usually under the hardtop or in the dash. On a cuddy or express, the overhead or the dash face works.
Two clearances people forget. First, the back of the radio needs room for the power cable, the coax connector, and on GPS-equipped units the antenna or NMEA wiring, without kinking anything. Bracket-mount radios stick out a few inches behind the mounting surface; flush-mount units need real depth behind the dash. Measure before you cut. Second, keep the radio at least a few feet from your compass — the speaker magnet will pull a magnetic compass off true. We've seen a guy chase a 15-degree compass error for a season before realizing his new VHF was the culprit.
If you're flush-mounting, make your template cut slightly undersized and file to fit. You can always remove more material. You can't put fiberglass back.
Step 2: Run and Connect Power
Marine VHF radios run on 12V DC and pull surprisingly little — around 5 to 6 amps at full 25-watt transmit, a fraction of an amp on receive. A 5 to 10 amp fuse is plenty. Most radios ship with a power harness with a red (positive) and black (negative) lead, often with the fuse already inline.
Run the positive lead to a switched power source — ideally a dedicated breaker or fused position on your panel, so the radio comes alive when you turn the boat's electronics on and you don't drain the battery at the dock. Run the negative to a clean ground bus. Don't ground a VHF to the engine block or a random screw in the bilge; you'll pick up alternator whine that comes through as a buzz on every transmission.
Strip, crimp with heat-shrink ring terminals, and shrink them down until the adhesive squeezes out the ends — that squeeze-out is your waterproof seal. Confirm polarity with the multimeter before you power up. Reversed polarity will, on a lot of radios, instantly cook the unit, and that's not a warranty claim.
Power it on. You should get a startup screen. If you don't, check the fuse first. Nine times out of ten it's the fuse or a loose ground.
Step 3: Choose and Mount the Antenna
This is where range is won or lost. For a powerboat, an 8-foot, 6 dB fiberglass antenna is the sweet spot — enough gain to reach 20-plus nautical miles boat-to-shore under good conditions, but not so much that the signal pattern goes flat and drops out when you roll in a beam sea. Sailboats are the exception: a masthead antenna is short and low-gain (3 dB) on purpose, because the mast already puts it 40-plus feet up, and a high-gain antenna on a heeling boat would spray its signal into the water and the sky instead of at the horizon.
Mount the antenna as high as practical and as vertical as you can get it. Height beats gain. An antenna at the top of a hardtop or a tower will reach farther than a taller antenna mounted low on the gunwale. Use a ratchet mount or a proper rail/deck mount rated for the antenna's length, and back it with a solid surface — a thin, unsupported fiberglass top will flex and crack around the base over a season of pounding.
Keep the antenna well clear of other antennas (GPS, cell, Wi-Fi) by at least a few feet to avoid interference, and don't bundle the VHF coax tightly alongside power cables for long parallel runs.
Step 4: Run the Coax and Make the Connection
The coax that comes attached to most antennas is RG-58, which is fine for runs under about 20 feet. For longer runs — a tower install, a big sportfisher — step up to RG-8X or RG-213 to cut signal loss, because thin coax bleeds away transmit power over distance and that directly shortens your range.
Route the coax along existing wire runs where you can, avoiding sharp bends (a kinked coax changes its impedance and reflects power back at the radio). Most antennas terminate in a PL-259 connector that threads onto the SO-239 jack on the back of the radio. If you have to cut and re-terminate the coax to fish it through a tight rigging tube, solder the new PL-259 rather than relying on a crimp-only connector — a cold or corroded coax connection is the number one cause of "my radio worked last year and now nobody hears me."
Here's the step everyone skips and regrets: waterproof the antenna-base connection. Even an inch off the deck, that junction gets soaked. Wrap it with self-amalgamating tape, then a layer of good electrical tape over that. Water in the coax is a slow killer — it raises VSWR, drops your range a little more each month, and you won't notice until you really need the radio.
Step 5: GPS and DSC — Don't Skip This
A modern VHF is a Class D DSC radio, and DSC (Digital Selective Calling) is the feature that turns a distress call from "Mayday, mayday, this is a white boat somewhere off Montauk" into a single button press that broadcasts your identity and exact GPS coordinates to every DSC radio and the Coast Guard in range. We wrote a whole piece on why this matters — DSC on Marine VHF Radios Explained — but the short version is that DSC only works if you do two things at install time.
First, the radio needs a GPS position. Units like the Garmin VHF 215, the Simrad RS20S, and the Icom M510 have an internal GPS — just give the antenna a clear view of the sky and you're done. Older or budget radios need a GPS feed over NMEA 0183 or NMEA 2000 from your chartplotter. If your radio shows "GPS" blinking or "no position," it isn't getting a fix, and your DSC distress button will broadcast an alert with no location attached. That's a half-working safety system.
Second — and this one gets ignored constantly — you have to program your MMSI number. An MMSI is a nine-digit ID unique to your boat, free for recreational US boaters through BoutUS or the Power Squadrons. You enter it into the radio once. Most radios only let you enter it two or three times before locking, by design, so type carefully. Without an MMSI programmed, the DSC distress button is dead weight. We've taken in radios for "warranty" that turned out to be brand-new units where the owner never programmed the MMSI and assumed the distress feature was broken.
Step 6: Test Before You Trust It
Power up, confirm GPS lock, and do a radio check. Don't do a radio check on Channel 16 — that's the hailing and distress channel and the Coast Guard would rather you didn't clutter it. Use Channel 9, or better, an automated radio check service like Sea Tow's free service on the published channels for your area. You want to hear someone confirm they're receiving you loud and clear.
If you can transmit but your range is terrible, the usual suspects in order: a bad coax connection at the antenna, water in the coax, a too-short or damaged antenna, or a poor ground. If the radio won't transmit at all, check the antenna is actually connected — many radios fold transmit power way back or shut down to protect themselves when they see a high VSWR from a disconnected or shorted antenna.
The Bottom Line
A marine VHF install rewards patience in exactly two places: the antenna connection and the DSC setup. Rush the coax termination and you'll have a radio that slowly goes deaf over a season. Skip the MMSI and you've installed a safety radio with the safety part switched off. Everything else is just running wire neatly and not grounding to the engine block.
If you're still choosing a radio before you wire it in, start with our Best Marine VHF Radios of 2026 guide — it breaks down fixed-mount versus handheld and which features actually earn their price. And if you want the radio to double as an AIS display so you can see the freighter before it sees you, the Icom M510 PLUS or the B&G V60-B are the two we install most often.
👉 Shop All Marine VHF Radios at NVN Marine →
Frequently Asked Questions
How long does it take to install a marine VHF radio?
For a typical center console or express cruiser with a reasonable cable run, plan on two to four hours the first time. The radio mounting and power wiring take maybe an hour. The antenna mount and coax run are the variable — a clean run takes 30 minutes, while fishing coax through a hardtop or tower can eat an afternoon. Programming the MMSI and confirming GPS lock is another 15 minutes.
Do I need to drill into my boat to mount the antenna?
Usually yes, for the mount base. A ratchet or rail mount needs through-bolts or screws into a solid surface, and you'll want backing for it. If you absolutely can't drill, there are rail-clamp mounts that require no holes — but a permanently bolted mount is far more secure for an 8-foot antenna taking wind load at speed.
What size antenna should I get for my boat?
For most powerboats, an 8-foot 6 dB fiberglass antenna is the right call. Smaller boats with limited mounting height can run a 4-foot 3 dB antenna. Sailboats use a short 3 dB masthead antenna because the mast already provides the height, and a high-gain antenna would perform poorly when the boat heels.
Why is my VHF range so short after installing it?
The most common cause is the coax connection at the antenna base — either a poorly terminated PL-259 connector or water that got into the cable. Other culprits are an antenna that's too short or mounted too low, or a bad ground at the radio. Range is line-of-sight, so antenna height and a clean coax connection matter far more than the radio itself.
What is an MMSI number and do I really need one?
An MMSI is a nine-digit number unique to your boat that your DSC radio transmits during a distress call so the Coast Guard knows exactly who's calling and where you are. US recreational boaters can get one free through BoatUS or the US Power Squadrons. Without it programmed into the radio, the one-button DSC distress feature won't work — so yes, you need one.
Can I install a marine VHF radio myself or should I hire a pro?
Most boaters can absolutely do it themselves. It's running power, mounting an antenna, and connecting coax — no specialized tools beyond a drill and a crimper. The two spots worth slowing down for are waterproofing the coax connection and programming the MMSI and GPS correctly. If you're flush-mounting into an expensive dash or running coax through a complex tower, paying a rigger for that portion can be money well spent.
