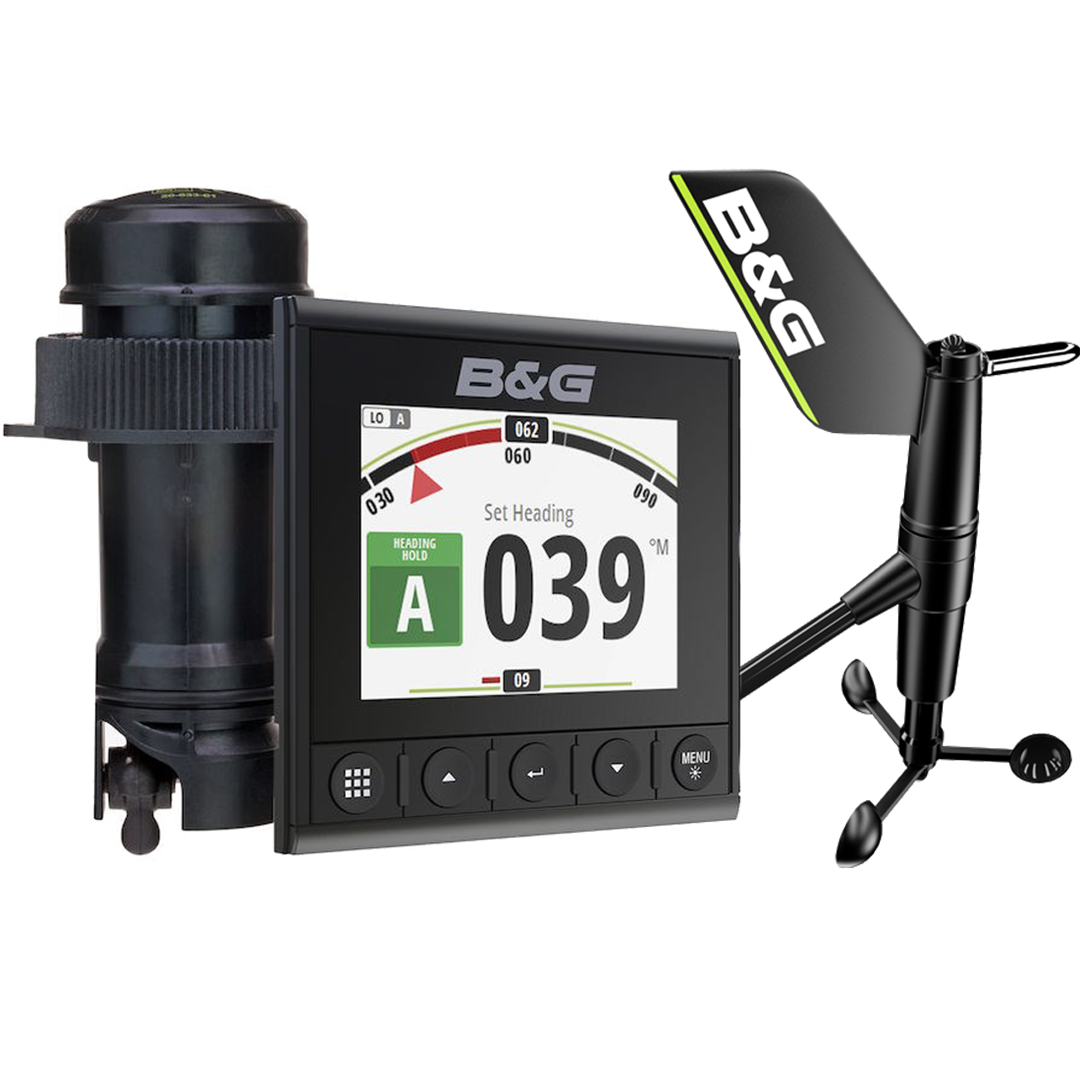

B&G Triton² Speed/Depth/Wind System Pack - Complete Wired Sailing Instrument Package with 4.1" Color Display
Experience precision sailing navigation with B&G's comprehensive Triton² instrument system featuring a full-color display, DST810 smart sensor transducer, and WS310 wired wind sensor for complete marine data monitoring.
Premium Full-Color Sailing Instrument Display
The B&G Triton² Speed/Depth/Wind System Pack delivers professional-grade marine instrumentation with a stunning 4.1-inch full-color display designed specifically for sailing applications. This complete system provides clear visual representation of critical sailing data including speed, depth, wind, heading, AIS targets, GPS information, and autopilot status at a glance.
The optically bonded display technology ensures absolutely zero condensation or fogging, while the advanced transflective LCD provides exceptional contrast and visibility in all lighting conditions - from bright sunlight to nighttime navigation - while consuming significantly less power than traditional backlight-only displays.
Complete Sensor Package for Comprehensive Data
DST810 Smart Sensor Transducer
The included DST810 SmartSensor provides accurate depth, speed through water, and temperature information with built-in attitude sensor compensation for vessel heel. This low-profile plastic thru-hull transducer operates at 235 kHz frequency to prevent interference with other echosounders and can measure:
- Depth: Up to 100 meters with precision accuracy
- Speed: Through-water speeds up to 45 knots
- Temperature: Water temperature monitoring up to +40°C
- Heel Compensation: Automatic attitude correction for accurate readings
The DST810 features Bluetooth connectivity enabling calibration and monitoring through the Airmar CAST app on any smartphone, providing convenient sensor management and diagnostics.
WS310 Wired Wind Sensor
The high-precision WS310 wired wind sensor delivers exceptional wind data accuracy designed for cruising and club racing applications. With improved aerodynamics suitable for all yacht types, the WS310 provides highly accurate wind information in all conditions at every point of sail and heel angle.
Extensively tested through thousands of hours of real-world sailing conditions, the WS310 masthead unit includes a 20-meter (65-foot) connection cable for professional installation on vessels of all sizes.
Advanced Sailing Features and Integration
Dedicated Sailing Functionality
The Triton² system includes unique sailing features including:
- SailSteer: Visual sailing guidance for optimal performance
- WindPlot: Advanced wind data visualization and analysis
- Layline Display: Tactical sailing information for racing
- True/Apparent Wind: Comprehensive wind data calculations
- Velocity Made Good (VMG): Performance optimization data
Professional Autopilot Integration
The Triton² display integrates seamlessly with B&G autopilot systems when combined with an optional Triton² Pilot keypad and NAC-2 or NAC-3 autopilot computer. This creates a complete autopilot control system featuring B&G's sail-specific steering algorithms optimized for sailing performance.
NMEA 2000 Connectivity and System Integration
Certified NMEA 2000 connectivity ensures seamless integration with existing marine electronics systems. The included NMEA 2000 backbone starter kit provides everything needed for professional network installation and expansion.
The flexible Triton² system can function as a standalone instrument display or integrate into wider navigation systems, displaying data from multiple sources including:
- GPS and chartplotter information
- Engine monitoring data
- AIS target information with DSC calling capability*
- Battery voltage and system monitoring
- Compass and heading data
- Time and trip logging information
*Compatible VHF radio required for DSC functionality
Technical Specifications
Triton² Display Unit
- Display Size: 4.1" diagonal, 4:3 aspect ratio
- Display Type: Transflective TFT-LCD, optically bonded
- Resolution: 320 x 240 pixels
- Dimensions: 118 x 115 x 28 mm (4.6" x 4.5" x 1.1")
- Weight: 0.32 kg (0.7 lbs)
- Power Consumption: 1.8W maximum
- Illumination: White LED day mode, RGB or white night mode
- Interface: NMEA 2000 certified connectivity
DST810 SmartSensor Transducer
- Frequency: 235 kHz
- Depth Range: Up to 100 meters
- Speed Range: Up to 45 knots
- Temperature Range: Up to +40°C
- Material: Low-profile plastic thru-hull design
- Cable Length: 2 meters connection cable
- Features: Bluetooth connectivity, attitude sensor
WS310 Wind Sensor
- Type: High-precision wired masthead unit
- Cable Length: 20 meters (65 feet)
- Design: Improved aerodynamics for all yacht types
- Accuracy: Professional-grade wind data precision
- Durability: Marine-grade construction for all conditions
Complete Package Contents
- Triton² Digital Display Unit (000-13294-001)
- DST810 SmartSensor Transducer (000-15735-001)
- WS310 Wired Wind Sensor (000-13714-001)
- WS310/700 20m Mast Cable (000-10757-001)
- NMEA 2000 Backbone Starter Kit (000-10760-001)
- Installation Hardware and Documentation
Professional Installation and Setup
The Triton² system features intuitive operation and easy installation design. The NMEA 2000 backbone starter kit includes all necessary components for network setup, while the optically bonded display and marine-grade sensors ensure reliable performance in all marine environments.
The DST810 transducer's smartphone app calibration capability simplifies sensor setup and ongoing maintenance, while the 20-meter wind sensor cable provides flexibility for masthead installations on vessels of various sizes.
Why Choose B&G Triton² System
B&G's reputation for sailing electronics excellence spans decades, and the Triton² system represents the pinnacle of sailing instrument technology. With its combination of professional-grade sensors, advanced display technology, and sailing-specific features, this system provides the accuracy and reliability demanded by serious sailors.
The comprehensive three-year limited warranty provides confidence in your investment, while the system's modular design allows for future expansion with additional Triton² displays and B&G navigation equipment.
Frequently Asked Questions
What's included in the Triton² Speed/Depth/Wind System Pack?
The complete package includes the Triton² color display unit, DST810 depth/speed/temperature transducer, WS310 wired wind sensor with 20-meter cable, and NMEA 2000 backbone starter kit for immediate installation and operation.
How does the optically bonded display benefit marine use?
Optical bonding eliminates the air gap between the LCD and glass cover, preventing condensation and fogging while improving visibility and durability. The transflective technology provides exceptional contrast in bright sunlight without high power consumption.
Can the Triton² system control an autopilot?
Yes, when combined with an optional Triton² Pilot keypad and NAC-2 or NAC-3 autopilot computer, the system provides full autopilot control with B&G's sail-specific steering algorithms designed for optimal sailing performance.
What makes the DST810 transducer special?
The DST810 is a SmartSensor featuring attitude compensation for heel, Bluetooth connectivity for smartphone calibration via the Airmar CAST app, and 235 kHz operation to avoid interference with other marine electronics.
How accurate is the WS310 wind sensor?
The WS310 provides professional-grade accuracy through extensive real-world testing and improved aerodynamic design. It delivers precise wind data in all conditions at every point of sail and heel angle for both cruising and racing applications.
Is the system compatible with other marine electronics?
Yes, the NMEA 2000 certified system integrates with existing marine networks and can display data from GPS, engines, AIS systems, and other compatible devices. It also works seamlessly with B&G multifunction displays and glass helm systems.
