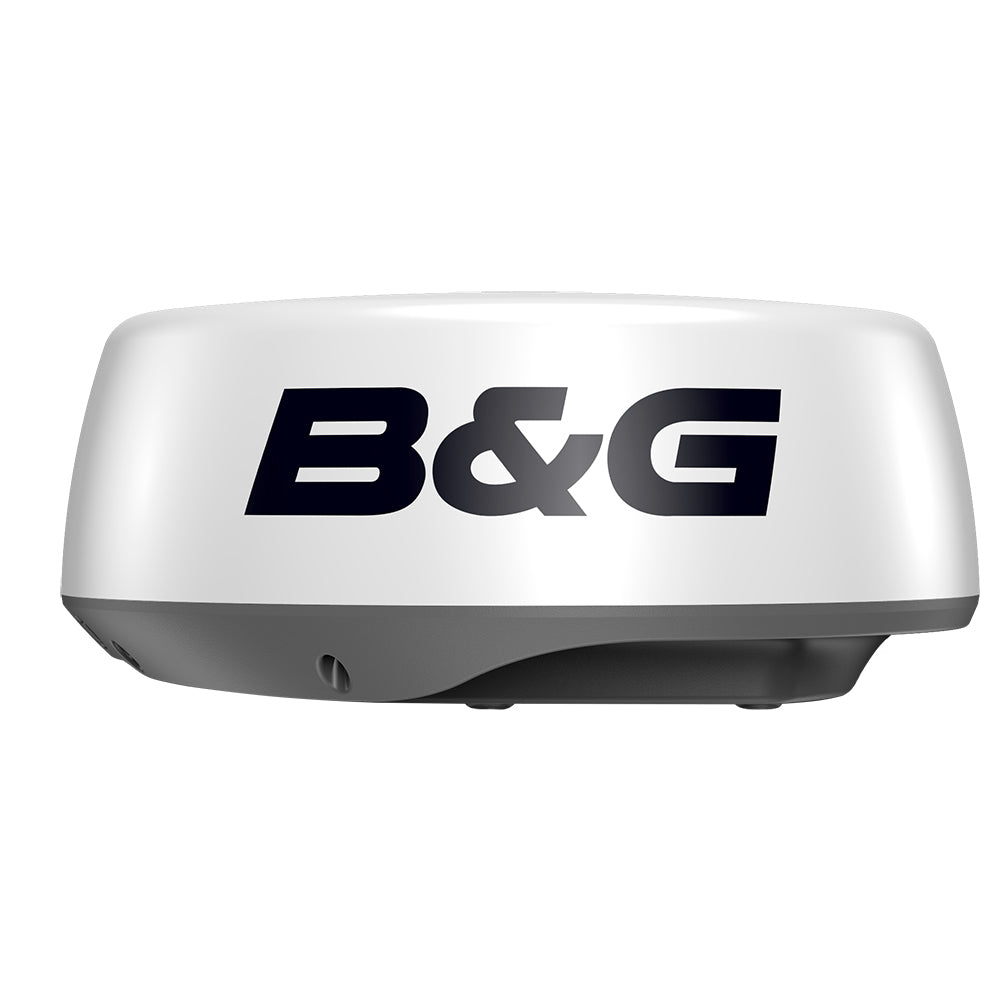

B&G HALO20 20" Radar Dome w/20M Cable

Fast & Free Shipping (1-3 Days Delivery Time)

SKU: 80600 - UPC: 9420024173824 - MPN: 000-14540-001
$1,999.00 $1,999.00 ( / )

Available Stock : 20

The B&G HALO20 20" Radar Dome w/20M is a military grade, fully automatic radar dome designed to be mounted on top of a 20" surveillance camera. This radar dome is capable of detecting objects up to 20M away
B&G
Same Day

Shipping (3PM)

Free Returns

Within 30 days

B&G HALO20 20" Radar Dome w/20M Cable Product Description

B&G Halo20 - Professional 20" Pulse Compression Radar with Advanced Target Tracking

The Ultimate Picture from a Compact Dome

Experience unmatched marine radar performance with the B&G Halo20, a sophisticated 20-inch pulse compression radar that delivers exceptional range and target definition from a remarkably compact dome. Engineered for serious boaters who demand professional-grade collision avoidance and navigation capabilities without compromising deck space or power consumption.

Advanced Pulse Compression Radar Technology

⚡ 10W Pulse Compression Transmitter

Revolutionary pulse compression technology delivers a powerful combination of short and long-range detection capabilities. The 10W transmitter provides exceptional target definition with minimal clutter, ensuring critical contacts are never missed regardless of range or environmental conditions.

? 24 Nautical Mile Detection Range

Extend your situational awareness from the bow of your vessel out to 24 nautical miles with consistent target detection and identification. The compact 20-inch dome delivers performance typically associated with much larger radar arrays.

? Unrivaled Short-Range Performance

Superior close-range detection starting at just 50 meters ensures no blind spots around your vessel. Critical for navigation in crowded harbors, marinas, and congested waterways where collision avoidance is paramount.

Advanced Target Tracking & Collision Avoidance

? MARPA Target Tracking

Monitor up to 10 selected collision hazards simultaneously (20 targets in dual range mode) with Mini Automatic Radar Plotting Aid (MARPA) technology. Track vessel course, speed, and closest point of approach (CPA) for enhanced collision avoidance.

?️ Guard Zone Protection

Establish customizable guard zones around your vessel to automatically alert you to approaching targets. Critical for maintaining safe navigation during watch changes, autopilot operation, or reduced visibility conditions.

?️ Weather Detection Capability

Dedicated weather mode optimizes signal processing to identify precipitation and storm cells, allowing you to navigate around dangerous weather patterns and plan safer routes.

InstantOn Technology & Efficiency

⚡ Instant Wake-Up Performance

Halo20 wakes instantly from low-power standby mode, delivering immediate radar coverage when you need it most. Unlike traditional magnetron radars that require minutes to warm up, the Halo20 provides instant protection.

? Low Power Consumption

Efficient 18W typical power consumption (20W maximum) reduces electrical system load and extends battery life during extended operations. Perfect for smaller vessels with limited power generation capacity.

☢️ Radiation Safe Operation

Advanced pulse compression technology operates at safe radiation levels, allowing crew to work around the antenna during operation without safety concerns or exposure restrictions.

Intelligent Operating Modes

? Harbor Mode

Optimized signal processing for close-range navigation in congested areas. Enhances small target detection while reducing clutter from pilings, buoys, and other harbor infrastructure.

? Offshore Mode

Maximizes long-range performance for open water navigation. Filters sea clutter while maintaining sensitivity to distant vessels and navigation hazards on the horizon.

⛈️ Weather Mode

Specialized processing to detect and display precipitation patterns, squall lines, and weather fronts. Essential for storm avoidance and route planning in changing conditions.

⚙️ Custom Mode

User-configurable settings allow fine-tuning of radar performance for specific vessel types, operating conditions, or personal preferences.

Comprehensive Display & Navigation Options

? Multiple Orientation Modes

  • North Up: Chart-like presentation with north at top
  • Course Up: Your heading always points up
  • Relative Motion: Your vessel remains centered
  • True Motion: Realistic movement display

? Advanced Signal Processing

Sophisticated algorithms automatically adjust gain, sea clutter, and rain clutter suppression based on environmental conditions, ensuring optimal target visibility without manual intervention.

Marine-Grade Construction & Specifications

? IPX6 Waterproof Rating

Sealed construction protects against powerful water jets from any direction, ensuring reliable operation in heavy weather and rough seas. Designed for permanent outdoor installation on any vessel.

? High Wind Resistance

Rated for operation in winds up to 100 knots (51 m/s), the robust construction and balanced antenna design ensure continuous operation even in severe weather conditions.

?️ Wide Temperature Range

Operating temperature range from -25°C to +55°C (-13°F to +130°F) ensures reliable performance from arctic conditions to tropical climates.

Complete Installation Package

What's Included

  • Halo20 Radar Dome: 20" diameter professional radar antenna
  • 20-Meter Cable: Marine-grade interconnection cable (000-14549-001)
  • Ethernet Adapter: Network connection cable (000-14552-001)
  • Mounting Hardware: Complete bolt kit for secure installation
  • Waterproof Boot: Cable entry protection
  • Documentation Pack: Installation and operation manuals

Installation Requirements

  • Clear 360-degree rotation area around mount location
  • Minimum 2-foot clearance above highest point of vessel
  • Stable mounting surface capable of supporting 13 lbs (5.9 kg)
  • 12V or 24V DC electrical system with 5A fusing
  • Compatible B&G multifunction display for operation

Detailed Technical Specifications

Specification Details
Model Number 000-14540-001
Radar Technology 10W Pulse Compression
Dome Size 20 inches (510mm diameter)
Height 8.8 inches (223mm)
Weight 13 lbs (5.9 kg) without cable
Maximum Range 24 nautical miles
Minimum Range 50 meters / 200 feet
Antenna Rotation 24 RPM
Beam Width 4.9° horizontal x 25° vertical
Target Tracking MARPA - 10 targets (20 dual range)
Power Supply 10.5 - 31.2 VDC (12/24V systems)
Power Consumption 18W typical, 20W maximum
Recommended Fuse 5 Amp
Waterproof Rating IPX6
Operating Temperature -25°C to +55°C (-13°F to +130°F)
Max Wind Speed 100 knots (51 m/s)
Humidity Rating 95% RH at 35°C (95°F)
Interface B&G MFD via Ethernet connection

Vessel Applications & Use Cases

⛵ Sailing Yachts

Compact profile and low power consumption ideal for cruising sailboats where space and electrical capacity are limited.

? Sport Fishing Boats

Professional collision avoidance and target tracking for safely navigating to fishing grounds and returning in all conditions.

? Motor Yachts

Enhance bridge electronics with reliable radar coverage for coastal cruising and offshore passages.

Warranty & Professional Support

2-Year Limited Warranty

B&G stands behind the Halo20 with comprehensive warranty coverage and worldwide technical support through authorized marine electronics dealers.

Frequently Asked Questions

What B&G displays are compatible with the Halo20 radar?

The Halo20 is compatible with B&G Vulcan, Zeus, and Nemesis multifunction displays via Ethernet connection. The included Ethernet adapter cable (000-14552-001) provides the necessary interface for radar operation and control.

How does pulse compression compare to traditional magnetron radar?

Pulse compression technology provides superior target resolution, instant start-up, lower power consumption, and radiation-safe operation compared to traditional magnetron radars. You get better short-range performance and the ability to operate immediately without warm-up time.

What mounting height is recommended for optimal performance?

Mount the Halo20 at least 2 feet above the highest point of your vessel with clear 360-degree rotation. Higher mounting improves radar horizon and range performance. Ensure the mounting surface can support 13 lbs and provides stable platform during vessel movement.

Can the Halo20 detect small targets like kayaks or debris?

Yes, the Halo20 excels at short-range small target detection starting at 50 meters minimum range. Harbor mode optimizes signal processing for detecting small vessels, floating debris, and navigation aids that larger radars might miss.

Does the system require regular maintenance?

The Halo20 requires minimal maintenance due to its solid-state design. Regular inspection of cable connections, cleaning of the radome surface, and ensuring free antenna rotation are the primary maintenance requirements. No magnetron replacement or high-voltage component service needed.

Is the 20-meter cable length sufficient for most installations?

The included 20-meter cable accommodates most vessel installations from masthead or hardtop mounting to helm station displays. For longer cable runs, B&G offers extended cable options to suit larger vessel requirements while maintaining signal integrity.

Enhance your vessel's safety and navigation capability with the B&G Halo20 radar system - where advanced pulse compression technology meets professional marine engineering. Whether you're navigating coastal waters, crossing open ocean, or maneuvering in congested harbors, this compact radar delivers the collision avoidance and situational awareness that serious mariners demand.

HALO20 20" Radar Dome with 20M Cable

The Ultimate Picture from a Smaller Dome.

Unrivalled Short-To-Mid-Range Performance

Extend your view from the bow of your boat out to 24 nautical miles with pulse-compression radar technology that not only delivers a powerful mix of short and long-range detection, but provides precise target definition with minimal clutter.

Better Situational Awareness, Collision Avoidance

HALO20 radar delivers a comprehensive range of features to enhance your situational awareness and on-water safety. Monitor selected collision hazards with MARPA target tracking, tracking up to 10 targets, or 20 in dual range. Whether you’re navigating through crowded waterways or contending with poor visibility, HALO20 radar cuts through the clutter to give you a clear and current picture of your surroundings.

Ready Instantly

HALO20 Radar wakes instantly from its low-power standby mode, delivering radar coverage exactly when and where you want it. Even if your HALO20 radar is completely powered down start-up is a matter of seconds, not minutes like traditional pulse radar.

Easy to Use

Harbour, offshore, weather and custom modes tune HALO20 Radar’s advanced signal processing to help ensure that targets can be seen vividly – even in the toughest environmental conditions.

Features:

  • 10W Pulse Compression
  • 24 nm range from a compact 20-inch dome
  • Unrivalled short range
  • Radiation safe
  • Easy operation with harbour, offshore and weather mode
  • MARPA target tracking
  • InstantOn™
  • Low Power Consumption
  • Guard Zones

Included:

  • 20" dome
  • 20m cable (000-14549-001)
  • Ethernet Adapter Cable (000-14552-001)


Halo 20 radar, manufacturing number 000-14540-001, in a 20-inch dome, pulse compression transmitter, 24 miles range, Marpa target tracking, 24 RPM antenna rotation speed. Including 20 meters of cable.

Scanstrut 6" Aluminum PowerTower® f/2kW & 4kW Raymarine, Garmin & Navico
Scanstrut 10" Aluminum PowerTower® f/2kW/4kW Raymarine; Garmin & Navico 3G/4G Radomes
Navico 3G/4G Radar to Halo Dome Converter Cable to Use w/Old Cable


Frequently Asked Questions (FAQ) About B&G HALO20 20" Radar Dome w/20M Cable

Who is the B&G?
How to describe B&G HALO20 20" Radar Dome w/20M Cable?
What is the array size of the product?
What is the maximum range (miles) of the product?

Who is the B&G?

B&G systems have been at the leading edge of advanced marine electronics for over 50 years. B&G prides itself in provigiding nothing but the highest standard of products and services. Ambitious technical achievements and thoroughly tried and tested solutions have been the company's trademark. B&G is used by the best sailors in the world.

How to describe B&G HALO20 20" Radar Dome w/20M Cable?

Halo 20 radar, manufacturing number 000-14540-001, in a 20-inch dome, pulse compression transmitter, 24 miles range, Marpa target tracking, 24 RPM antenna rotation speed. Including 20 meters of cable.
  • See what's happening 24 miles away
  • Get a clear picture of the water and surroundings
  • HALO20 20" Radar Dome with 20M Cable The Ultimate Picture from a Smaller Dome. Unrivalled Short-To-Mid-Range Performance
  • The most advanced radar dome on the market
  • Provides a wide-angle view of the ocean with a 20 mile range
  • Pulse compression radar technology for high performance

The B&G HALO20 20' Dome Radar is the perfect choice for any type of application where a large, wide area needs to be monitored. This 20' Dome Radar features a range of up to 24 miles and is perfect for any type of application where a large, wide area needs to be monitored.

What is the array size of the product?

20"
  • See what's happening 24 miles away
  • Get a clear picture of the water and surroundings
  • HALO20 20" Radar Dome with 20M Cable The Ultimate Picture from a Smaller Dome. Unrivalled Short-To-Mid-Range Performance
  • The most advanced radar dome on the market
  • Provides a wide-angle view of the ocean with a 20 mile range
  • Pulse compression radar technology for high performance
  • Halo 20 Radar In 20' Dome Pulse Compression Transmitter 24 Mi. Range MARPA Target Tracking 24 RPM Antenna Rotation Rate. Includes 20 Meter
  • The Halo 20 is the only radar in the world with a rotating antenna, which means it can track targets at speeds up to 24 RPM
  • It has a range of 24 miles and can detect moving objects up to 1,000 yards away
  • The Halo's patented Pulse Compression technology increases its range by up to 50%
  • The Halo 20 radar dome is a pulse compression transmitter that can be used to detect targets at ranges of up to 20 miles.
  • The MARPA target tracking antenna rotates at 24 RPM and can track targets within a radius of 24 miles.
  • Includes the 20 meter radar dome, the MARPA target tracking antenna, and the halo 20 radar dome pulse compression transmitter.

What is the maximum range (miles) of the product?

24nm


Buy with the best price B&G HALO20 20" Radar Dome w/20M Cable for only $1999 from NVN Marine! Same day fast and free shipping before 3pm.

B&G HALO20 20" Radar Dome w/20M Cable Technical Specifications

Type:

Marine Navigation & Instruments | Radars

Vendor:

B&G

Weight:

28.0 lb

Range - Max (Miles):

24nm

Array Size (Inches):

20"

Product Installation:

Download PDF

B&G HALO20 20" Radar Dome w/20M Cable User Reviews

B&G HALO20 20" Radar Dome w/20M Cable Shipping & Return

Shipping Weight:

28.0 lb

Box Sizes:

11.00 (h) x 23.00 (w) x 26.00 (l)

Cubic Feet:

6578.0

Returnable:

Yes
