B&G Nemesis™ Hub
Free Ground Shipping (2-6 Days Delivery Time)
Shipping (3PM)
Within 30 days

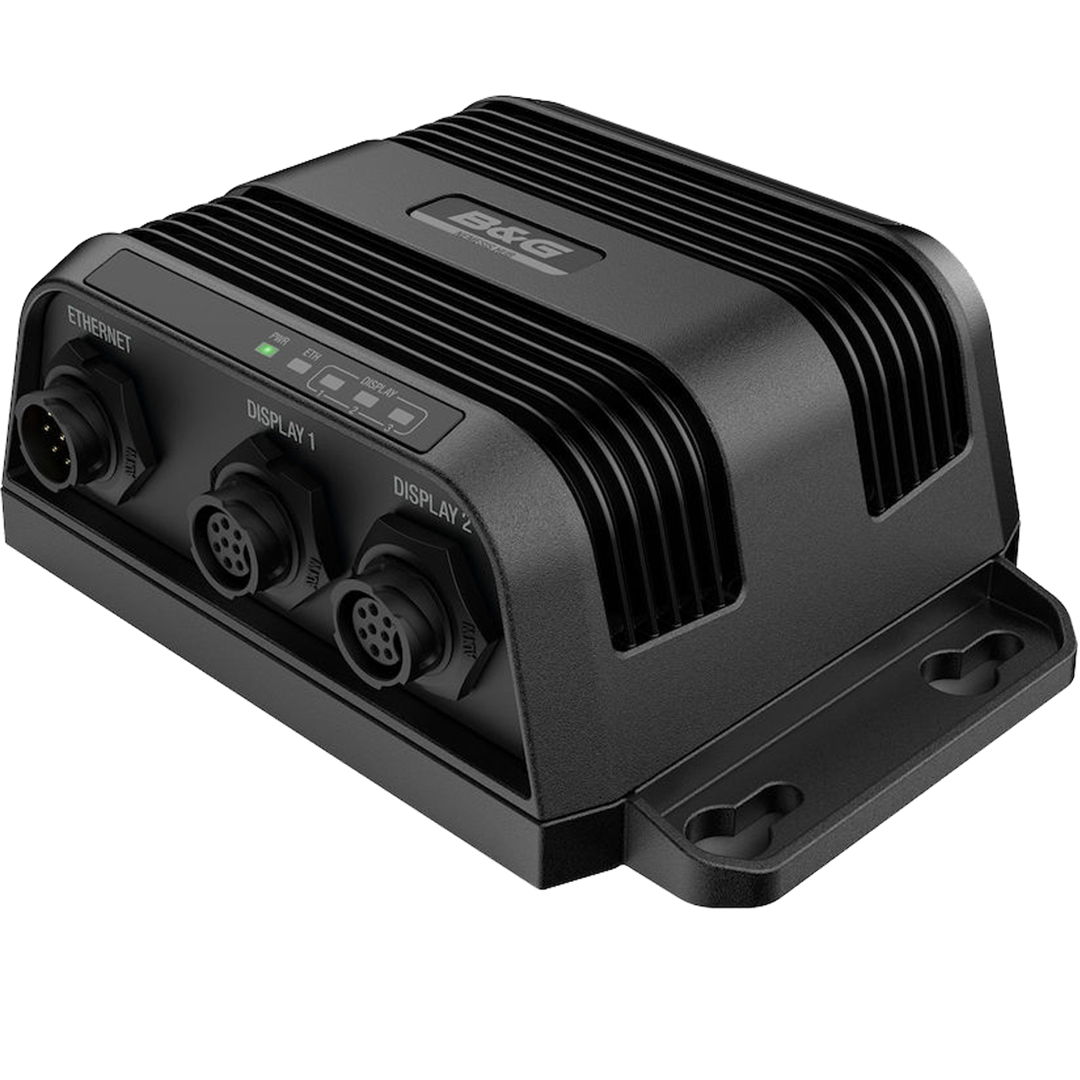

B&G Nemesis™ Hub Product Description
Simplify Your Sailing Setup with the Nemesis™ Hub
Imagine streamlining your cockpit or mast setup without a tangle of cables snaking across your boat. The Nemesis™ Hub from B&G transforms how you connect multiple Nemesis 9 or Nemesis 12 sailing displays, making installation cleaner, more reliable, and ready for the demands of competitive racing or long-distance cruising. By centralizing power and data through a single Ethernet run, it cuts down on wiring clutter while ensuring seamless communication between displays for wind, speed, laylines, and tactical data.
Why Sailors Choose the Nemesis™ Hub
- Effortless Multi-Display Connectivity: Link up to three Nemesis displays in tight spaces like the masthead, helm, or cockpit using short 0.6m interconnect cables—perfect for keeping things tidy during high-speed maneuvers.
- Single Cable Simplicity: One main Power/Ethernet cable handles everything, with flexible lengths available to match your boat's layout, reducing installation time and potential failure points.
- Rugged Marine Design: Built to thrive in harsh saltwater environments, it shrugs off spray, submersion, and extreme temperatures, so your instruments stay online when conditions turn brutal.
- Seamless Network Integration: Plays nicely with NMEA 2000 and Ethernet networks, sharing critical data like polar tables, start lines, and heading info across your entire suite of B&G electronics.
Real-World Installation Insights
Setting up the hub is straightforward for most DIY sailors. Mount it securely near your displays—perhaps behind a panel at the helm or inside a mast tube. Connect the main Power/Ethernet cable to your boat's 12/24V supply, then daisy-chain the short interconnects to each Nemesis screen. Ground it properly with the M4 stud for electrical safety, especially in lightning-prone areas. Pro tip: Use zip ties and conduit for the runs to protect against UV and chafe, ensuring years of vibration-free performance on a lively race boat.
For racing teams, position one hub at the mast for wind instruments and another at the helm for tactician views—this setup delivers synchronized data without latency, giving you an edge on the racecourse. Cruisers appreciate the reduced weight aloft and easier troubleshooting during passages.
Detailed Technical Specifications
| Category | Specification |
|---|---|
| Environmental | |
| Storage Temperature | -15°C to +55°C (-5°F to 131°F) |
| Operating Temperature | -20°C to +60°C (-4°F to 140°F) |
| Waterproof Rating | IPX6 and IPX7 |
| Electrical | |
| Power Supply | 12/24 V DC |
| Operating Voltage | 10 - 31.2 V DC (min - max) |
| Power Consumption | 2W plus max 60W distributed to displays |
| Fuse Rating | 9 Amps |
| Physical | |
| Weight | 240g (0.44 lbs) |
| Interface/Connectivity | |
| Ethernet/Power | 1x 8-pin connector |
| Display Connectors | 3x 8-pin Ethernet connectors |
| Ground | 1x M4 Grounding stud |
What's Included for Quick Setup
- The Nemesis™ Hub itself—compact and ready to mount.
- One Nemesis™ Hub Power/Ethernet Interconnect Cable to get you started.
Frequently Asked Questions
Can the Nemesis™ Hub connect more than three displays?
It's designed for up to three Nemesis 9 or 12 displays per hub. For larger setups, combine multiple hubs in your network for expanded coverage without overwhelming a single point.
Is the hub compatible with NMEA 2000 networks?
Yes, it integrates smoothly via Ethernet, which bridges to NMEA 2000 through compatible B&G components, allowing data sharing from transducers, GPS, and more.
How waterproof is the Nemesis™ Hub for offshore sailing?
Rated IPX6 and IPX7, it handles heavy spray and temporary immersion, making it ideal for bluewater adventures or inshore racing in wet conditions.
What cable lengths work with the hub?
Short 0.6m interconnects for displays, plus main Power/Ethernet options from 5m up to 30m to suit cabin-to-mast or helm runs.
Does it support 12V and 24V systems?
Absolutely—operates from 10V to 31.2V DC, fitting most recreational and commercial vessels without voltage converters.
How much power does it draw when fully loaded?
Base draw of 2W, plus up to 60W distributed to connected displays—a efficient setup that won't strain your batteries during daylight racing.
B&G USA 0015683001 Attributes
Nemesis™ Hub
The Nemesis™ Hub allows you to combine two or more Nemesis 9 or 12 Sailing Displays, either on a mast, in the cockpit or at the helm station.
Nemesisâ„¢ hub The Nemesisâ„¢ hub allows you to combine two or more Nemesis 9 or 12 navigation displays on the mast, cockpit or helm station. ...
