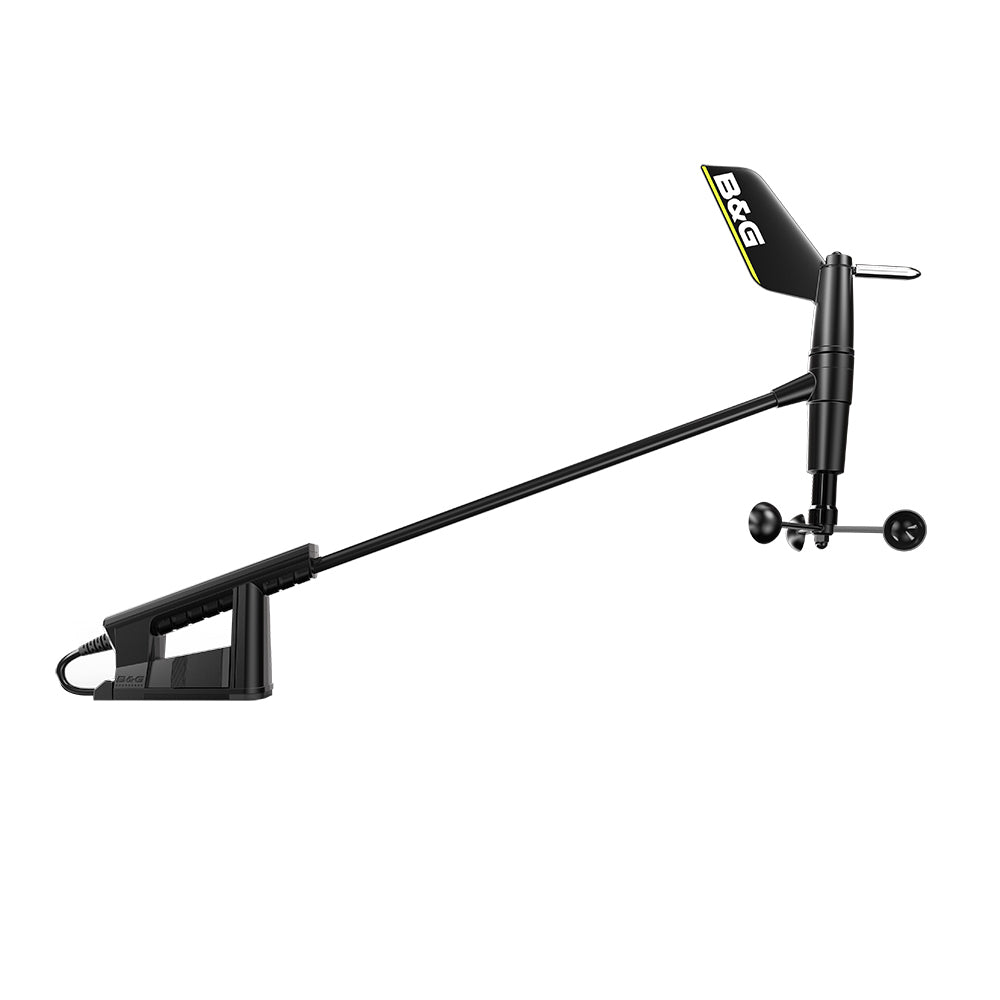

B&G WS310 Wired Wind Sensor w/35M Cable & Interface Cable Product Description
B&G WS310 Wired Wind Sensor with 35M Cable & Interface - Professional Marine Wind Measurement System
Transform your sailing experience with the B&G WS310 Wired Wind Sensor with 35M Cable and Interface - the ultimate precision wind measurement solution for serious sailors and marine professionals. This high-performance wired wind sensor delivers laboratory-grade accuracy and lightning-fast data transmission, making it the perfect choice for competitive racing, coastal cruising, and professional marine applications.
Revolutionary Wind Sensing Technology
The WS310 represents B&G's latest breakthrough in marine wind sensor technology, engineered to provide exceptional accuracy in all sailing conditions. With angle precision better than 1 degree and wind speed accuracy within 0.2 knots or 5%, this advanced sensor ensures you receive the most reliable wind data available on the water.
Key Features & Benefits
-
Laboratory-Grade Accuracy: <1 degree angle precision and ≤4% wind speed accuracy from 2-80 knots
-
High-Speed Data Output: 5Hz update rate for real-time wind tracking and tactical decision-making
-
Extended Cable Range: 35M (115 feet) cable allows flexible masthead installation options
-
NMEA 2000 Integration: Seamless compatibility with modern marine electronics networks
-
All-Weather Reliability: IPX6/IPX7 protection rating for harsh marine environments
-
Aerodynamic Design: Optimized wind flow characteristics reduce turbulence and measurement errors
-
Energy Efficient: Low 15mA power consumption at 12V DC
Technical Specifications
| Wind Speed Range: |
Up to 100 knots (51.4 m/sec) |
| Wind Speed Resolution: |
0.1 knots (0.05 m/sec) |
| Wind Speed Accuracy: |
<10% at <2 knots, ≤4% from 2-80 knots |
| Wind Angle Resolution: |
0.1 degrees |
| Wind Angle Accuracy: |
±0.5 degrees |
| Operating Temperature: |
-25°C to 65°C (-13°F to 149°F) |
| Protection Rating: |
IPX6/IPX7 weatherproof |
| Power Consumption: |
15mA at 12V DC |
| Cable Length: |
35M (115 feet) |
| Maximum Cable Run: |
Up to 80 meters total |
Complete Wind Sensor Package Includes
-
WS310 Wind Sensor Unit (000-14391-001) - High-precision masthead transducer
-
WS310 Wired Interface (000-14389-001) - NMEA 2000 network connectivity
-
35M Mast Cable (000-14397-001) - Premium marine-grade cable for reliable data transmission
-
NMEA 2000 T-Connector - For seamless network integration
Professional Installation & Integration
The WS310 system features a streamlined installation process with single-cable connectivity up to 80 meters. The included NMEA 2000 interface converts NMEA 0183 wind data to NMEA 2000 format, ensuring compatibility with modern marine electronics systems including B&G chartplotters, autopilots, and sailing instruments.
Proven Performance & Reliability
Backed by over 500 individual wind tunnel tests and more than 200,000 hours of combined field testing, the WS310 has proven its reliability in the world's most demanding sailing conditions. This extensive testing ensures consistent performance from light air to heavy weather sailing.
Why Choose the B&G WS310?
-
Racing Performance: Tournament-grade accuracy for competitive sailing applications
-
Cruising Reliability: Dependable wind data for safe navigation and sail optimization
-
True & Apparent Wind: Advanced calculations provide both apparent and true wind measurements
-
Tactical Advantage: Real-time wind shifts and patterns for strategic racing decisions
-
Safety Enhancement: Accurate weather monitoring for improved onboard safety
Applications
Ideal for:
- Competitive yacht racing (club to professional level)
- Coastal and offshore cruising
- Sailing instruction and training
- Professional maritime operations
- Weather monitoring stations
Compliance & Standards
The B&G WS310 meets strict marine industry standards including NMEA 2000 certification and marine environmental protection requirements. Built to withstand the harsh marine environment with corrosion-resistant materials and weatherproof construction.
Upgrade your sailing instrumentation with the B&G WS310 Wired Wind Sensor - where precision engineering meets proven reliability for serious sailors who demand the best wind measurement technology available.
000-14843-001
9420024177068
Marine Navigation & Instruments
Frequently Asked Questions
What is the difference between the B&G WS310 and wireless wind sensors?
The WS310 is a wired wind sensor that provides reliable, continuous data transmission without battery concerns or wireless interference. Wired sensors offer consistent performance and don't require battery replacement, making them ideal for professional applications and extended cruising where reliability is paramount.
How accurate is the B&G WS310 wind sensor?
The WS310 provides exceptional accuracy with wind angle precision better than 1 degree and wind speed accuracy within 0.2 knots or 5% across its working range. Wind speed accuracy is ≤4% from 2-80 knots, making it suitable for both racing and professional marine applications.
Can the WS310 be integrated with existing NMEA 2000 networks?
Yes, the WS310 package includes a dedicated NMEA 2000 interface that converts the sensor's NMEA 0183 output to NMEA 2000 format. This ensures seamless integration with modern marine electronics including B&G chartplotters, autopilots, and other NMEA 2000 compatible devices.
What is the maximum cable length for the WS310 installation?
The WS310 can support cable runs up to 80 meters maximum. This package includes a 35M (115 feet) cable, which is suitable for most sailing vessels. The extended cable length allows flexible masthead positioning for optimal wind measurement accuracy.
Is the WS310 suitable for both racing and cruising applications?
Absolutely. The WS310 is designed for both competitive racing and recreational cruising. Its high precision and fast 5Hz update rate make it excellent for racing tactics, while its reliability and weatherproof construction ensure dependable performance during extended cruising voyages.
What maintenance does the WS310 require?
The WS310 requires minimal maintenance due to its robust construction and weatherproof design. Regular cleaning of the sensor cups and vane, checking cable connections, and periodic calibration checks are recommended. The wired design eliminates battery maintenance requirements common with wireless sensors.
WS310 Wired Wind Sensor with 35M Cable with Interface Cable
The WS310 wind sensor pack is the perfect solution for any sailor looking to get accurate and fast wind data to your instruments from a wired wind sensor.
High Performance
Designed to provide highly accurate wind data in all conditions at all points of sail and heel.
Reliability
Thousands of hours of real-life testing have proved this instrument to be exceptional in all conditions. Providing fast and accurate data at all times.
Comes with:
WS310 Wind Sensor - 000-14391-001
WS310 (wired) Interface - 000-14389-001
WS300 35M (115') CABLE - 000-14397-001
Color: black, WS310 (wired) wind sensor, with 35 m (115 feet) mast cable and interface for connecting to NMEA 2000 network-a series of new B&G high-precision wind sensors,...
Frequently Asked Questions (FAQ) About B&G WS310 Wired Wind Sensor w/35M Cable & Interface Cable
Who is the B&G?
How to describe B&G WS310 Wired Wind Sensor w/35M Cable & Interface Cable?
Who is the B&G?
B&G systems have been at the leading edge of advanced marine electronics for over 50 years. B&G prides itself in provigiding nothing but the highest standard of products and services. Ambitious technical achievements and thoroughly tried and tested solutions have been the company's trademark. B&G is used by the best sailors in the world.
How to describe B&G WS310 Wired Wind Sensor w/35M Cable & Interface Cable?
Color: black, WS310 (wired) wind sensor, with 35 m (115 feet) mast cable and interface for connecting to NMEA 2000 network-a series of new
B&G high-precision wind sensors,...
- Measure wind speed and direction with a cable that is 35 meters long.
- Get accurate readings even in high winds with the WS310.
- Monitor movement of the sail and optimize your performance with this wind sensor pack.
- Monitor wind conditions from a distance with the WS310 wind sensor.
- The WS310 is designed to work with any type of boat and is compatible with most instruments.
- The cable is 35 meters long and has an interface cable to make installation quick and easy.
- Get accurate and fast wind data to your instruments from a wired wind sensor.
- High performance, designed to give you the most reliable wind readings possible.
- No more worrying about batteries or charging.
