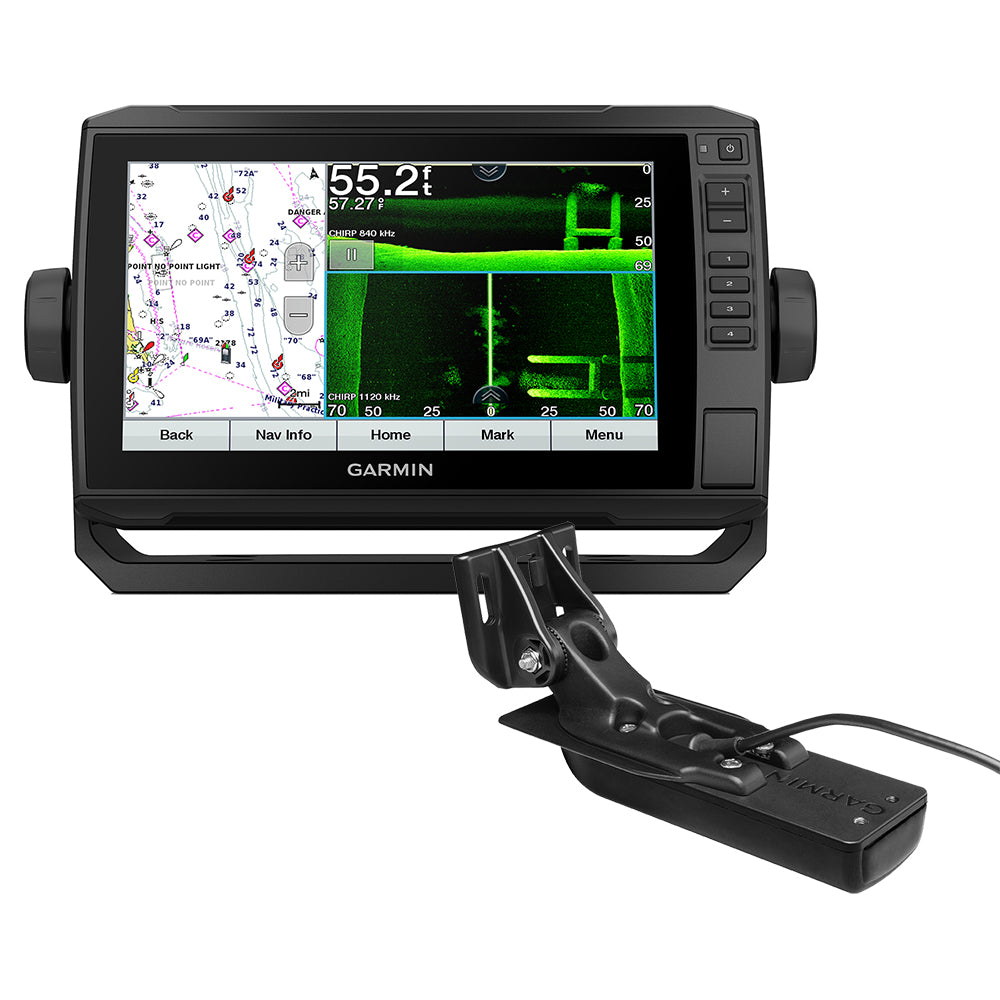

Garmin ECHOMAP™ UHD 94sv US Offshore g3 w/GT54UHD-TM Transducer
Garmin ECHOMAP™ UHD 94sv US Offshore g3 w/GT54UHD-TM Transducer — Product description
Imagine heading out to offshore waters with confidence, knowing your fishfinder delivers razor-sharp images of structure, baitfish schools, and trophy targets lurking below. The Garmin ECHOMAP UHD 94sv with GT54UHD-TM transducer transforms your boat console into a command center for serious anglers. This 9-inch powerhouse combines intuitive touchscreen controls with keyed assist for gloved hands, ensuring you stay focused on the bite even under the harshest sun.
Superior Sonar for Unmatched Fishfinding Precision
At the heart of this unit lies the GT54UHD-TM transducer, unleashing Ultra High-Definition ClearVü and SideVü scanning sonars. These technologies paint crystal-clear, photo-like pictures of your underwater world—revealing wrecks, drop-offs, and fish holding tight to bottom structure up to 125 feet down. Paired with Garmin's high wide CHIRP traditional sonar, you'll enjoy exceptional target separation, distinguishing individual fish in dense schools without the clutter.
For those chasing live action, compatibility with Panoptix LiveScope sonar brings real-time views around your vessel, spotting follows and strikes as they happen. Whether trolling deep ledges or drifting reefs, this setup minimizes guesswork and maximizes hookups.
Advanced Coastal Mapping That Keeps You on Course
Preloaded with BlueChart g3 charts infused with premium Navionics data, you'll navigate U.S. coastal waters with spot-on detail—shallow-water shading, satellite imagery overlays, and dynamic tides/currents. Inland anglers aren't left out; LakeVü g3 covers over 17,000 lakes with 1-foot contours for pinpoint structure awareness.
Take mapping further with Quickdraw Contours, which lets you record your own custom 1-foot contour maps in real-time. Share these hotspots via the Quickdraw Community or keep them private for your edge. It's like having an ever-growing library of proven fishing intel right at your fingertips.
Seamless Connectivity and Boat Integration
Networking pros will love the NMEA 2000 and NMEA 0183 support, linking effortlessly to engines, autopilots, sensors, VHF radios, and even FUSION-Link audio for tunes during the grind. Share sonar data wirelessly across multiple ECHOMAP UHD or Ultra units—perfect for multi-station setups.
Pair it with the Force trolling motor, and control thrust, steering, waypoint navigation, and track following directly from the screen. Built-in Wi-Fi connects to the ActiveCaptain app, delivering software updates, smart notifications, and OneChart access for expanded coverage without extra cards.
User-Friendly Design Built for Real-World Fishing
The quick-release bail mount shines for security and portability—snap it off to stow safely or take charts on the go. Flush mounting options keep your console sleek, while the sunlight-readable display cuts glare on bright days. With one Garmin Marine Network port, single NMEA inputs/outputs, and 12-pin transducer compatibility, expansion is straightforward.
Anglers rave about its responsiveness during rough seas; the keyed assist prevents accidental zooms or pans when waves rock the boat. It's rugged, reliable, and ready for salt spray or freshwater splashes alike.
Pro Tips for Getting the Most from Your Setup
- Adjust SideVü range to 50-75 feet for optimal offshore reef scanning without losing resolution.
- Use CHIRP frequency sweeps (150-240 kHz) for versatile target ID in varied water columns.
- Sync with ActiveCaptain for crowd-sourced waypoints from fellow captains hitting the same grounds.
- Mount the GT54UHD-TM transducer dead-center on the transom, 1/3 from the back, for minimal air bubbles.
- Leverage sonar sharing on tournament days—designate one unit as master for live feeds to observers.
FAQ
What makes the Ultra High-Definition sonar on this Garmin unit stand out?
The UHD ClearVü and SideVü sonars provide photo-like clarity, showing fish arches, bottom composition, and structure details up to 125 feet. Combined with high wide CHIRP, it excels at separating targets in schools for precise fishing decisions.
Does this chartplotter come with offshore-ready charts?
Yes, it's preloaded with BlueChart g3 coastal charts featuring Navionics data, including tides, currents, and coastal contours tailored for U.S. offshore navigation.
Can I share sonar data between multiple units?
Absolutely—wireless sharing of sonar, user data, and charts works with other compatible ECHOMAP UHD or Ultra devices, ideal for larger boats.
Is it compatible with trolling motors?
Yes, it integrates fully with Force trolling motors, allowing screen-based control of steering, speed, routes to waypoints, and track following.
How does Quickdraw Contours work?
It creates real-time 1-foot contour maps as you fish, which you can save privately or share via the Quickdraw Community for collaborative insights.
What networking options are supported?
NMEA 2000 and NMEA 0183 compatibility connects to autopilots, engines, sensors, audio systems, and more for a fully integrated helm.
Is the display usable in bright sunlight?
Yes, the 9-inch touchscreen is sunlight-readable with keyed assist, ensuring clear visibility and easy operation even in direct sun or with wet hands.
ECHOMAP™ UHD 94sv US Offshore g3 with GT54UHD-TM Transducer
Find more fish using the ECHOMAP™ UHD 94sv combo with a bright, sunlight-readable 9” touchscreen with keyed assist. The optional GT54 transducer provides Ultra High-Definition ClearVü and SideVü scanning sonars, so you get crystal-clear images of what is around and below your boat, and Garmin high wide CHIRP traditional sonar delivers remarkable target separation. It comes preloaded with BlueChart® g3 coastal charts with the best of Garmin and Navionics® data. It features a quick-release bail mount, making it easy to remove and take with you. NMEA 2000® and NMEA 0183 network support provides you with engine data, sensor connection, autopilot integration and more. ECHOMAP™ UHD 94sv is even compatible with the Force™ trolling motor for full control of the motor from the screen plus the ability to route to waypoints, follow tracks and more.
Features:
- Bright, sunlight-readable 9” touchscreen with keyed assist
- Includes transducer for Ultra High-Definition ClearVü and Ultra High-Definition SideVü scanning sonars and Garmin high wide CHIRP traditional sonar
- Preloaded BlueChart® g3 coastal charts with integrated Navionics® data
- Supports Panoptix™ all-seeing sonar, including Panoptix LiveScope™ sonar
- Sonar sharing capabilities with other ECHOMAP™ Plus, ECHOMAP UHD and ECHOMAP Ultra units
- NMEA 2000® and NMEA 0183 network support for autopilot and engine data
- Quick-release bail mount for fast and easy mobility
- Compatible with Force™ trolling motor for full control of the motor from the screen plus the ability to route to waypoints, follow tracks and more
Included Transducer
Select the transducer bundle to add a GT54 transducer for Ultra High-Definition ClearVü and SideVü scanning sonars, which show you crystal-clear images below and around your boat. Plus, you get Garmin high wide CHIRP traditional sonar for remarkable target separation.
Sonar Support
This chartplotter supports a variety of Garmin transducers (sold separately), including the Panoptix LiveScope™ scanning sonar system, which lets you see all around your boat in real time.
Preloaded Charts
Experience unparalleled coverage and detail with preloaded LakeVü g3 inland maps featuring integrated Navionics® data that covers more than 17,000 lakes with up to 1’ contours.
Quickdraw Contours
Create personalized fishing maps on-screen with 1’ contours. Keep the data to yourself, or share it with the Quickdraw Community on Garmin Connect™.
NMEA 2000® & NMEA0183 Networks
Connect to autopilots, digital switching, weather, FUSION-Link™ audio system, media, VHF, AIS and more from one screen.
ActiveCaptain® App
Built-in Wi-Fi® connectivity pairs with the free all-in-one mobile app for access to the OneChart™ feature, smart notifications1, software updates, Garmin Quickdraw™ Community data and more.
Network Capable
If you have multiple compatible ECHOMAP UHD or ECHOMAP Ultra devices on your boat, you can share information — such as sonar, user data and charts — among them (7” and 9” models only).
Force™ Trolling Motor Capability
Take control of the most powerful and efficient trolling motor available2, route it to waypoints, follow tracks and more from the screen of your chartplotter.
Connections
- Garmin Marine Network Ports: 1
- NMEA 2000 Compatible: Yes
- Transducer Pin Numbers: 12
- NMEA 0183 Input Ports: 1
- NMEA 0183 Output Ports: 1
- Video Input Ports: None
- Video Output Ports: None
- Wireless Connectivity: Yes
In The Box
- ECHOMAP UHD 94sv with BlueChart g3 for U.S.
- GT54UHD-TM transducer
- Power/data cable
- Tilt mount with quick release cradle
- Flush mount
- Protective cover
- Hardware
- Documentation
1 When paired with a compatible smartphone
2 In compliance with ISO standard 13342
Wi-Fi is a registered trademark of the Wi-Fi Alliance.
!["Warning"]("https://productimageserver.com/prop65/6pt.png")
WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
SKU: NVN-80837
MPN: 010-02343-01
UPC: 753759241667
Technical specifications
| Brand | Garmin |
| Model | Garmin ECHOMAP™ UHD 94sv US Offshore g3 w/GT54UHD-TM Transducer |
| SKU / MFR# | 80837 |
