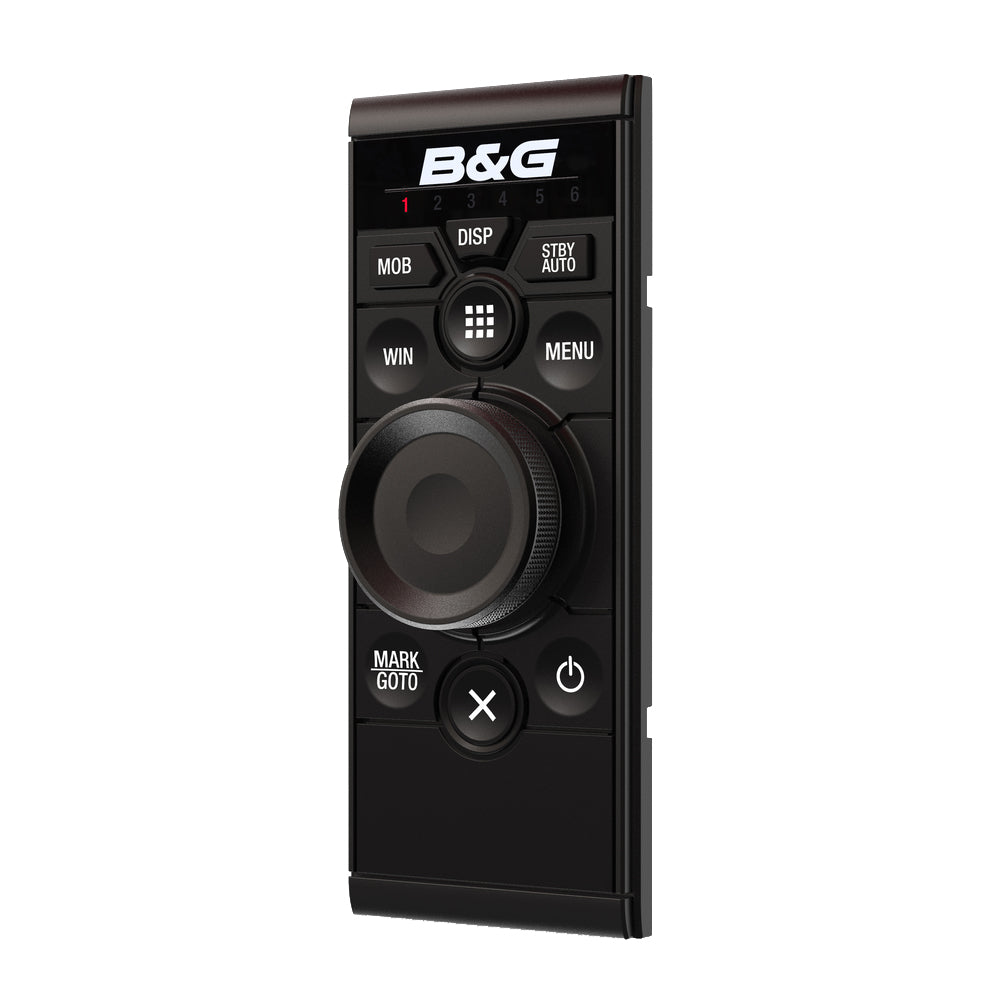

B&G ZC2 Remote Portrait
Free Ground Shipping (2-6 Days Delivery Time)
Shipping (3PM)
Within 30 days
B&G ZC2 Remote Portrait Product Description
Enhance your boating experience with the sleek B&G ZC2 Remote Portrait controller, crafted specifically for sailors who demand precision and reliability on the water. This compact, vertically oriented remote slips effortlessly into cockpit pedestals, chart tables, or any tight space where a portrait layout shines. Say goodbye to stretching across the helm to tweak your multifunction displays—instead, enjoy fingertip control over your entire network from a single, intuitive device.
Whether you're navigating choppy waters or fine-tuning your course under sail, the ZC2 Portrait delivers responsive commands to Zeus², Zeus³, Glass Helm, or Vulcan systems. Its rugged design withstands the marine environment, ensuring your focus stays on the horizon, not on finicky controls.
Why Choose the ZC2 Remote Portrait for Your Vessel?
Sailors know the frustration of managing multiple screens while handling sheets and tiller. The ZC2 solves this with seamless multi-display control. Network it via a single NMEA 2000 connection, and command up to six displays effortlessly. Cycle through them using the dedicated button, with clear LED indicators lighting the way. Need autopilot adjustments? Access them through any connected display. And in emergencies, hit the MOB button to alert every screen instantly.
Built for real-world sailing, the aluminum rotary dial offers knurled grip for wet hands, plus built-in cursor keys for zooming charts or panning waypoints without menu diving. High-decibel alarms cut through engine noise, keeping you informed of critical alerts like depth warnings or wind shifts.
- Multi-Display Mastery: Switch and control up to six MFDs with one press—perfect for larger cockpits or shared helm setups.
- Autopilot Integration: Remote steering commands via your networked Zeus or Vulcan, freeing you for sail trim.
- Portrait Perfection: Slim profile (just 2.4 inches wide) fits pedestal mounts or armrests without cluttering space.
- Flush or Dash Mount: Low 8mm dash profile or zero-profile flush install with optional bracket for clean aesthetics.
- Battle-Tested Durability: IPX6 waterproofing from the front, thriving in spray and humidity up to 95% RH.
Effortless Installation for Seamless Integration
Setting up the ZC2 Portrait is straightforward, even in confined spaces. The portrait orientation positions the cable at the bottom for pedestal or chart table installs, routing cleanly out of sight. Use the included dash mounting kit for a secure, low-profile fit, or add the bracket for fully recessed mounting. Connect via the molded Micro-C NMEA 2000 cable—no extra power wiring needed. Compass-safe at 200mm, it won't interfere with your heading sensor.
Pro tip for racers: Mount it within easy reach of the tactician for quick chart checks during maneuvers, enhancing team efficiency without slowing the boat.
Technical Specifications at a Glance
| Specification | Details |
|---|---|
| Dimensions (W x H x D) | 2.4" x 5.9" x 1.8" |
| Weight | 0.66 lbs (300g) |
| Waterproof Rating | IPX6 (front when dash mounted with gasket) |
| Power Consumption | Min 0.5W / Typical 0.6W / Max 1.0W (<100mA @13.5V) |
| NMEA 2000 Load | 2 LEN (Micro-C port) |
| Supply Voltage | 12V DC (10-16V) |
| Operating Temperature | -15°C to +55°C (5°F to 131°F) |
| Humidity | Up to 95% RH |
| Alarm Output | 75dBA @ 0.5m |
| Connector | Molded 1.8m (6ft) cable with Micro-C |
| Compliance | IEC/EN 60945 |
What's Included for Quick Setup
- ZC2 Remote Controller (Portrait orientation)
- NMEA 2000 T-Joiner
- Sun cover for protection
- Dash mounting kit
Frequently Asked Questions
Can the B&G ZC2 Remote Portrait control autopilot functions?
Yes, it serves as a remote autopilot controller through any networked B&G display, allowing precise heading adjustments without leaving your position.
How many displays can one ZC2 Portrait control?
It manages up to six Zeus², Zeus³, Glass Helm, or Vulcan multifunction displays via a single NMEA 2000 network.
Is the ZC2 Portrait suitable for rough sea conditions?
Absolutely—its IPX6 rating, knurled aluminum dial, and robust keypad ensure reliable operation in spray, waves, and high humidity.
What's the difference between portrait and landscape ZC2?
The portrait version is narrower and taller, ideal for vertical mounts like pedestals, while landscape suits horizontal dash spaces.
Does it include mounting hardware?
Yes, the dash mounting kit is included, with an optional bracket available for flush installation and a slim 8mm profile.
How does the MOB function work on the ZC2?
Press the dedicated MOB button to trigger a man-overboard alert across all connected displays, marking the position instantly.
Is wiring complicated for the ZC2 Portrait?
No— it uses a single NMEA 2000 Micro-C connection for power and data, with a pre-molded 6ft cable and included T-joiner.
ZC2 Remote Portrait
Perfectly designed for mounting in a cockpit pedestal, by the chart table or in other locations suiting a ‘portrait’ orientation. The B & G ZC2 Remote Controller provides intuitive keypad and rotary-dial command of up to six Zeus², Zeus³, Glass Helm or Vulcan multifunction displays; and can be used to control a B & G autopilot via any networked display.
Manage Multiple Displays
Networked with a single NMEA 2000® connection for both power and control, one ZC2 Remote Controller can operate up to six networked multifunction displays. Integrated LED indicator lights clearly show the selected display number, while a dedicated button cycles quickly through the available displays. The ZC2 can also be used as an autopilot remote control via any networked display; while the MOB function enables a remote MOB alert to be issued across all networked displays.
Controls Optimised for Zeus², Zeus³, Glass Helm or Vulcan
The ZC2 Remote Controller features a keypad specifically designed to operate the latest Zeus², Zeus³, Glass Helm or Vulcan multifunction displays efficiently and reliably in all conditions. The controller’s high-quality aluminium dial features a knurled edge for precise rotary control, and built-in cursor functions for easy on-screen navigation.
Easy Mounting in Vertical or ‘Portrait’ Orientation
The ‘portrait’ ZC2 is perfectly suited to mounting in the pedestal or chart table, with its narrow design and cable positioned specially to fit such installations. Dash mounting provides a slim 8mm profile, while an optional bracket allows total flush-mount installation.
Features:
- Control up to six Zeus², Zeus³, Glass Helm or Vulcan multifunction displays
- Autopilot remote control via any networked display
- High-quality aluminium control dial with built-in cursor functions
- MOB function
- Portrait orientation (landscape version also available)
- Narrow design perfect for chart table mounting
- Dash mount with low 8mm profile
- Zero-profile flush mount with optional bracket
- Integrated high-decibel speaker for critical alarms
- Quickly switch displays with dedicated button and LED indicators
- Single NMEA 2000® connection
Specifications:
- Waterproof rating: IPX6
- Weight: 0.66 lbs
- Power consumption min: 0.5 W
- Power consumption typical: 0.6 W
- NMEA 2000 Connectivity: 1 x NMEA2000 Micro-C port, 2 LEN
- Power consumption max: 1.0 W
- Supply voltage: 12V DC (10-16V DC)
- Operating temperature range: 5 degrees F to 131 degrees F
- Warranty period: 2 years
- Compass safe: 200mm (0.9')
- Recommended fuse rating: 5A
- Dimensions WxHxD: 2.4" x 5.9" x 1.8"
- Mounting type: flush
- Approvals compliance: IEC/EN 60945
- Interface: Keypad
- Humidity: up to 95% RH
The ZC2 remote control portrait is perfectly designed and can be installed on the cockpit base, next to the chart table or other positions suitable for the "portrait" direction. B&G ZC2 remote control provides...
Frequently Asked Questions (FAQ) About B&G ZC2 Remote Portrait
Who is the B&G?How to describe B&G ZC2 Remote Portrait?
Who is the B&G?
How to describe B&G ZC2 Remote Portrait?
Buy with the best price B&G ZC2 Remote Portrait for only $461 from NVN Marine! Same day free shipping before 3pm.
B&G ZC2 Remote Portrait Technical Specifications
| Type: | |
|---|---|
| Vendor: |
B&G |
