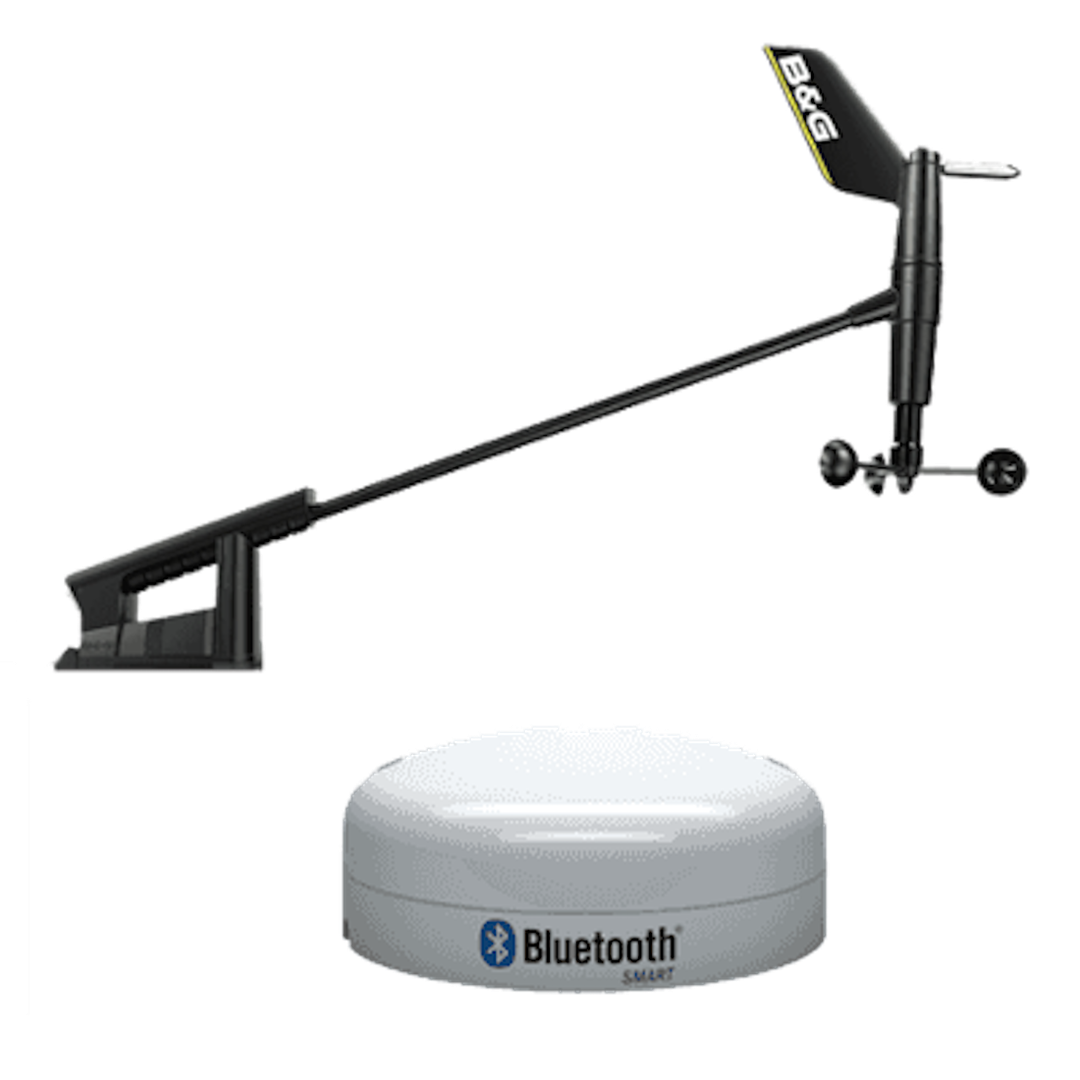

B&G WS320 Wireless Wind Sensor Pack with Wireless Interface Module Product Description
Imagine gliding through choppy waters with precise wind readings feeding straight into your chartplotter and autopilot—no tangled cables snaking up the mast, no downtime during installs. The B&G WS320 Wireless Wind Sensor Pack delivers exactly that, blending cutting-edge wireless tech with the reliability serious sailors demand. Tailored for cruising enthusiasts and club racers alike, this pack eliminates the hassle of traditional wired setups while matching—or exceeding—their performance.
Unlock Superior Wind Data Without the Wires
Sailors know wind is king on the water, dictating tactics from tacking angles to sail trim. The WS320 shines here, capturing apparent wind speed and angle at a blistering 5 Hz rate—five updates per second—for smoother, more responsive displays. Benchmarked in over 500 wind tunnel tests against rivals, it nails accuracy across all points of sail and heel angles, even in gusty conditions. Whether you're pinching upwind in a 20-knot breeze or broad-reaching down a wave, expect wind speed precision within ±0.1 m/sec (0.2 knots) and angle accuracy of ±0.5°.
Installation Simplicity for Real-World Boating
Retrofitting wind sensors often means dropping the mast or drilling holes—pure frustration. Not with the WS320. Mount the lightweight sensor (just 0.32 kg) at the masthead using the included bracket, pair it wirelessly to the compact base station via Bluetooth (up to 30m range), and connect the base to your NMEA 2000 network with the drop cable and T-joiner. It's ready in under an hour, ideal for masts up to 25 meters. Pro tip: Position the base station low on the mast or in the cockpit for optimal signal and easy access to monitor battery status through your B&G display.
Power That Lasts, Season After Season
Forget disposable batteries. The WS320's smart rechargeable system, bolstered by solar charging, keeps it humming through long passages or multi-day regattas. Low-power design ensures data flows uninterrupted, even on cloudy overcasts. The base station sips just 1.2W from your 12V system, adding minimal load to your network (2 LEN). Built tough for marine extremes—IPX6/IPX7 waterproofing, -25°C to +65°C operation—it shrugs off spray, salt, and storms.
Engineered for Endurance: Tested Beyond Limits
As the yacht's most vulnerable sensor, wind gear can't afford weak links. B&G subjected the WS320 to over 200,000 hours of field testing, plus brutal lab simulations. Aerodynamic arms slice through air for minimal turbulence, delivering clean data to your autopilot for flawless auto-tacks and gybes. Racers appreciate the resolution (0.1° angle, 0.05 m/sec speed), while cruisers value the zero-maintenance vibe—no iced-up cups in subzero temps or UV-faded anemometers after years exposed.
What's in Your WS320 Pack
- WS320 Wireless Wind Sensor with solar-rechargeable battery
- WS320 Wireless Interface Module (Bluetooth base station)
- Masthead bracket and fixings kit (including pole mount)
- NMEA 2000 drop cable (1.82m / 6 ft)
- Micro-C T-joiner
Detailed Specifications at a Glance
| Specification | Details |
|---|---|
| Sensor Weight | 0.32 kg (0.7 lbs) |
| Waterproof Rating | IPX6 & IPX7 |
| Operating Temperature (Sensor) | -25°C to +65°C |
| Power (Sensor) | Solar powered with rechargeable battery |
| Wind Speed Range | 0.25–50 m/sec (0.5–97 knots) |
| Wind Angle Accuracy | ±0.5° |
| Wireless Range | ≤30 m (98 ft) |
| Base Station Dimensions | 90 mm H x 38 mm (3.54" x 1.50") |
| Base Power Consumption | 1.2 W (<100 mA at 12 V DC) |
| NMEA 2000 Load | 2 LEN |
Pro Tips for Maximizing Your WS320
Pair it with B&G's Triton² or Zeus series for seamless integration—wind data overlays on charts, triggers laylines, and fine-tunes polar tables. Clean the arms seasonally with fresh water to banish salt buildup, and calibrate via your network for peak precision. For racing edges, log data to analyze puff patterns post-race.
Frequently Asked Questions
Is the B&G WS320 suitable for masts taller than 20 meters?
Yes, it's optimized for masts up to 25 meters (80 feet), though performance can vary with installation specifics and local conditions like obstructions.
How does the wireless range perform in real sailing scenarios?
Expect reliable connectivity up to 30 meters line-of-sight. Mounting the base low and keeping it clear of metal interference ensures consistent data.
Does the WS320 require wiring through the mast?
No—it's fully wireless from sensor to base station, making it perfect for quick retrofits without mast work.
What powers the wind sensor, and how long does it last?
Solar charging with an internal rechargeable battery handles extended use. Smart management keeps it operational for weeks without direct sun.
Can the WS320 integrate with my existing NMEA 2000 network?
Absolutely. The included base station plugs right in via Micro-C, outputting data compatible with B&G, Simrad, and Lowrance displays.
How accurate is it compared to wired wind sensors?
It matches wired performance: ±0.5° angle and ±0.1 m/sec speed accuracy, validated in extensive wind tunnel and field tests.
Is it rugged enough for offshore racing?
Yes, with IPX7 protection, extreme temp tolerance, and 200,000+ hours of testing, it's built for harsh marine environments.
B&G USA 0014383001 Attributes
WS320 Wireless Wind Sensor
Includes:
- WS320 Wireless Wind Sensor
- WS320 Wireless interface (Bluetooth)
- Rechargeable battery
- Masthead bracket
- NMEA 2000 drop cable
- Micro-C T joiner
- Fixings kit (Includes pole mount for interface)
A wireless wind sensor from B&G, designed for cruising and club racing sailors. The WS320 wireless wind sensor pack offers a high performance solution, with exceptional data accuracy and improved aerodynamics, which is easy to install and includes all the parts you need.
The WS320 wireless wind sensor is the perfect solution for any sailor looking to get accurate and fast wind data to their instruments, which is easy to install without a cable through the mast.
High Performance
Designed to provide highly accurate wind data in all conditions at all points of sail and heel. WS320 has been benchmarked against multiple different sensors in over 500 individual wind tunnel tests.
No Compromise Wireless
Easy to install and light-weight, ideal for smaller boats – without compromising performance for wireless convenience. WS320 has the same accuracy (both wind angle and wind speed) as the wired version, while outputting wind at a super smooth 5 times every second.
Reliability
As the most exposed sensor on a yacht, the wind sensor – critical for instruments and autopilot steering – must meet an exceptionally high standard. In addition to B&G’s extreme testing programme, the WS320 sensors have been subject to combined field tests of over 200,000 hours.
Features:
- Easy installation
- Smart rechargeable power management
- Superior data accuracy and aerodynamics
- Sensor quality and reliability
"Ws320 Wireless Wind Sensor Kit, Mfg# 000-14383-001, high accuracy, with solar recharging and internal battery. For masts up to 25 meters. Includes Nmea2000 reciever, 6' cable, and \"t\"."
B&G WS320 Wireless Wind Sensor Pack with Wireless Interface Module Related Products
B&G WS320 Wireless Wind Sensor OnlyFrequently Asked Questions (FAQ) About B&G WS320 Wireless Wind Sensor Pack with Wireless Interface Module
Who is the B&G?How to describe B&G WS320 Wireless Wind Sensor Pack with Wireless Interface Module?
What is the instrument function of the product?
Who is the B&G?
How to describe B&G WS320 Wireless Wind Sensor Pack with Wireless Interface Module?
- The WS320 is a wireless wind sensor that measures wind speed and direction, with an integrated masthead mounted display.
- The WS320 is designed for use in the harshest environments, with a sealed enclosure and watertight connections.
- The WS320 features a rechargeable battery that can last up to 10 hours on a single charge.
- The WS320 wireless wind sensor is the perfect solution for measuring wind speed at heights where it's difficult to measure with traditional methods.
- This sensor can be mounted on a masthead or other elevated location and automatically transmit data to a display unit, such as a CR10X.
- The WS320 includes an interface that can be mounted on the masthead or other elevated location, eliminating the need for an additional wireless connection.
What is the instrument function of the product?
- The WS320 is a wireless wind sensor that measures wind speed and direction, with an integrated masthead mounted display.
- The WS320 is designed for use in the harshest environments, with a sealed enclosure and watertight connections.
- The WS320 features a rechargeable battery that can last up to 10 hours on a single charge.
- The WS320 wireless wind sensor is the perfect solution for measuring wind speed at heights where it's difficult to measure with traditional methods.
- This sensor can be mounted on a masthead or other elevated location and automatically transmit data to a display unit, such as a CR10X.
- The WS320 includes an interface that can be mounted on the masthead or other elevated location, eliminating the need for an additional wireless connection.
- Wind direction, wind speed, and wind gust readings are transmitted wirelessly to the NMEA2000 receiver at up to 25 meters.
- Solar recharging system ensures that you will never run out of power.
- Internal battery provides up to 8 hours of continuous operation even in low light conditions.
- Product features: - wireless mouse with a laser sensor for precise tracking and control
- ergonomic design for comfortable use, even after long periods of time
- Features description: - The wireless mouse is equipped with a laser sensor that offers accurate
- WS320 Wireless Wind Sensor Kit High Accuracy With Solar Recharging And Internal Battery. For Masts Up To 25 Meters. Includes NMEA2000 Reciever 6' Cable And
- The WS320 is a high accuracy wind sensor that can be installed on masts up to 25 meters (80 feet).
- It uses a solar panel to recharge the internal battery, and includes a NMEA2000 receiver cable.
