Garmin STRIKER™ Plus 5CV Portable w/GT8HW-IF Transducer
It will be shipped by UPS Ground.
Shipping (3PM)
Within 30 days
Garmin STRIKER™ Plus 5CV Portable w/GT8HW-IF Transducer Product Description
Dominate Ice Fishing with Advanced Sonar Precision
Imagine drilling your hole, dropping your line, and instantly seeing every jig twitch and fish reaction below the ice. The Garmin STRIKER Plus 5CV portable bundle transforms frustrating guesswork into confident bites. Tailored for hardcore ice anglers, this setup pairs a vibrant 5-inch display with a specialized GT8HW-IF transducer that cuts through murky winter waters like a hot knife.
Unlike basic sonar units that blur targets into vague clouds, this CHIRP-powered beast sweeps frequencies continuously. Low-end pulses penetrate deep for structure, while high-end ones sharpen fish arches—giving you separation so precise, you can tell a perch from a pike before it strikes. Anglers report landing trophy walleye faster because they spot subtle movements others miss.
Unlock Custom Maps with Quickdraw Contours
Your local lake's contours change yearly with weather and currents—no stock map nails it. That's where built-in Quickdraw Contours shines. As you fish, it auto-generates high-definition maps with 1-foot detail, storing up to 2 million acres. Mark that honey hole where crappies stack up, and navigate back effortlessly next season.
Pro tip: Fish with buddies and share contours via compatible apps (where supported). Over time, build a personal database rivaling pro charts, saving hours scouting and boosting your catch rates on familiar waters.
Flasher Mode: Your Vertical Fishing Secret Weapon
Stationary jigging demands real-time intel. The integrated flasher displays your bait's depth, lift height, and fish responses in a classic circular sweep—perfect for tip-ups or deadsticking. Watch perch swarm your glow jig or panfish flee a too-aggressive drop, adjusting on the fly.
Ice veterans swear by it for species like bluegill or lake trout, where timing beats tackle. Pair it with A-Scope for a linear view of targets zipping through the beam, minimizing empty hooks.
Built-in GPS: Never Lose Your Edge
High-sensitivity GPS plots waypoints on structures, reefs, or drop-offs. Drift off your spot in whiteout conditions? One tap returns you precisely. It's not just navigation—it's bite repeatability, turning one good day into a season of success.
Bonus: Ultrascroll keeps returns steady at speed, Fish Symbol ID auto-tags targets, and AutoGain dials clarity without fuss.
Rugged Portability for Harsh Conditions
Weighing just 1 lb with IPX7 water resistance, it's ready for slushy holes and sudden squalls. The sunlight-readable WVGA screen (800x480 pixels) stays sharp under glare. Everything packs into a dedicated case: transducer, cables, rechargeable battery, charger, tilt/swivel mount, foam float, and more. Drill, deploy, fish—done.
Transition to open water? Add ClearVü transducers for side/down scanning (compatible options available separately) to reveal bait schools hiding in weeds.
Key Specifications at a Glance
| Feature | Details |
|---|---|
| Physical Dimensions | 7.4” x 4.5” x 2.1” (18.8 x 11.6 x 5.4 cm) |
| Display Resolution | 800 x 480 pixels (WVGA color) |
| Weight | 1.0 lb (0.5 kg) |
| Water Rating | IPX7 |
| Frequencies Supported | Traditional: 50/77/200 kHz; CHIRP (mid/high); ClearVü: 260/455/800 kHz |
| Advanced Features | Split-screen zoom, Ultrascroll, Fish Symbol ID, AutoGain, Adjustable depth line, A-Scope |
What's Included for Total Convenience
- STRIKER Plus 5 fishfinder
- GT8HW-IF ice transducer
- Power/data cable
- Tilt/swivel mount with hardware
- Portable kit: bag, foam float, rechargeable battery, charger
- Documentation and Garmin bumper sticker
One transducer port (4-pin) keeps it simple and dual-purpose.
Frequently Asked Questions
Is the Garmin STRIKER Plus 5CV suitable for beginners in ice fishing?
Absolutely. Its intuitive interface, auto-tuning features like AutoGain, and clear flasher mode make it approachable, while pros love the depth for customization.
How deep can the GT8HW-IF transducer scan through ice?
It excels in shallow to mid-depths typical for ice fishing (up to several hundred feet depending on conditions), with CHIRP optimizing clarity over raw depth.
Can I use Quickdraw Contours maps offline?
Yes, all maps are stored onboard, ready for instant access without cell service—ideal for remote lakes.
Does this bundle work for open-water fishing too?
Yes, the portable design and transducer compatibility extend to boats, with options to add ClearVü for enhanced scanning.
How long does the rechargeable battery last?
Expect 8-12 hours of continuous use, depending on brightness and features—plenty for full-day outings.
Is the display visible in direct sunlight?
Yes, the sunlight-readable WVGA panel ensures crisp visuals even on snowy glare days.
STRIKER™ Plus 5CV Portable w/GT8HW-IF Transducer
5” GPS Fishfinder with Ice-fishing Transducer and Quickdraw Contours Mapping Software
- Bright, sunlight-readable 5” fishfinder with built-in GPS, ice fishing transducer and support for ClearVü scanning sonar
- Includes high wide Garmin CHIRP ice fishing transducer for crisp, clear fish arches and excellent target separation
- Built-in Garmin Quickdraw™ Contours mapping software lets you create and store maps with 1’ contours for up to 2 million acres
- Built in flasher lets you see your jig or weighted bait and the depth of fish as they swim into the sonar beam

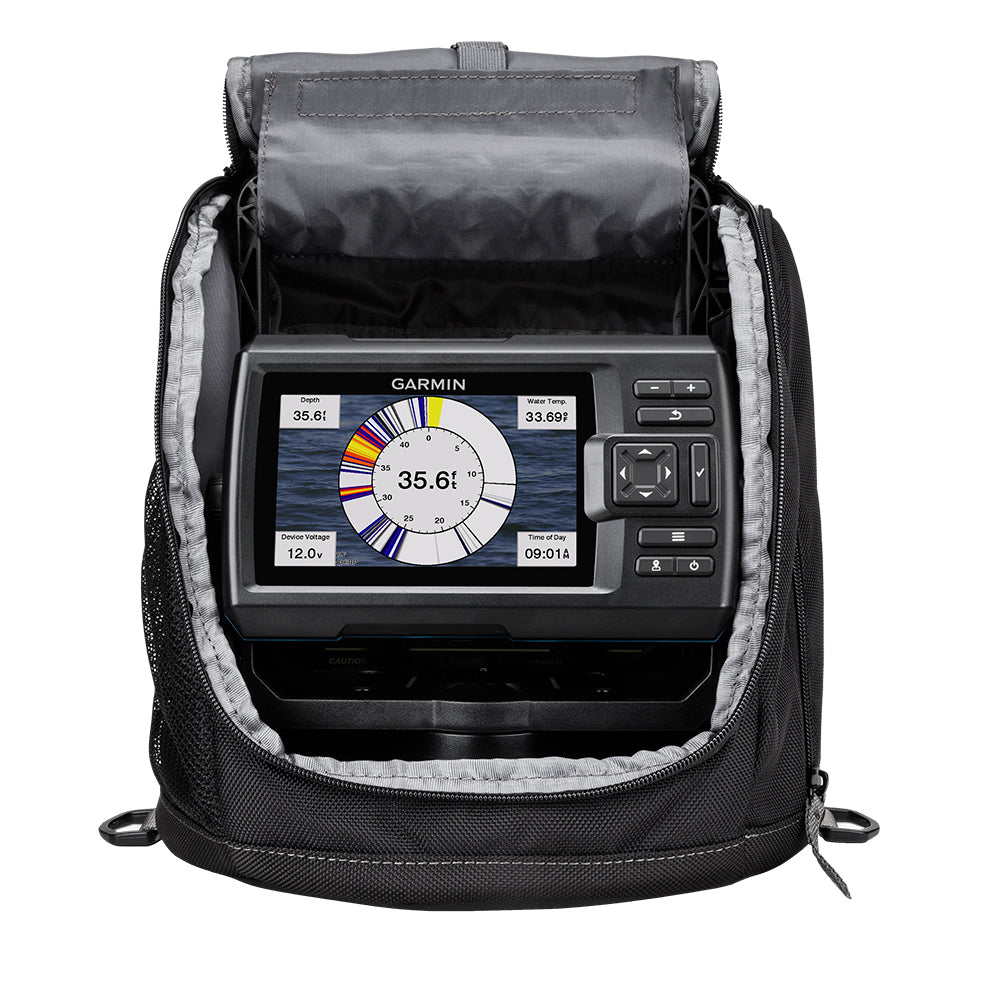

- Portable carrying case holds unit, cables and battery for a successful day on the ice
The 5-inch STRIKER Plus 5 ice fishing bundle features support for ClearVü scanning sonar and includes an ice fishing transducer for crisp, clear fish arches and excellent target separation. Built-in GPS and Quickdraw Contour mapping software let you find and mark your favorite spot and return later. Includes rechargeable battery, charger, tilt/swivel unit mount, foam float and a portable carrying case for it all.
Experience the Clarity of CHIRP
This transducer is designed for ice fishing. CHIRP sends a continuous sweep of frequencies, ranging from low to high, instead of sending just one. When the frequencies return, CHIRP interprets them individually, gathering a wider range of information for crisp, clear fish arches and excellent target separation. The wide 16-24-degree beam angle covers a large area in the water, so you know what’s coming.
Garmin Quickdraw Contours
Nobody knows the waters you fish better than you and your fellow fishermen. While you are fishing the depths, Quickdraw Contours mapping software creates HD fishing maps of the places you’ve been. No special knowledge is required. Now you can store up to 2 million acres of your Quickdraw Contours maps with 1’ contours.
Fish Vertically with Built-in Flasher
STRIKER provides you with both a fishfinder and flasher all in 1 unit. Anytime you are stationary fishing, such as ice fishing or jigging for crappie, the built-in flasher will show your jig or weighted bait and the depth of fish as they swim into the sonar beam. You can even watch how high your jig is being lifted and dropped and whether fish move toward or away from it.
GPS Fishfinder
The built-in, high-sensitivity GPS allows you to mark waypoints for different locations. So, if the fish are biting in 1 spot, you can mark it, and return to it on your next trip. It’s also a great tool for finding your way back to your most productive fishing holes.
Built for You
The STRIKER Plus 5cv fishfinder makes fishing a breeze, and it’s built to work in any environment. The bright, sunlight-readable display gives you a clear view of what is below the ice, even on the brightest days. And the larger screen gives you a better view of what is happening below the ice. The intuitive user interface makes it simple to navigate to whatever feature you need, so you are ready for anything.
Add Garmin ClearVü Scanning Sonar
For warm season fishing, add CHIRP ClearVü scanning sonar capabilities to your STRIKER 5 ice fishing kit. For CHIRP ClearVü scanning sonar, add optional Garmin GT20 CHIRP traditional and CHIRP ClearVü scanning sonar (sold separately). For high-performance CHIRP, purchase a GT22 or GT23 (each sold separately).
In The Box
- STRIKER Plus 5 fishfinder
- GT8HW-IF transducer
- Power/data cable
- Tilt/swivel mount
- Hardware
- Garmin bumper sticker
- Documentation
- Portable fishing kit
- Bag with handle
- Foam float
- Rechargeable battery
- Battery charger
Connections
- Transducer Ports: 1 (4 Pin)
"Fishfinder designed exclusively for Ice Fisherman The Garmin Striker Plus 5cv Ice Fishing Bundle with GT8HW-IF transducer offers a 5\u201d display and exceptional sonar views. The built-in, high sensitivity GPS receiver will allow you to mark waypoints to get back to your hot spot fishing holes, or just to get back to your starting point after a long day. Your Striker Plus 5cv comes with a portable carrying case that holds your unit, cables, and battery, making for a successful day on the ice, and easier than ever to move from one spot to the next. When you purchase the Striker Plus 5cv, you are getting a fishfinder and flasher all in one. If you are ice fishing or jigging, or doing any other sort of stationary fishing, the built-in flasher will show your jig or weighted bait, and show fish as they move into the sonar beam coming to or away from you\u2019re bait. With high wide CHIRP technology, you will have clearer fish arches and better target separation since the included transducer will send a continuous sweep of frequencies ranging from low to high gathering a wider range of information to provide you with. A wider 16 \u2013 24 degree beam angle covers a larger area than traditional sonar images provide so you have a better understanding of what\u2019s around you!"
SKU: NVN-68876
MPN: 010-01872-20
UPC: 753759184254
Garmin STRIKER™ Plus 5CV Portable w/GT8HW-IF Transducer Related Products
Garmin 8-Pin Transducer Extension Cable - 10'Garmin GT10HN-IF Ice Fishing Transducer
Frequently Asked Questions (FAQ) About Garmin STRIKER™ Plus 5CV Portable w/GT8HW-IF Transducer
Who is the Garmin?How to describe Garmin STRIKER™ Plus 5CV Portable w/GT8HW-IF Transducer?
What is the screen size of the product?
Transducer included to the product?
Which transducer included to the product?
What is the transducer type of the product?
Who is the Garmin?
How to describe Garmin STRIKER™ Plus 5CV Portable w/GT8HW-IF Transducer?
What is the screen size of the product?
Transducer included to the product?
Which transducer included to the product?
What is the transducer type of the product?
Save $54 when you buy the Garmin STRIKER™ Plus 5CV Portable w/GT8HW-IF Transducer for only $345 from NVN Marine! Same day shipping before 3pm.
Garmin STRIKER™ Plus 5CV Portable w/GT8HW-IF Transducer Technical Specifications
| Type: | |
|---|---|
| Vendor: |
Garmin |
| Weight: |
11.4 lb |
| Screen Size: |
5" |
| Included Transducer: |
GT8-HW |
| Transducer Type: |
Portable |
| Transducer Included: |
Yes |
| Product Manual: | |
| Product Installation: |
Garmin STRIKER™ Plus 5CV Portable w/GT8HW-IF Transducer User Reviews
Garmin STRIKER™ Plus 5CV Portable w/GT8HW-IF Transducer Shipping & Return
| Shipping Weight: |
11.4 lb |
|---|---|
| Box Sizes: |
10.00 (h) x 10.00 (w) x 13.00 (l) |
| Cubic Feet: |
1300.0 |
| Returnable: |
Yes |
| P65: |
Yes |
