Garmin Right Angle Transducer Adapter - 8-Pin
Garmin Right Angle Transducer Adapter - 8-Pin — Product description
Streamline your marine electronics setup with the Garmin 8-pin right angle transducer adapter, a compact solution designed for boaters and anglers who demand precision and a clutter-free helm. This adapter transforms standard transducer connections into a sleek, space-saving right-angle fit, perfect for confined mounting areas on kayaks, bass boats, or larger vessels where every inch counts.
Seamless Integration for Professional Results
Installing sonar transducers often means wrestling with bulky cables and awkward angles, leading to visible wiring that detracts from your boat's clean aesthetics. This right-angle adapter eliminates that hassle by allowing the 8-pin transducer cable to connect flush against the surface. Boaters report easier routing behind panels or along hulls, reducing snag risks and enhancing overall system reliability during rough waters.
- Space-Optimized Design: The 90-degree bend keeps cables tucked away, ideal for tight transom mounts or multi-device dashboards.
- Durable Construction: Built to withstand saltwater exposure, vibrations, and temperature swings, ensuring long-term performance on the water.
- Plug-and-Play Simplicity: No soldering or custom wiring needed—just connect your existing 8-pin transducer directly to compatible Garmin chartplotters.
Expanded Compatibility Across Garmin Lineup
This adapter pairs effortlessly with a wide range of Garmin marine displays, making it a versatile upgrade for evolving setups. Whether you're running an entry-level echoMAP for weekend fishing trips or a high-end GPSMAP for offshore adventures, it bridges the gap without compromising signal quality or sonar clarity.
Key compatible series include echoMAP, ECHOMAP Plus, ECHOMAP UHD, and select GPSMAP models. It's especially handy for dual-screen configurations or when adding aftermarket transducers like GT8HW or GT52HW, helping maintain crisp CHIRP and ClearVü imaging even in challenging installations.
Installation Tips for Peak Performance
Achieve pro-level results with these practical steps tailored for DIY boaters:
- Prep the Area: Clean the transducer cable end and adapter ports to prevent corrosion buildup.
- Route Strategically: Feed the transducer cable through existing grommets or zip-tie along ribs for strain relief.
- Secure the Adapter: Use marine-grade cable ties or adhesive mounts to position the right-angle connector without tension on the pins.
- Test Thoroughly: Power up your Garmin unit post-install to verify sonar readings—no dropouts or interference.
- Weatherproofing: Apply dielectric grease to connections for extra protection against moisture ingress.
Users often note that this adapter cuts installation time by half compared to straight connectors, freeing you to focus on what matters: finding fish faster.
Why Boaters Trust This Adapter for Reliable Sonar
In the world of marine electronics, reliability trumps all. This adapter maintains full transducer functionality, delivering undistorted sonar cones and accurate depth readings essential for structure scanning or weedline detection. Anglers upgrading from older Garmin units appreciate how it future-proofs their investment, adapting seamlessly to software updates and new transducer tech.
Beyond aesthetics, it minimizes cable wear from constant flexing, extending the lifespan of your entire fishfinding system. Saltwater veterans highlight its role in preventing loose connections that plague straight adapters in high-vibration environments like tournament bass boats.
Frequently Asked Questions
What devices is the Garmin 8-pin right angle transducer adapter compatible with?
It's designed for Garmin echoMAP series including 50dv, 50s, 70dv, 70s; ECHOMAP Plus and UHD models; as well as GPSMAP chartplotters like 1020xs, 1040xs, and 1042xsv. Always check your specific model's transducer port for 8-pin compatibility.
Does this adapter affect sonar performance or signal quality?
No, it passes through all signals unaltered, preserving CHIRP, SideVü, and ClearVü imaging for accurate fish arches and bottom detail.
Can I use this adapter with third-party transducers?
It works with any 8-pin Garmin-compatible transducer, but optimal results come from genuine Garmin units like the GT series for plug-and-play reliability.
Is the adapter waterproof for marine use?
Yes, it's fully sealed against saltwater splashes and submersion when properly connected, making it suitable for exposed transom or trolling motor mounts.
How do I know if my Garmin unit needs this right-angle adapter?
Opt for it in tight spaces where straight cables would protrude or rub, such as compact consoles, kayaks, or multi-unit panels to achieve a factory-fresh look.
What's the best way to maintain the adapter over time?
Rinse with fresh water after saltwater exposure, inspect connections seasonally, and avoid overtightening to preserve pin integrity.
Will this adapter work with my ECHOMAP UHD setup?
Absolutely—it's fully compatible with ECHOMAP UHD models, supporting high-resolution sonar without any adapters or converters needed.
Garmin make products that are engineered on the inside for life on the outside. We bring GPS navigation and wearable technology to the automotive, aviation, marine, outdoor and fitness markets. We believe every day is an opportunity to innovate and a chance to beat yesterday. We offer products with essential utility, leading-edge technologies, compelling features, and exceptional ease-of-use to create clear differentiators our customers appreciate and desire.
Garmin 101226200 Attributes
- Compatibility: Garmin echoMAP ™, ECHOMAP ™ Plus, ECHOMAP ™ UHD, GPSMAP (R), GSD ™ Chart Plotters
- Used To: Connect 8-Pin Transducer To Compatible Garmin device
- Color: Black
Garmin 101226200 Features & Benefits
- 8-Pin Right Angle Adapter Connects The Transducer To Your Compatible Garmin Device To Allow For A Professional Looking Installation In Tight Spaces
- Compatible With ECHOMAP ™ 50dv, 50s, 70dv, 70s, GPSMAP (R) 1020xs, 1040xs, 1042xsv
- Garmin Offer Products With Essential Utility
- Awe-Inspiring Designs, Impeccable Quality, And Superior Reliability
- Limited 1 Year Warranty
Garmin 101226200 Warranties
Right Angle Transducer Adapter - 8-Pin

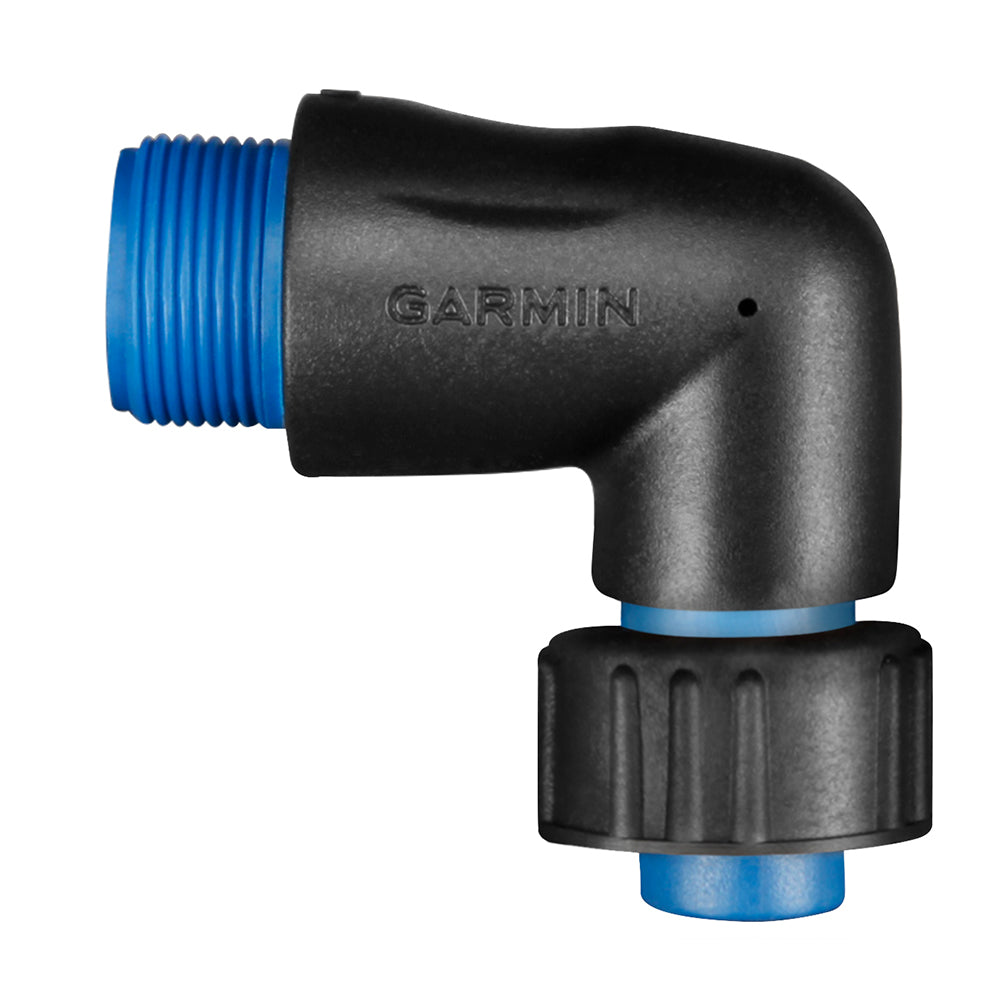

This 8-pin right angle adapter connects the transducer to your compatible Garmin device to allow for a professional looking installation in tight spaces.
Garmin 010-12262-00 is an 8-pin right-angle adapter that connects the sensor to a compatible Garmin device, allowing professional-looking installation in a compact environment.
SKU: NVN-66074
MPN: 010-12262-00
UPC: 753759132316
