Garmin Right Angle Transducer Adapter - 12-Pin

Streamline Your Marine Electronics Setup with the Garmin 12-Pin Right Angle Adapter

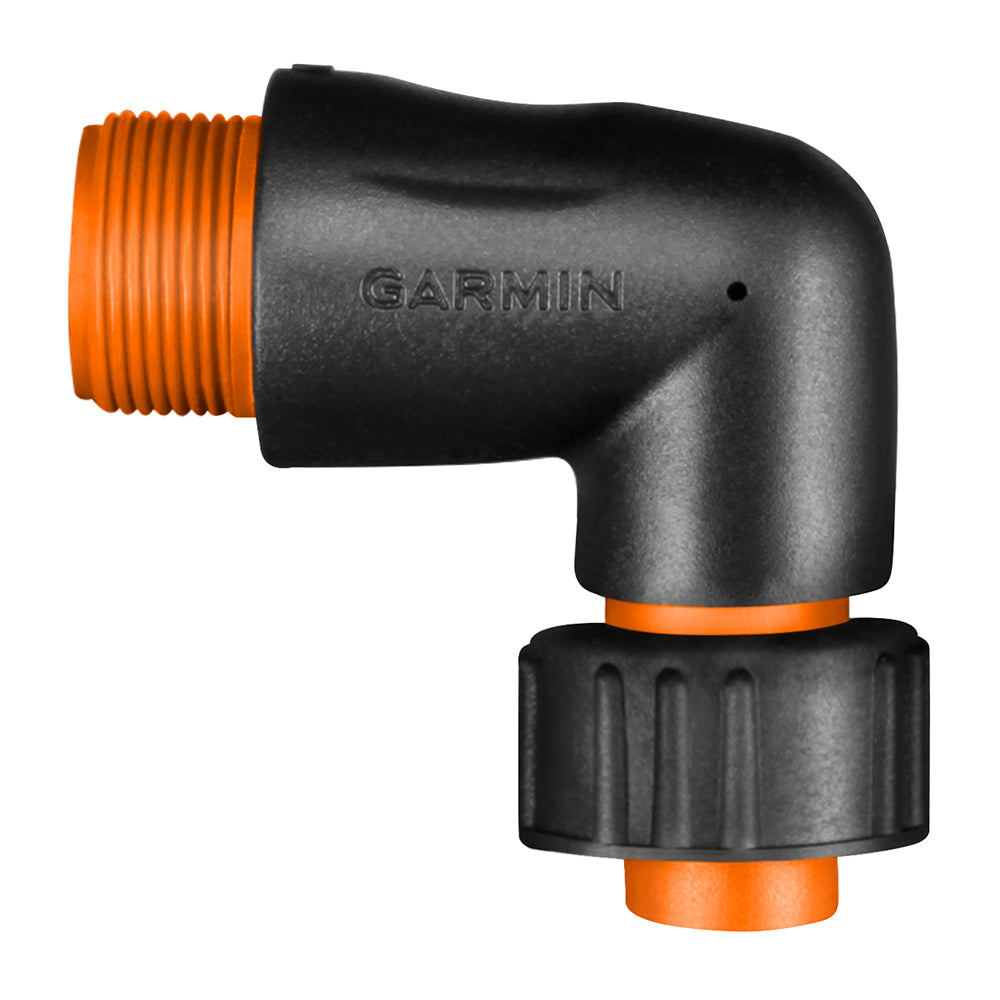

Imagine mounting your Garmin fishfinder or chartplotter on a cramped boat console without the hassle of bulky cables snaking everywhere. That's where the Garmin 12-pin right angle transducer adapter shines. Designed specifically for anglers and boaters who demand a clean, professional-grade installation, this compact black adapter bends the transducer cable at a precise 90 degrees. It routes your sonar signals smoothly into tight spaces, keeping your deck tidy and your focus on the water.

Whether you're upgrading your echoMAP series or fine-tuning a GPSMAP setup, this adapter eliminates cable clutter that can snag gear or vibrate loose during rough seas. It's a small component with big impact—enhancing reliability and making maintenance a breeze.

Key Advantages for Everyday Boaters and Serious Anglers

• Space-Saving Design: The right-angle connection hugs surfaces closely, perfect for bulkheads, dashboards, or under-gunwale mounts where straight cables just won't fit.
• Durability Built for Marine Life: Constructed with rugged materials that resist corrosion, UV exposure, and constant moisture—ensuring long-term performance in saltwater environments.
• Seamless Signal Transmission: No loss in sonar clarity or CHIRP performance; it maintains full data integrity from your transducer to the display unit.
• Easy Integration: Simply plug your 12-pin transducer into the adapter, then connect to your Garmin unit. No soldering, no custom wiring—just plug and fish.

Boaters often overlook cable management until a tangle costs them a fishing spot or a safe run home. This adapter turns potential headaches into hassle-free outings, letting you prioritize what matters: spotting fish and navigating confidently.

Full Compatibility Across Garmin's Marine Lineup

This adapter pairs effortlessly with a wide range of Garmin devices, making it a versatile addition to any setup:

• echoMAP™ series, including CHIRP models like 72sv, 73sv, and 74sv
• ECHOMAP™ Plus, UHD, and Ultra variants
• GPSMAP® units such as 1022xsv and 1042xsv
• STRIKER™ fishfinders for straightforward sonar needs

It's tailored for 12-pin transducers, so check your model's connector type to confirm a perfect match. This ensures you're not just adding hardware—you're future-proofing your system for software updates and accessory swaps.

Pro Tips for Installation and Maintenance

Getting the most from your adapter starts with smart setup:

1. Plan Your Route: Trace the cable path before mounting. Use zip ties or adhesive clips for strain relief, avoiding sharp bends beyond the adapter's angle.
2. Secure Connections: Dry-fit everything first. A light tug test confirms it's locked in place against waves and wakes.
3. Weatherproof It: Apply marine-grade dielectric grease to pins for extra corrosion protection in harsh conditions.
4. Test Thoroughly: Power up and run a sonar scan post-install. Look for crisp bottom contours and clear fish arches—no glitches means success.

Regular checks during off-season storage keep it performing like new. Wipe down with fresh water after saltwater use, and inspect for wear annually.

Frequently Asked Questions

Elevate Your On-Water Experience

For boaters chasing perfection in every detail, this Garmin adapter isn't just wiring—it's the finishing touch on a pro-level electronics array. Cleaner installs mean less distraction, more catches, and setups that last season after season. Pair it with quality transducers and Garmin's intuitive displays for sonar supremacy on any vessel, from kayaks to center consoles.
