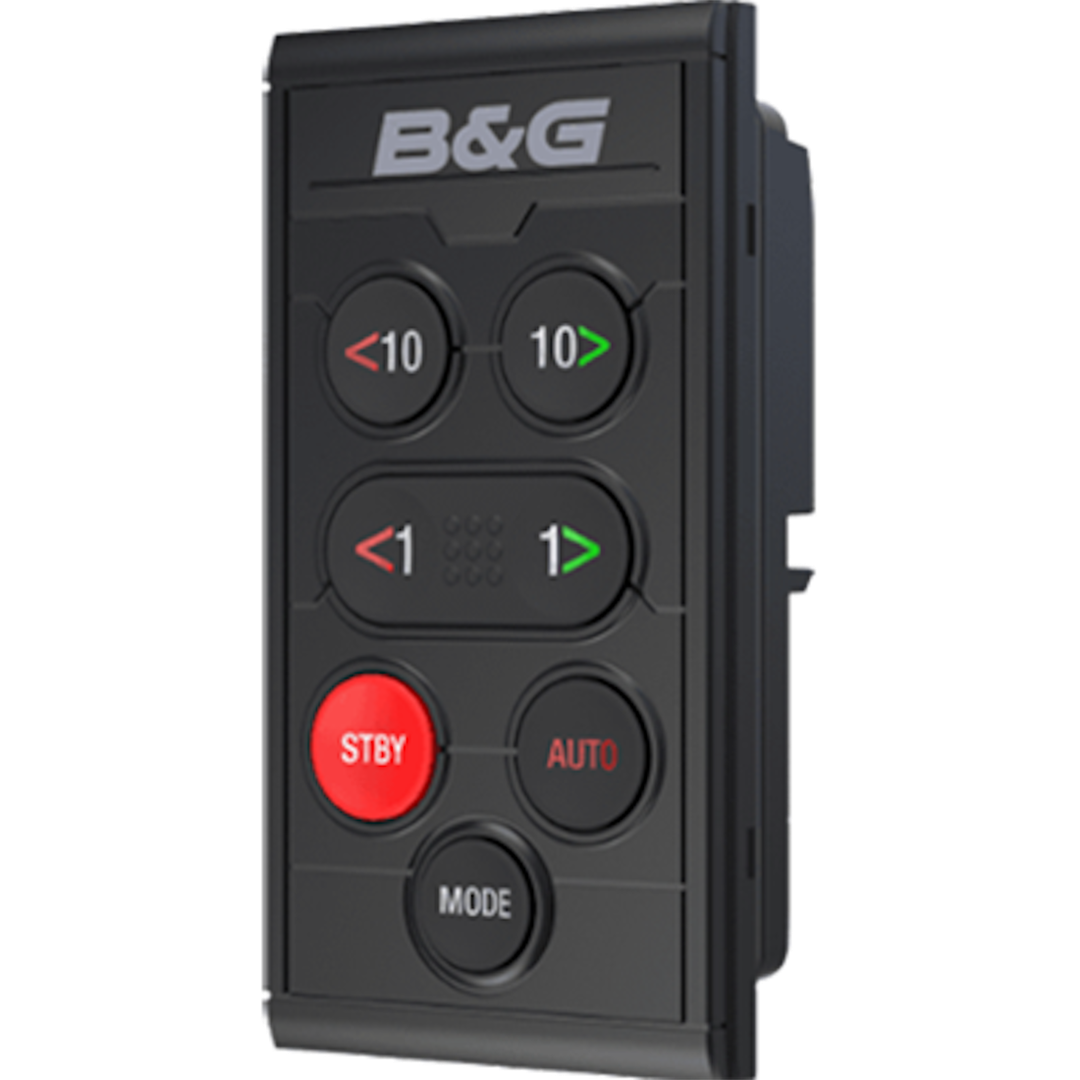

B&G Triton² Autopilot Controller Product Description
Imagine effortlessly handling tacks and gybes on a bustling race course or long offshore passage, all while keeping your focus on the sails and the horizon. The B&G Triton² Autopilot Controller transforms your helm into a command center, pairing seamlessly with a Triton² display to deliver precise, sail-optimized autopilot performance. Designed for serious sailors, this compact keypad unlocks advanced steering modes that respond intuitively to wind shifts and compass headings, making every maneuver smoother and safer.
Unlock Intelligent Sail Steering
At the heart of this controller is B&G's renowned Intelligent Sail Steering technology. Unlike generic autopilots that treat sailboats like power vessels, it adapts to the nuances of sailing—accounting for heel angle, leeway, and true wind data. Switch between compass steering for steady courses and wind steering for maintaining perfect apparent or true wind angles. The Smart Manoeuvre suite simplifies tacking and gybing with dedicated buttons, reducing crew workload during critical moments.
Integration with your multifunction display (MFD) or chartplotter brings waypoint navigation and route following to your fingertips. No more toggling between screens; engage auto modes directly from the seven-button interface, built tough for wet decks and rough seas.
Built for the Demands of Marine Environments
Crafted with black anodized aluminum accents and a rugged design, this controller thrives in harsh conditions. Its IPX7 waterproof rating shrugs off spray and submersion, while the 300mm compass-safe distance keeps magnetic interference at bay. Operating from -15°C to +55°C (-5°F to 131°F), it's ready for everything from polar expeditions to tropical regattas.
Technical Specifications
| Specification | Details |
|---|---|
| Dimensions | 60 x 115 x 32 mm (2.4" x 4.5" x 1.3") |
| Weight | 0.12 kg (0.3 lbs) |
| Power Consumption | 1.4 Watts |
| Network Load | 3 LEN |
| Color | Black |
| Waterproof Rating | IPX7 |
| Humidity Tolerance | Up to 95% RH |
| Compass Safe Distance | 300 mm (1.0") |
| Operating Temperature | -15 to +55°C (5 to 131°F) |
| Storage Temperature | -30 to +70°C (-22 to 158°F) |
What's Included in the Package
- Autopilot Controller keypad
- N2K cable (0.6 m / 2 ft)
- N2K T-joiner
- Suncover for Triton² Pilot & OP12
- Installation template
Seamless Integration for NAC-2 and NAC-3 Systems
Pair this keypad with Triton² displays or B&G MFDs and NAC-2 or NAC-3 autopilot computers via NMEA 2000 for a plug-and-play setup. Sailors upgrading from basic pilots appreciate the low network load and minimal power draw, preserving battery life on extended voyages. Mount it within easy reach—its slim profile fits pedestal guards or binnacle pods perfectly.
Whether you're racing J/24s or cruising a Beneteau, this controller elevates autopilot reliability, letting you sail smarter, not harder.
Frequently Asked Questions
What makes the B&G Triton² Autopilot Controller ideal for sailboats?
It features Intelligent Sail Steering for wind and compass modes, plus Smart Manoeuvre controls for effortless tacking and gybing, optimized specifically for sailing dynamics.
Which autopilot computers is this controller compatible with?
It's designed for use with NAC-2 and NAC-3 autopilot computers, integrating via NMEA 2000 networks.
Is the controller waterproof and durable for offshore use?
Yes, with an IPX7 rating, it withstands immersion and spray, operating reliably from -15°C to +55°C.
What displays work with the Triton² Autopilot Controller?
It pairs directly with Triton² instrument displays or B&G MFDs for full autopilot functionality.
How much power does it consume, and what's its network impact?
Power draw is just 1.4 watts, with a low 3 LEN network load, making it efficient for battery-powered systems.
What's the compass safe distance for installation?
Maintain a 300 mm (1.0 inch) distance from your compass to avoid interference.
Can it handle high humidity environments?
Absolutely, rated up to 95% relative humidity, perfect for tropical or coastal sailing.
B&G USA 0013296001 Attributes
Triton² Autopilot Controller
This intuitive keypad can be combined with a B&G Triton² Display to create a fully-featured autopilot controller, including B&G's Intelligent Sail Steering functionality and Smart Manoeuvre controls.
Overview
This intuitive keypad can be combined with the Triton² Instrument display to create a fully-featured autopilot controller. Benefit from B&G's intelligent sail-specific functionality for compass and wind steering, Smart Manoeuvre controls for easy tacking and gybing, and MFD / chart plotter integration for waypoint and route navigation. Take complete control of your autopilot with a simple seven-button keypad, built for safe and reliable operation in all conditions.
Specifications:
- Dimensions: 60 x 115 x 32mm (2.4" x 4.5" x 1.3")
- Weight: 0.12kg (0.3lbs)
- Power Consumption: 1.4 Watts
- Network Load: 3 LEN
- Color: Black
- Environmental Protection, Waterproof: Waterproof rating: IPx7
- Environmental Protection, Humidity: Up to 95% RH
- Compass Safe Distance: 300mm (1.0")
- Temperature Operating: -15 to +55°C (5°F to +13°F)
- Temperature Storage: -30 to +70°C (-22 to +158°F)
Triton-2 autopilot keyboard Mfg#000-13296-001, when used in combination with Triton-2 Display or B&G Mfd, it can fully control the B&G autopilot. Suitable for Nac-2 or Nac-3 autopilot...
