B&G Triton² Digital Display Product Description

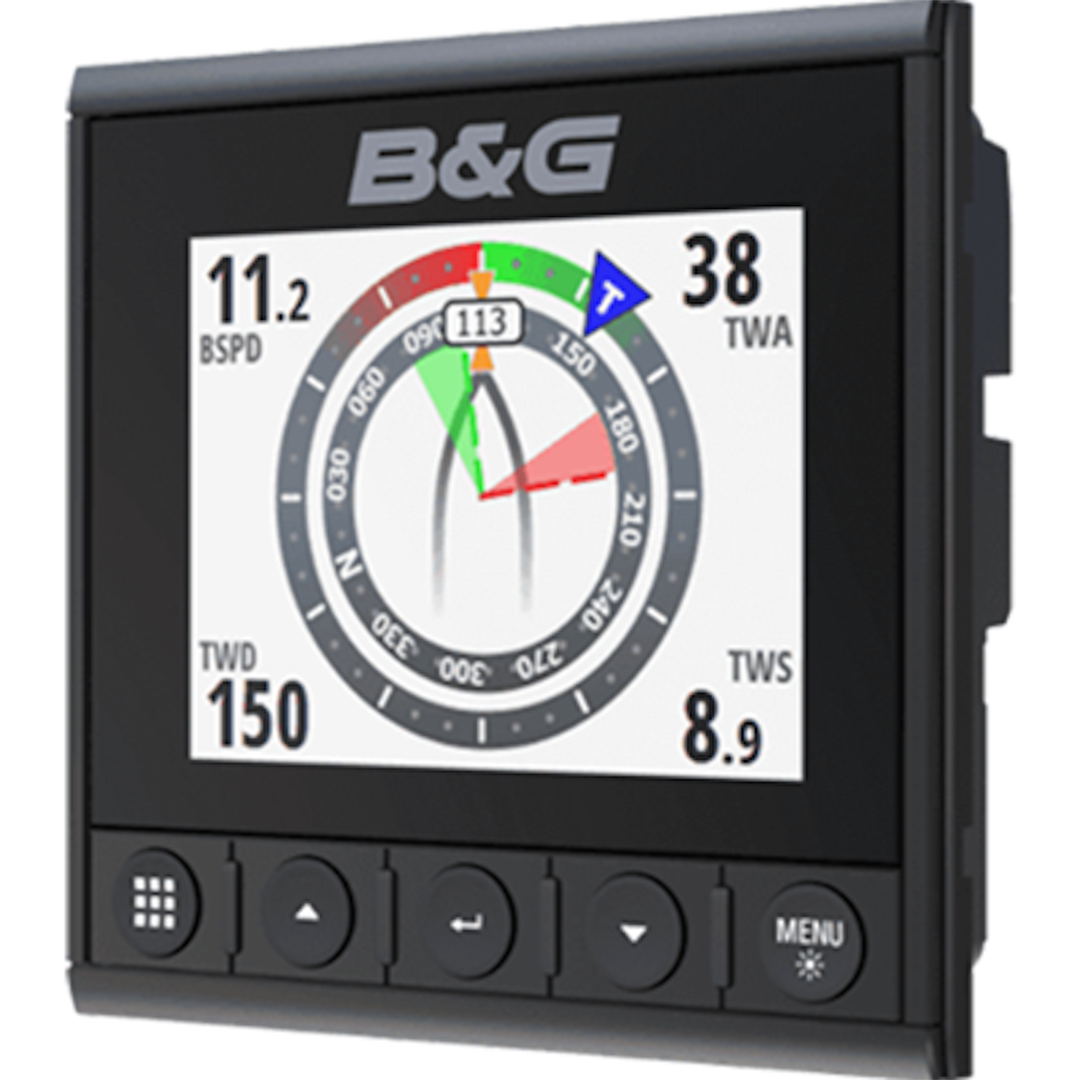

B&G Triton² Digital Display - Professional Marine Instrument with 4.1" Color LCD

Experience uncompromising visibility and precision navigation with the B&G Triton² Digital Display - the ultimate sailing instrument featuring advanced optically bonded LCD technology and comprehensive NMEA 2000 integration. This professional-grade marine display delivers crystal-clear instrument data visualization in all lighting conditions, making it the preferred choice for serious sailors and marine professionals.

Key Features & Benefits

Advanced Display Technology

• Optically Bonded 4.1" Color LCD: Eliminates condensation and fogging with zero-gap optical bonding technology for unmatched clarity in all marine conditions
• Transflective TFT Display: Utilizes ambient light reflection for superior daylight visibility while consuming minimal battery power
• High Resolution: 320 x 240 pixel resolution delivers sharp, detailed instrument readings with 4:3 aspect ratio optimal for marine data display
• Multi-Color Illumination: White daylight mode with selectable red, green, blue, or white night illumination for optimal night vision preservation

Professional Marine Integration

• NMEA 2000 Certified: Full compliance with marine industry standards ensures seamless integration with existing boat electronics systems
• Comprehensive Data Display: Shows wind speed/direction, boat speed, water depth, GPS data, engine parameters, autopilot status, and AIS target information
• Sailing-Specific Features: Advanced sailing algorithms including SailSteer and WindPlot for competitive sailing performance
• Autopilot Integration: Compatible with B&G NAC-2 and NAC-3 autopilot computers; expandable with Triton² Pilot keypad for complete autopilot control

Marine-Grade Construction

• IPX7 Waterproof Rating: Fully protected against water ingress for reliable operation in harsh marine environments
• Ultra-Low Profile Design: At just 8mm mounting depth, the sleek glass helm styling complements modern boat aesthetics without obstructing visibility
• Temperature Resilient: Operates reliably from -15°C to +55°C (5°F to +131°F) with storage capability to -30°C (-22°F)
• Compass Safe: 300mm compass safe distance prevents magnetic interference with onboard navigation equipment

Technical Specifications

Specification	Details
Model Number	000-13294-001
Display Size	4.1 inches diagonal
Display Type	Transflective TFT-LCD, Optically Bonded
Resolution	320 x 240 pixels
Dimensions	4.6" W x 4.5" H x 1.1" D (118 x 115 x 28mm)
Weight	0.7 lbs (0.32 kg)
Power Consumption	1.8 Watts Maximum
Network Load	3 LEN
Network Interface	NMEA 2000 Certified
Waterproof Rating	IPX7
Operating Temperature	-15°C to +55°C (5°F to +131°F)
Storage Temperature	-30°C to +70°C (-22°F to +158°F)
Humidity Rating	Up to 95% RH
Compass Safe Distance	300mm (1.0 inch)
Color	Black with Glass Helm Design
Warranty	3 Years Limited

Installation & Compatibility

The Triton² Digital Display features straightforward front-panel mounting with a clip-on bezel system that conceals four mounting screws for a clean, professional appearance. Single NMEA 2000 connection provides both power and data communication, simplifying installation and reducing cable complexity.

System Compatibility:

• Integrates seamlessly with B&G multifunction displays and glass helm systems
• Compatible with all NMEA 2000 certified marine electronics
• Works with B&G NAC-2 and NAC-3 autopilot computers
• Expandable with Triton² Pilot keypad for complete autopilot functionality
• Functions as standalone instrument display on smaller vessels

What's Included

• Triton² Digital Display Unit
• 0.61m (2-ft) NMEA 2000 Extension Cable
• NMEA 2000 Micro-C T-Connector
• Complete Installation Hardware Kit
• Protective Suncover
• Installation and Operation Manual

Frequently Asked Questions

Can the Triton² Display work without other B&G equipment?

Yes, the Triton² is NMEA 2000 certified and will display data from any compatible marine electronics on your boat's NMEA 2000 network, including sensors and instruments from other manufacturers.

How does the optically bonded display differ from standard marine displays?

Optical bonding eliminates the air gap between the LCD panel and protective glass, preventing condensation, fogging, and reflections while improving contrast and readability in bright sunlight conditions.

What autopilot functions can I control with this display?

The display shows autopilot status information. For full autopilot control including course changes, wind angle adjustments, and tacking commands, you'll need to add the optional Triton² Pilot keypad.

Is professional installation required?

While the Triton² is designed for straightforward installation, professional installation is recommended to ensure proper NMEA 2000 network integration and optimal performance. ABYC-certified marine technicians can ensure compliance with marine electrical standards.

What data can be displayed on the Triton²?

The display shows any alphanumeric data present on your NMEA 2000 bus, including wind speed/direction, boat speed, water depth, GPS position/course/speed, engine RPM/temperature/pressure, battery voltage, AIS targets, and autopilot status.

Transform your boat's navigation capabilities with the precision and reliability of B&G's advanced marine instrumentation. The Triton² Digital Display represents decades of sailing expertise engineered into a compact, powerful instrument that delivers professional-grade performance for serious mariners.

B&G Triton-2 Color Instrument DisplayThe Triton-2 is a smart multi-purpose instrument featuring a full colour display and modern glass helm styling. View wind, speed, depth, engine data, autopilot status and more at a glance, or add the optional Triton keypad to take full control of your autopilot system. The Triton-2 integrates brilliantly with B&G multifunction displays and glass helm systems, or can function as a standalone instrument display and autopilot controller aboard smaller vessels.

B&G USA 0013294001 Attributes

• Dimensions: 4.6''W x 4.5''H x 1.1''D
• Display: 4.1'' color LCD
• Interface: NMEA 2000
• Main Functions: Depth, Speed, Temp, Wind
• Other Functions: Various alphanumeric data present on the NMEA 2000 bus.
• Resolution: 320 x 240 Pixels
• Sensors Included: None

B&G USA 0013294001 Features & Benefits

• Optically bonded 4.1-inch colour display
• Display wind, speed, depth, engine data, autopilot status and more
• Intuitive operation
• Easy installation
• Add an Triton keypad for full autopilot control
• Compatible with NAC-2 and NAC-3 autopilot computers
• Low-profile glass helm design; Low power consumption
• Advanced AIS, receive AIS messages and call DSC targets* (*Compatible VHF required)
• Certified NMEA 2000 connectivity
• Limited 3 Year Warranty

Triton² Digital Display

Multi-purpose sailing instrument and autopilot display with a 4.1" color screen, optically bonded for zero condensation and featuring trans-flective LCD technology for exceptional contrast and visibility in all lighting conditions. 8mm mounting height matches other B&G MFD's and system component.

The full-colour Triton² Display provides sailors with a clear visual representation of key instrument data including Speed, Depth, Wind, Heading, AIS targets, GPS data and more.

An Optically Bonded display means absolutely zero condensation or fogging, while transflective LCD technology provides exceptional contrast and visibility - day or night - while consuming less power than traditional backlight-only displays. The flexible, NMEA 2000® certified, Triton² Display can be integrated into a wider navigation system and also be combined with a Triton² Pilot keypad and NAC autopilot computer to create a complete autopilot control system, featuring B&G sail-specific autopilot steering algorithms.

Features:

• Optical Bonding Sporting an Optically Bonded 4.1" LCD display, Triton² allows you to see clearly in all conditions with its large clear color display 100% free from condensation or fogging
• Efficient LCD Technology: Transflective LCD technology uses reflected ambient light to enhance day-time visibility, providing the clearest sailing dedicated display available. LED backlighting provides highly adjustable illumination when required, making Triton² exceptionally efficient and extending time available from your battery capacity
• Easy to Use: Triton² provides simple on-screen menus controlled by soft-touch and reliable waterproof buttons
• Intuitive design makes it easy to configure and use your display

• Low Profile Design: At just 8mm thin the Triton² instrument adds a sleek look to any boat
• Nearly half the dimension of its thick competitors, Triton² won't get in the way, catch ropes or offend the eye!

• NMEA 2000® Certified: NMEA 2000 certification means you can be confident when adding Triton² to an existing NMEA 2000 system. NMEA 2000 certification also opens up a wide variety of future expansion options for your Triton² system
• Easy Installation: A straight-forward front mounting method and a clip-on bezel over the (4) mounting screws combine with a single NMEA 2000 connection carrying both power and networked data

• Autopilot Integration: Triton² will display B&G Pilot data on a clear status screen

Specifications:

• Dimensions: 118 x 115 x 28mm (4.6 x 4.5 x 1.1")
• Weight: 0.32 kg (0.7 lbs)

• Power Consumption: 1.8 Watts (MAX)
• Network Load: 3 LEN

• Color: Black
• Display Size: 4.1" (diagonal). 4:3 Aspect ratio

• Display Type: Transmissive TFT-LCD, bonded. White LED backlight
• Dsiplay Resolution: 320 x 240 pixels

• Illumination: White for day mode. Red, green, blue or white for night mode
• Environmental Protection, Waterproof: IPx7

• Environmental Protection, Humidity: up to 95% RH
• Compass Safe Distance: 300mm (1.0")

• Temperature Operating: -15 to +55°C (5°F to +131°F)
• Temperature Storage: -30 to +70°C (-22 to +158°F)

The Triton 2 multifunction display provides a clear display. Get information about wind, speed and depth. Simple menu and very easy-to-use button controls. It is very easy to install and has a low-key design.
