Garmin Trolling Motor Adapter Kit
- "GPSMAP xs Series"
- "GSD 25 Premium Sonar Module"
- "GSD 26 CHIRP Professional Sonar Module"
- "Plastic Transom Mount Transducer with Depth & Temperature - Airmar TM150M"
Shipping (3PM)
Within 30 days
Garmin Trolling Motor Adapter Kit Product Description
Upgrade your fishing setup with a reliable way to position your high-performance transducer right where it counts—on the trolling motor shaft. This adapter kit transforms your standard transom-mount sensor into a forward-facing powerhouse, delivering sharper sonar returns and more precise fish-tracking capabilities during those critical trolling passes. Anglers who demand crystal-clear underwater intelligence, especially in shallow waters or around structure, swear by this straightforward mounting solution.
Why This Adapter Kit Elevates Your Sonar Game
Standard transom mounts work fine for basic depth readings, but when you're maneuvering slowly with a trolling motor, a forward-mounted setup shines. By relocating your CHIRP-enabled transducer closer to the bow and lower in the water column, you minimize interference from the hull and propeller cavitation. The result? Enhanced target separation, better bottom detail, and fewer false echoes that plague rear-mounted units.
- Superior Signal Quality: CHIRP technology paired with optimal positioning means wider frequency sweeps for identifying baitfish schools versus gamefish with ease.
- Stealthy Deployment: Keeps your transducer tucked away from snags and debris common in weedy bays or rocky points.
- Versatile for Multiple Techniques: Perfect for finesse tactics like dragging jigs or finesse worms, where every detail matters.
- Durable Construction: Engineered with rugged plastics and a secure metal clamp to withstand the rigors of repeated launches and saltwater exposure.
Effortless Installation for Quick Setup
Getting your transducer trolling-motor ready takes minutes, not hours. No special tools required beyond a screwdriver—just follow these proven steps tailored for most popular electric motors like Minn Kota or MotorGuide models.
- Clean the transducer and motor shaft thoroughly to ensure a snag-free fit.
- Slide the plastic adapter ring over the shaft, positioning it at your preferred depth (typically 12-18 inches below the waterline).
- Secure the metal band clamp snugly around the shaft, threading it through the adapter slots for rock-solid hold.
- Attach the transducer to the adapter plate using the provided pan-head screws, aligning the cable exit to avoid pinching.
- Route your transducer cable along the motor arm, securing with zip ties, and connect to your chartplotter or black box sonar.
Pro Tip: Test the setup in shallow water before hitting the tournament trail. Adjust the angle slightly downward for optimal down-scan coverage or parallel for side-imaging sweeps.
Seamless Integration with Top Garmin Systems
This kit pairs flawlessly with advanced Garmin sonar platforms, unlocking their full potential on the water. Whether you're running a touchscreen chartplotter or a dedicated premium sounder module, the adapter ensures plug-and-play simplicity.
- GPSMAP xs Series chartplotters for all-in-one navigation and sonar fusion.
- GSD 25 Premium Sonar Module, ideal for high-resolution down and side imaging.
- GSD 26 CHIRP Professional Sonar Module for tournament-level target discrimination.
- Specifically designed for the Airmar TM150M plastic transducer, with its robust depth and temperature sensing.
Bonus: Many users report compatibility tweaks for similar CHIRP heads, but always verify your model's shaft diameter (usually 1-1.5 inches) for the clamp's grip.
Maximize Performance: Angler-Tested Strategies
Once mounted, dial in your gains for peak performance. Start with medium CHIRP range (80-160 kHz) for general structure scanning, then switch to high for pinpoint jig tracking. In current-heavy rivers, the forward position cuts through turbulence better than transom setups.
For bass chasers: Pair with split-shot rigs over submerged timber—the clean cone angle reveals subtle rod taps from finicky fish. Walleye hunters appreciate the temp sensor's accuracy for locating thermoclines during night bites.
Maintenance is key to longevity. Rinse with freshwater after brackish trips, inspect screws for corrosion, and loosen the clamp seasonally to prevent shaft impressions.
Frequently Asked Questions
Will this adapter fit most trolling motors?
Yes, the adjustable metal band clamp accommodates shafts from 1 to 1.5 inches in diameter, making it compatible with popular brands like Minn Kota, MotorGuide, and Haswing models.
Does it work with LiveScope or other forward-facing sonars?
This kit is optimized for the Airmar TM150M CHIRP transducer. For LiveScope heads, check Garmin's dedicated LiveScope motor mounts, as cable routing and pod shapes differ.
How does mounting on the trolling motor improve readings?
Forward positioning reduces hull shadows and motor noise, providing clearer, more consistent sonar arcs—especially vital for low-speed presentations.
Is the kit suitable for saltwater use?
Absolutely. The plastic components and stainless hardware resist corrosion, but regular rinsing extends life in harsh marine environments.
Can I install it myself without drilling?
No drilling needed. Everything secures with screws and clamps for a clean, reversible install that preserves your motor's warranty.
What if my transducer cable is too short?
Garmin offers extension cables for longer runs. Measure from motor head to display first, adding 10% buffer for clean routing.
Does it affect trolling motor performance?
Minimal drag thanks to the streamlined profile. Users report no noticeable speed loss or steering issues at spot-lock speeds.

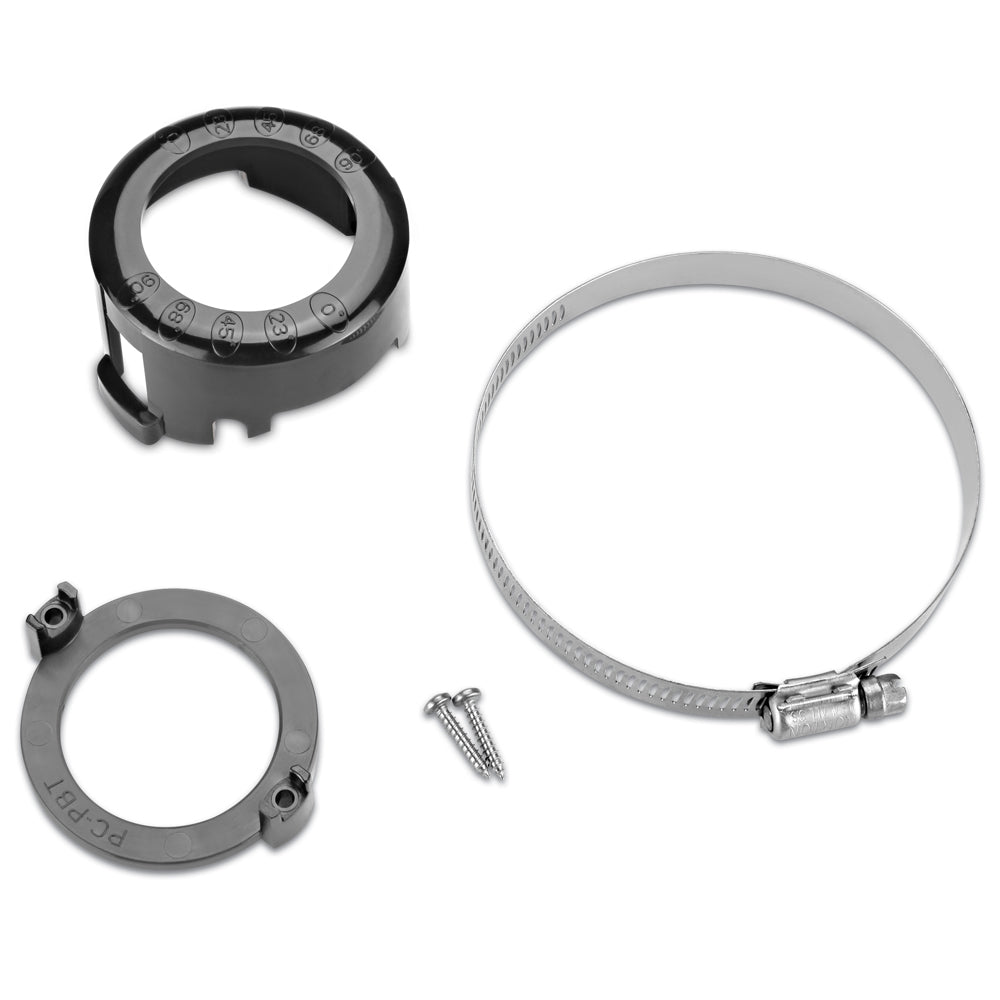

Mount your Airmar TM150M transducer with CHIRP technology to your trolling motor with this adapter kit. Contents include two 3/4" pan head screws, a plastic trolling motor adapter ring, a plastic trolling motor adapter, a metal band clamp and instructions.
Compatible Devices:
- GPSMAP® xs Series
- GSD™ 25 Premium Sonar Module
- GSD™ 26 CHIRP Professional Sonar Module
- Plastic Transom Mount Transducer with Depth & Temperature - Airmar TM150M
"GarminThe GARMIN Trolling Motor Adapter Kit is brand new. GARMIN Trolling Motor Adapter Kit Mount your Airmar TM150M transducer with CHIRP technology to your trolling motor with this adapter kit. Contents include two 3\/4\" pan head screws, a plastic trolling motor adapter ring, a plastic trolling motor adapter, a metal band clamp and instructions."
Frequently Asked Questions (FAQ) About Garmin Trolling Motor Adapter Kit
Who is the Garmin?How to describe Garmin Trolling Motor Adapter Kit?
What is the type of the product?
Who is the Garmin?
How to describe Garmin Trolling Motor Adapter Kit?
What is the type of the product?
Save $5 when you buy the Garmin Trolling Motor Adapter Kit for only $24 from NVN Marine! Same day shipping before 3pm.
