Rigid Lighting 37117 Driving/ Fog Light

Rigid Lighting 37117 Driving/ Fog Light Product Description

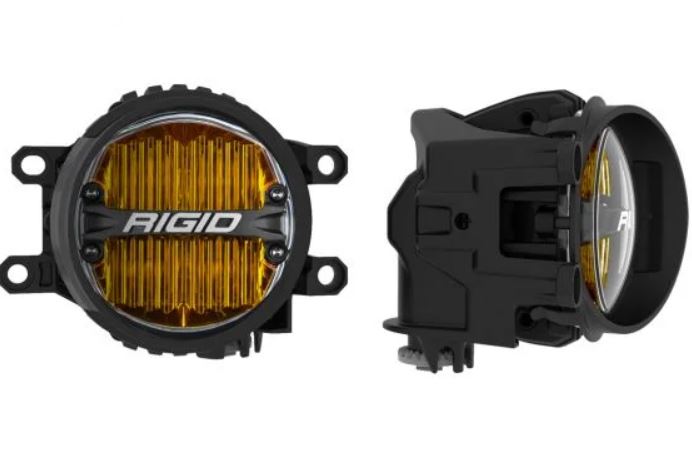

RIGID introduces the all-new 360-Series family of LED lights. The optimized beam patterns project up to 8,600 raw lumens and are protected by an aluminum housing, features a blacked-out circuit board, prominent RIGID branding, and limited lifetime warranty making them the most robust and useful round lights on the market. Choose between a 4 Inch or 6 Inch light, preferred backlight color, and beam pattern for a customized experience and look. RIGID’s 360-Series feature beam patterns available from 17 Degree to 60 Degree, offering an option for any application. RIGIDs 360-Series round lights seamlessly integrate into multiple OEM applications and makes it easier than ever to Own The Night.

Rigid Lighting 37117 Attributes

• Bulb Type: LED
• Beam Type: Fog Beam
• Shape: Round
• Diameter: 4 Inch
• Length/ Height: Not Applicable
• Width: Not Applicable
• Light Color: Yellow
• Wattage: 30 Watt
• Voltage Rating: 9 To 36 Volt
• Mounting Style: OE Mount
• Quantity: Set Of 2
• Ampere Rating At 12 Volts: 2.14 Amp
• Lumens: 3100 Raw Lumens
• Bulb Specifications: 4 Yellow LED Bulbs
• Lens Material: Polycarbonate
• Housing Color: Black
• Housing Material: Aluminum
• Includes: With Mounting Hardware
• Estimated Install Time (Hours): 1.5

Rigid Lighting 37117 Features & Benefits

• High Grade Alloy Housing And Heatsink
• Reverse Polarity Protection
• SAE J583 Compliant Street Legal LED Fog Light
• Impact Resistant Polycarbonate Lens
• Integrated Thermal Management System
• Pressure Equalizing Vent; 9-36 VDC Operation; Removable Bezel For Color Matching
• IP68 Rated - Dust, Water Ingress And Over, Under Voltage Protection; RoHS Compliant
• Removable Bezel And Side Fairings For OEM Applications; Operating Temp -40 Degree Fahrenheit To +145 Degree Fahrenheit
• Flying Leads For Universal Installation
• Limited Lifetime Warranty

Rigid Lighting 37117 Installation Instructions

• 37117_INS.pdf
