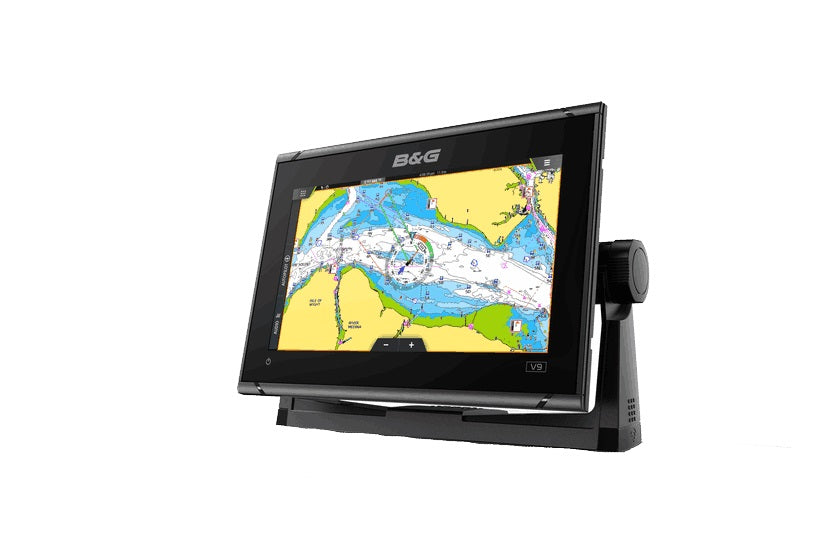

B&G VULCAN 9FS 9 Display No Transducer Basemap
Free Ground Shipping (2-6 Days Delivery Time)
Shipping (3PM)
Within 30 days
B&G VULCAN 9FS 9 Display No Transducer Basemap Product Description
Discover Seamless Navigation for Your Sailboat
Imagine charting a course through foggy waters or navigating tight channels with confidence—thanks to the intuitive design and advanced sonar capabilities of this multifunction display. Tailored for mid-sized sailboats, it blends cutting-edge chart plotting, depth sounding, and forward-looking sonar into a sleek, glass-dash aesthetic that elevates your helm without clutter. Sailors appreciate its sailing-specific tools that turn complex data into actionable insights, helping you optimize routes, predict laylines, and avoid hazards even when charts fall short.
With built-in Wi-Fi for wireless updates and connectivity, plus seamless integration across your onboard systems, it transforms your boat into a smart, responsive command center. Whether you're racing, cruising, or exploring uncharted bays, this display delivers the clarity and control serious sailors demand.
Sailing-Specific Features That Make a Difference
- ForwardScan Sonar for Collision Avoidance: Peers ahead up to 8x your depth, revealing shallow spots and bottom structure before you reach them—ideal for unfamiliar anchorages or rocky coastlines.
- SailSteer and Laylines: Visualize true wind angles, tacking points, and optimal sails with real-time polar data integration, shaving minutes off your race times or easing long passages.
- Radar Ready (3G/4G): Overlay radar images on charts for unmatched situational awareness during night sails or squalls, spotting squalls or traffic early.
- Advanced Networking: Plugs into NMEA 2000, H5000 instruments, autopilots, and even C-Zone for circuit control—unify your electronics for one-touch adjustments.
- Customizable Interfaces: Split-screen layouts let you monitor wind plots, GRIB weather overlays, and AIS targets simultaneously, all on a vibrant 9-inch widescreen.
- Audio and Remote Control: Fusion music integration keeps the vibe right, while ZC remotes let you adjust from anywhere on deck.
These aren't just features; they're tools honed from decades of sailor feedback, ensuring you stay ahead of the wind and waves.
Reliable Performance in Harsh Marine Conditions
| Category | Specification |
|---|---|
| Mechanical/Environmental | |
| Casing | PC/ABS semi-gloss black |
| Operating Temperature | -15°C to +55°C (+5°F to +131°F) |
| Water Ingress Protection | IPX6 and IPX7—handles heavy spray and submersion |
| Weight (display only) | 1.315 kg (2.9 lbs) |
| Screen Brightness | 1200 nits for sunlight readability |
| Resolution | 800 x 480 pixels (wide format) |
| Viewing Angles | 70° L/R, 50° top, 60° bottom |
| Electrical | |
| Power Supply | 10-17 V DC reverse polarity protected |
| Current Draw (max brightness, sonar off) | 1 A at 13.6 V |
| Standby Mode | Ultra-low power for extended anchoring |
| Processor | iMX6 single core for smooth operation |
| NMEA 2000 | 1 Micro-C port (1 LEN load) |
| Card Slots | Dual microSD for charts and data logging |
Built tough for the sea, with low power draw that won't drain your batteries on multi-day trips.
Everything You Need for Quick Installation
- The 9-inch display unit
- Protective sun cover
- Edge bezel for flush mounting
- Dash/surface mount kit with knobs
- 4-pin power/data cable
- Gimbal bracket for flexible positioning
Low-profile options mean a clean install that looks factory-fresh, perfect for retrofits on classic yachts or modern cruisers.
Pro Tips for Maximizing Your Setup
Pair it with high-res charts for pinpoint accuracy, and enable WindPlot to analyze patterns over passages. For racing, load custom polars via SD card. Network it with existing B&G sensors for wind, speed, and heel data that feeds directly into layline calculations—turning raw numbers into winning strategies.
B&G Vulcan 9 FS 9"" Multifunction display
Model: 000-13214-001- Easy to use multi-touch user interface
- Glass dash styling
- Super bright widescreen display
- Radar integration
- Built in Wi-Fi connectivity
- Built in 10 Hz, high sensitivity GPS antenna
- Dual Micro SD card slots
- Built in echosounder (Broadband & Chirp)
- Built in ForwardScan sonar
- Operates with ZC1 and ZC2 Remote controller
- Advanced NMEA2000 networking
- BEP C-Zone Integration
- Fusion Link and sonicHub2 Audio Support
- AIS SARTs
- NMEA Data Logging
- GRIB Weather support
- H5000 system integration
- SailSteer, Laylines with Sailing Time, WindPlot
- Adjustable page split ratios and panel layouts
- Best in Class Cartography support
The B&G Vulcan9 FS Display is a powerful all-in-one Chart plotter and depth sounder for mid sized sail boats. Vulcan9 FS incorporates B&G’s forward looking collision avoidance sonar technology for safe passage making in areas where chart accuracy is uncertain. Vulcan9 includes B&G 3G and 4G Radar support giving the user ultimate situational awareness for passage making at night and in poor weather. Vulcan9 will also connect to B&G sailing instruments and autopilot systems for a fully integrated electronics package. No physical buttons and low profile mounting options makes Vulcan9 one of the cleanest and most integrated looking navigation device for aftermarket installs. Combine this with an extensive set of advanced sailing software features inherited from it’s bigger brother, the Zeus2, and the Vulcan 9 is the go-to standalone navigation display for the aspiring sailor.
Specifications| Mechanical/Environmental | |
| Casing | PC/ABS |
| Operating temp | -15°C to +55°C (+5°F to +131°F) |
| Water ingress | IPX6 and 7 |
| Weight (excluding mounting hardware) | 1.315 kg (2.9 lbs) - GO9 XSE |
| Screen brightness | 1200 nits |
| Screen resolution | 480 x 800 (H x W) |
| Viewing angle in degrees (typical value at contrast ratio = 10) | L/R: 70, top: 50, bottom: 60 |
| Electrical | |
| Operating voltage | 10 - 17 V DC |
| Current draw at 13.6 V (sonar off, max B/L) | 1 A |
| Low power standby mode | yes |
| Protection | reverse polarity and temporary over-voltage to 36 V |
| Alarm output current | 1 A max |
| Processor | iMX61 single core |
| NMEA 2000 (compliant) | 1 port (Micro-C male) -,network load 1 LEN : 1 combined port Power and NMEA 2000 (7 pin connector) |
| Card reader | Dual microSD |
What's in the Box:
- Vucan 9 Display
- Suncover
- Edge Bezel
- Dash Mount Kit
- 4-Pin Power Cable
- Gimbal mounting bracket and knobs
Buy with the best price B&G VULCAN 9FS 9 Display No Transducer Basemap for only $1099 from NVN Marine! Same day free shipping before 3pm.
B&G VULCAN 9FS 9 Display No Transducer Basemap Technical Specifications
| Type: | |
|---|---|
| Vendor: |
B&G |
| Weight: |
10.14 lb |
