Springfield builds the pedestals and mounts that hold your seats and tables. Match the post system, height, and swivel to your boat and how you fish or cruise. Choose the right pedestal system A comfortable secure seat starts with the right pedestal and Springfield Marine has built seat mounting systems for boats for decades. This collection covers pedestal posts swivel bases mounting hardware seat slides and table packages. Picking the right setup comes down to the mounting system the post height and diameter and the swivel and slide features you want. Pick a pedestal system Springfield offers a few mounting systems and they are not interchangeable. Taper Lock uses a tapered post that locks into a matching base. Plug In...
5-Legged Deck Base Caster Replacement - 75mm with Brake Urethane5-pack caster replacements for a 5-legged deck base. SKU: NVN-111244 MPN: 2100340 UPC:
KingPin™ Unintentional Detach Retention Cup - PlasticReplacement standard post pin for use in KingPin™ standard base. SKU: NVN-111242 MPN: 2100175 UPC: 038132940529
KingPin™ Base Socket CoverPlastic KingPin™ cover keeps sockets clear when not in use. Use on KingPin™ 3/4″ pin base. (sold as each). SKU: NVN-111241 MPN: 2100094 UPC: 038132910898...
SpringLock™/Clip-Lock™ Base Socket Cover3/4″ Deck Base Socket Cover fills the opening when not in use, creating a flush surface. (sold as pairs). SKU: NVN-111238 MPN: 2100091 UPC: 038132590915...
Brass KingPin™ BushingBrass replacement bushing for KingPin™ base. SKU: NVN-111237 MPN: 2100077 UPC: 038132590779
Support Bushing KitReplacement bushing kit and V-bumper for pivot brackets on Guardian Deluxe and Standard heads to reduce abrasion on the lower unit. SKU: NVN-111235 MPN: 2100074 UPC:...
Bolt-On Clevis PinReplacement tension clip between the extrusion and bolt-on T-brace. SKU: NVN-111234 MPN: 2100073 UPC: 038132915862
Nylon KingPin™ BushingNylon replacement bushing for KingPin™ base (sold as each). SKU: NVN-111231 MPN: 2100055 UPC: 038132590557
KingPin™ Taper-Lock™ AdapterInserts into Taper-Lock™ base to accept KingPin™ posts or mounts. SKU: NVN-111226 MPN: 2100032 UPC: 038132590328
Spring-Lock™ Power Pedestal Repair KitRepair kit for Spring-Lock™ Power-Rise pedestals. SKU: NVN-111225 MPN: 2100031 UPC: 038132590311
Spring-Lock™ Replacement Post BushingReplacement bushing for the top of the non-locking Spring-Lock™ post. SKU: NVN-111223 MPN: 2100013 UPC: 038132910409
Spring-Lock™ Replacement End CapReplacement Spring-Lock™ end cap for securing the locking latch in the post. SKU: NVN-111222 MPN: 2100012 UPC: 038132910416
Spring-Lock™ Replacement Locking LatchSpring-Lock™ post base locking mechanism replacement latch. SKU: NVN-111221 MPN: 2100011 UPC: 038132910423
Spring-Lock™ Replacement Seat Mount BushingNon-locking Spring-Lock™ seat mount replacement bushing. SKU: NVN-111220 MPN: 2100010 UPC: 038132590106

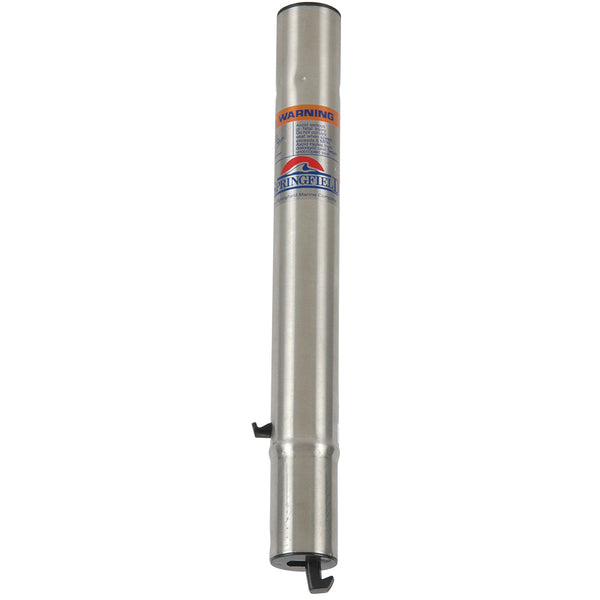

Spring-Lock™ Non-Locking Post - 13.5"Hefty 1-3/4″ diameter stainless steel posts. Use with non-locking Spring-Lock™ seat mount ot any non-locking Spring-Lock™ base (sold separately). SKU: NVN-111156 MPN: 1640404 UPC:...

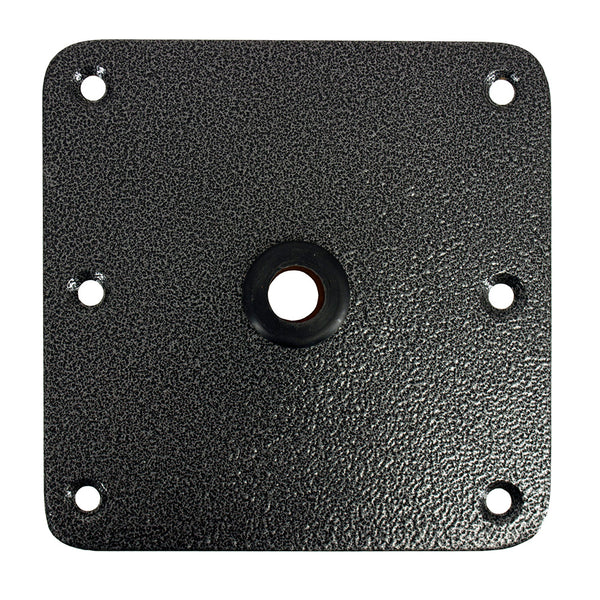

KingPin™ Standard Square Steel Base - 7"x7" - Kennedy BaseStandard square mild steel base with black krinkle finish. 3″ below deck needed. Requires a 2-1/2″ hole in deck....

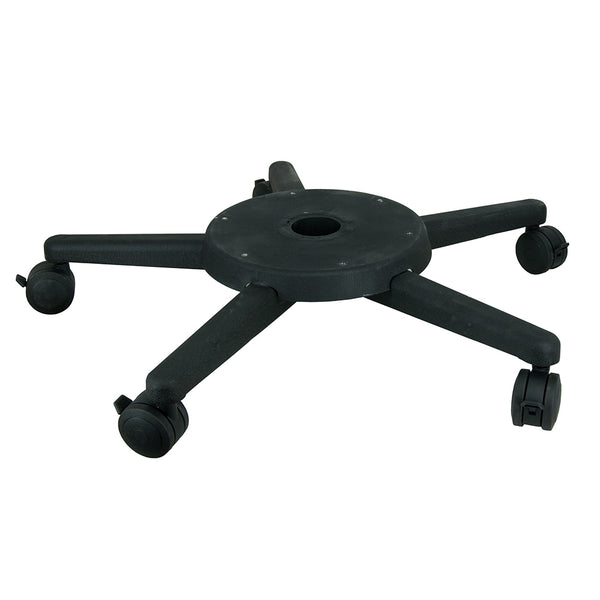

5-Legged Deck Base with Plate33″ Diameter 5-legged deck base with pre-drilled 5/16″-18 tap mounting plate to accept any Springfield® Marine 12″ or 9″ round pedestal base. Approximately 4″...

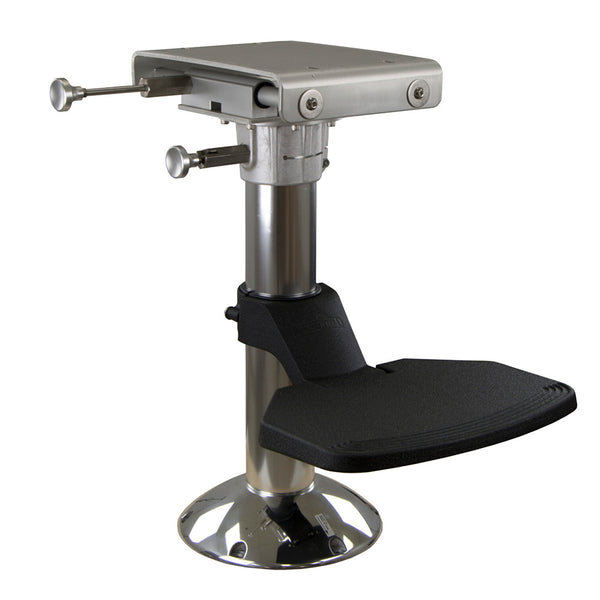

4" Offshore Fixed-Height Helm Pedestal PackagePackage includes heavy-duty 4″ Workhorse slide & swivel with anodized finish, fixed-height brite dip 4″ pedestal with 12″ round polished base. The Helmsman...

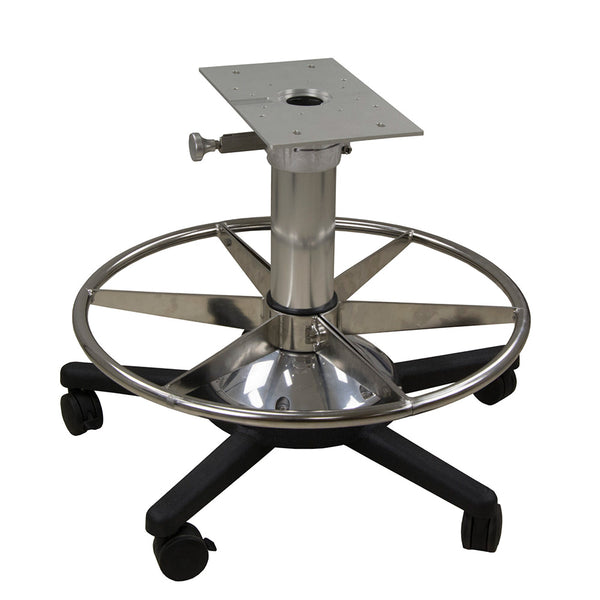

4" In-Shore RS2 Pedestal PackagePackage includes locking Workhorse swivel mount with anodized finish, high-strength polished aluminum fixed-height 4″ pedestal with 12″ round base, 316 electro-polished stainless steel 28″...

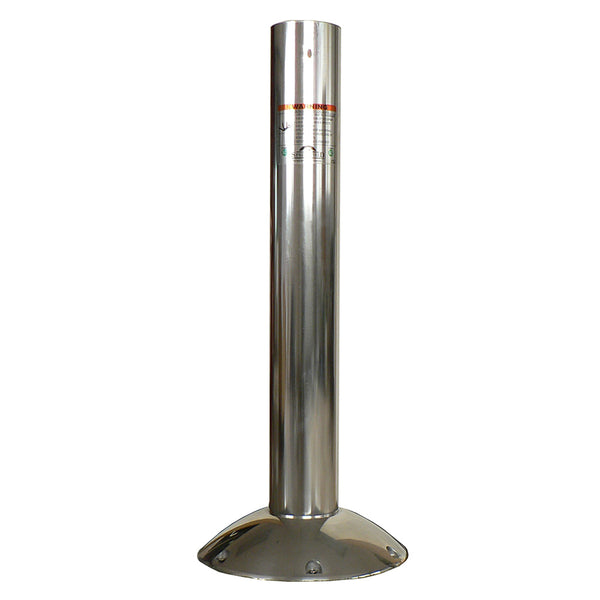

4" Elite Fixed-Height Pedestal - 30"4″ Pedestal of .213″ thick aluminum with 12″ round base, polished finish. The pedestal is sized and pressed into base then rim welded...

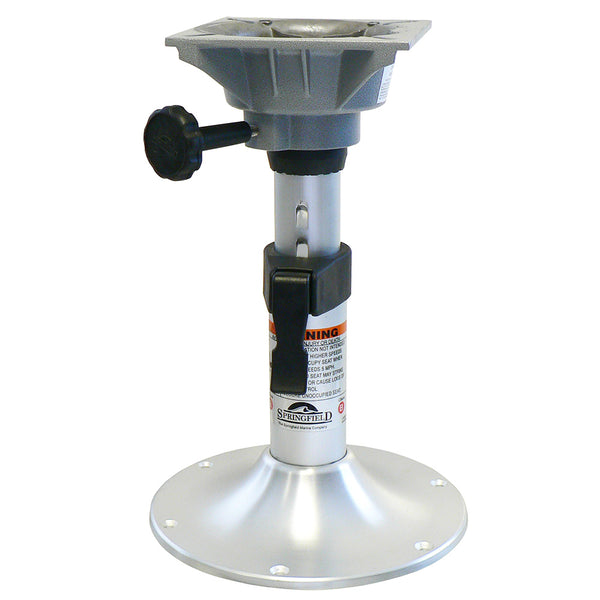

2-3/8" Clipper Adjustable PackagePackage includes 2-3/8″ adjustable pedestal with 10″ round base and non-locking Trac-Lock™ swivel. Pedestal adjusts in 1-inch increments. SKU: NVN-111146 MPN: 1440334 UPC: 038132925281

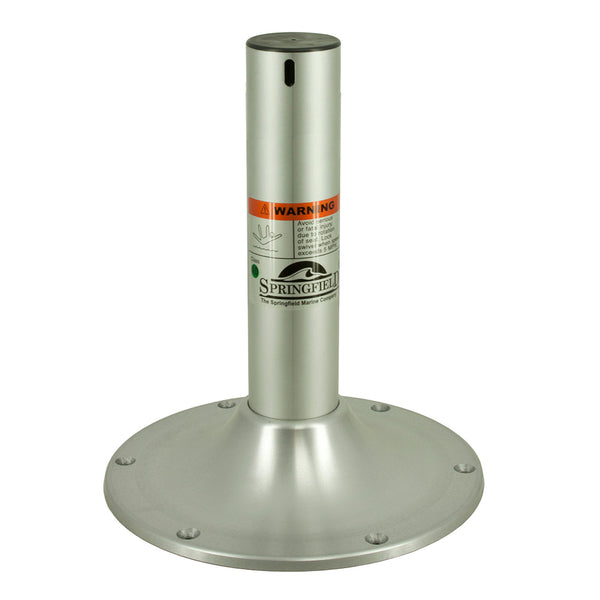

2-3/8" Clipper Fixed-Height Pedestal - 13"2-3/8″ Pedestal with 10″ round base and 9″ mounting pattern. Use with locking Trac-Lock™ slide or swivel (sold separately). SKU: NVN-111145 MPN: 1440013-SAL...

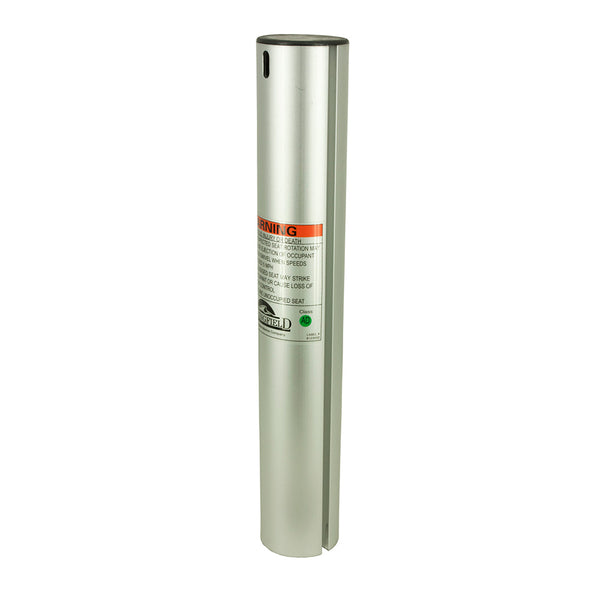

2-3/8" Locking Fixed-Height Post - 13"Anodized to withstand all conditions. Heights are from the top of the post to the deck when the post is installed. Fits into...

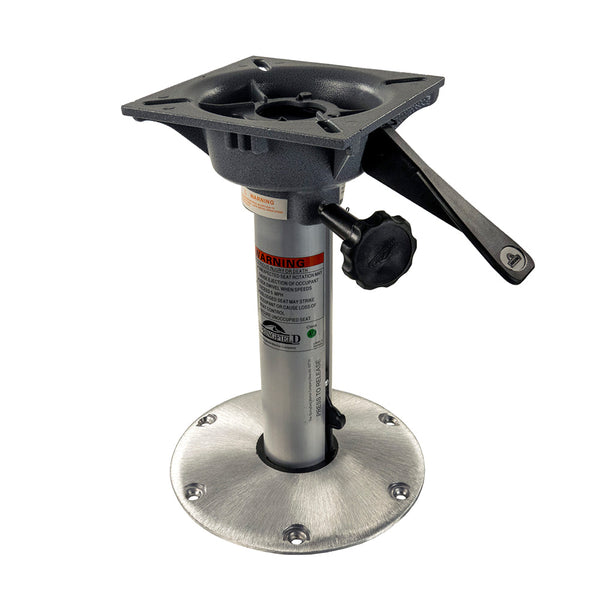

2-3/8" Plug-In™ Locking 3-Piece Pedestal Package - 12"Locking 3-piece package includes locking Trac-Lock™ swivel seat mount, Plug-In™ Hi-Lo fixed height post with anodized finish, and Plug-In™ 9″ diameter...
Springfield builds the pedestals and mounts that hold your seats and tables. Match the post system, height, and swivel to your boat and how you fish or cruise.
A comfortable secure seat starts with the right pedestal and Springfield Marine has built seat mounting systems for boats for decades. This collection covers pedestal posts swivel bases mounting hardware seat slides and table packages. Picking the right setup comes down to the mounting system the post height and diameter and the swivel and slide features you want.
Springfield offers a few mounting systems and they are not interchangeable. Taper Lock uses a tapered post that locks into a matching base. Plug In posts drop into a flush base. Thread Lock and KingPin systems thread or pin for a more positive hold. Choose one system and stick with it across the boat so posts and bases swap cleanly between locations.
Posts come in standard diameters commonly 2 3/8 inch and 2 7/8 inch and the base has to match the post. Height matters too. A fixed post sets one seating height while a Hi Lo or adjustable post lets you raise the seat to stand and steer or drop it to fish. Measure your seating height and pick fixed or adjustable based on how you use the spot.
A locking swivel base lets the seat turn and lock at set positions which is handy at the helm and the table. Add a seat slide to move fore and aft for legroom or to reach the wheel. Locking versions hold position underway so the seat does not spin or slide in a chop.
Springfield table packages mount on the same pedestal systems so a cockpit or cabin table can share a base with a removable seat. Plan shared bases where it makes sense to free up deck space when the table is stowed.
Confirm the pedestal and base are rated for your seat and the way you use it and that the bolt pattern matches your seat or that you have the right adapter. A solid mount keeps the seat from rocking and protects the deck around it. Not sure which pedestal system fits your boat. Tell our crew your seat the heights you want and where the seats go and we will match the posts bases swivels and slides so everything mounts solid and swaps easily. Always check load ratings before final install and replace worn hardware to keep mounts tight in rough water.
No. Taper Lock Plug In Thread Lock and KingPin are different systems with matching posts and bases. Choose one system and use it across the boat so posts and bases swap cleanly between seating locations.
Posts come in standard diameters commonly 2 3/8 inch and 2 7/8 inch and the base must match the post. Check your existing base or pick a matched post and base set so they lock together correctly.
A fixed post sets one seating height while a Hi Lo or adjustable post lets you raise the seat to stand and steer or lower it to fish. Choose adjustable if you want flexibility at the helm or a fishing seat.
A locking swivel lets the seat turn and lock at set positions and a slide moves it fore and aft for legroom or to reach the wheel. Locking versions hold position underway so the seat does not spin or slide in a chop.
Yes. Springfield table packages mount on the same pedestal systems so a removable seat and a table can share a base. That frees up deck space when the table is stowed and the seat is in place.
Check the pedestal base and post specs against the seat weight plus any dynamic loads from waves or movement. Match bolt patterns or use proper adapters to keep the mount secure.
