Springfield builds the pedestals and mounts that hold your seats and tables. Match the post system, height, and swivel to your boat and how you fish or cruise. Choose the right pedestal system A comfortable secure seat starts with the right pedestal and Springfield Marine has built seat mounting systems for boats for decades. This collection covers pedestal posts swivel bases mounting hardware seat slides and table packages. Picking the right setup comes down to the mounting system the post height and diameter and the swivel and slide features you want. Pick a pedestal system Springfield offers a few mounting systems and they are not interchangeable. Taper Lock uses a tapered post that locks into a matching base. Plug In...
2-3/8" Trac-Lock™ III Swivel BushingReplacement bushing for 2-3/8″ Trac-Lock™ III slides and swivels. Use on Trac-Lock™ III 2002 and newer. SKU: NVN-111246 MPN: 2171008 UPC: 038132923843
Spring-Lock™ Base Repair Kit - 2 BushingsThe repair kit for Spring-Lock™ bases includes one thin bushing and one thick bushing. For models 2010 and earlier. Base repair kits...
KingPin™ Taper-Lock™ AdapterInserts into Taper-Lock™ base to accept KingPin™ posts or mounts. SKU: NVN-111226 MPN: 2100032 UPC: 038132590328
Trac-Lock™ Hi-Lo Fixed-Height Post - 13"2-3/8″ Anodized aluminum post. Use with seat mount (#1600205, sold separately). Use with any Taper-Lock™ base (sold separately). SKU: NVN-111151 MPN: 1600406 UPC:...
2-3/8" Explorer Fixed-Height Locking Pedestal - 9"Anodized aluminum 2-3/8″ pedestal with 9″ round satin anodized base. Use with Trac-Lock™ slide or swivel (sold separately). SKU: NVN-111101 MPN: 1250309-LNS...
2-3/8" Adjustable Mainstay Package with Locking SwivelPackage includes 2-3/8″ high-strength anodized aluminum air-powered height adjustment pedestal (500 newton cylinder) with 9″ round anodized base, and locking Trac-Lock™ swivel.Specifications:...
2nd Generation 2-7/8" Fixed-Height Pedestal - 15"Permanent mold base is made from high magnesium aluminum for corrosion resistance, hydro-formed for optimal rotational torque, and welded for safety assurance....
2-7/8" Heavy-Duty Adjustable Mainstay Package - 10"-12"Package includes 2-7/8″ high-strength rigid 4-keyed anodized aluminum air-powered height adjustment pedestal (500 newton cylinder) with 9″ round anodized base, and locking...
2-7/8" Trac-Lock™ III Locking Swivel2-7/8″ Post mount with bushing & centrally located tension knob for snug fit, easily reachable with left or right hand. Made of high-strength aluminum...
2-7/8" Heavy Duty Mainstay with SwivelNon-removable pedestal system in 2-7/8" offers a heavy-duty base and post for today's larger and faster recreational boats. The base is permanent mold...
Springfield Marine offers Our wide range of Mounting Systems are designed for low profile decks with features that include both swivel and slide for passenger or driver’s seat...
Economy Multi-Color Folding Seat - Grey/BlueFeatures: A Comfortable Cushioned Seat To Support Your Backside Durable Upholstery, Folds Easily, Strap With Snap To Keep Seat Secure Rigid Injection Molded...
High Back Camp Folding Seat - Mossy Oak Duck BlindFeatures: Comfortable Cushioned Seat To Support Your Backside Durable Upholstery, Folds Easily, Strap With Snap To Keep Seat Secure....
Universal Trac-Lock™ SlideFeatures: Large 7-1/4″ x 13″ x 2″ High 0-Degree Platform High-Strength Aluminum Travels 5-1/4″ Fore And Aft The Springfield Universal Trac-Lock slide rail is designed to...
Springfield Marine introduced the Taper-Lock ™ pedestal system in 1982. The design of the Taper-Lock™ provides the most stable, secure, and versatile systems in the industry. The slight...
Springfield Marine's first generation removable pedestal, the KingPin ™ is still the most popular seating system among freshwater boaters. The centerpiece of the KingPin ™ system is the...

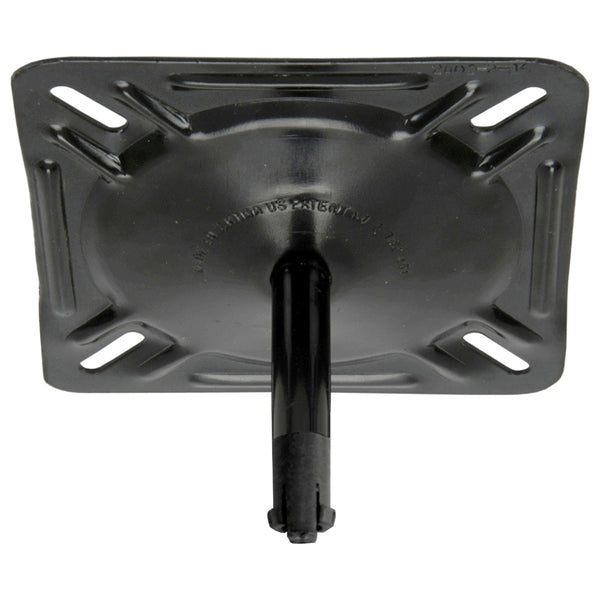

KingPin™ 7" x 7" Seat Mount without Spring - E-Coat FinishFeatures: Unintentional Detachment To Comply With ABYC 7″ x 7″ Swivel No Spring, Rotates 360° Use With Any...

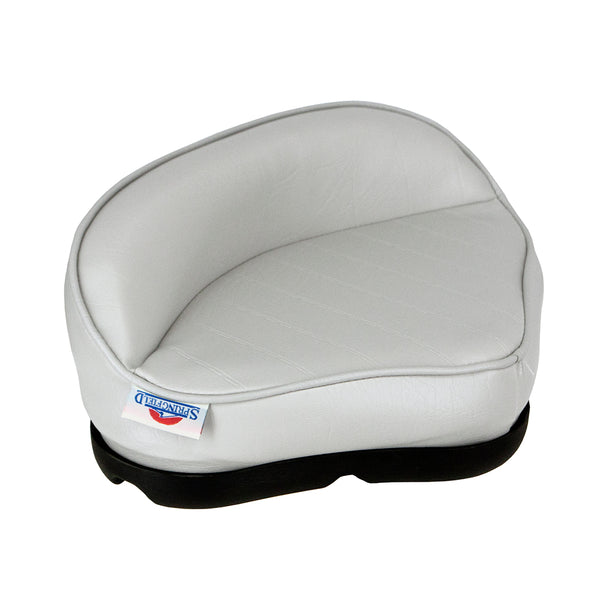

Pro Stand-Up Seat - WhiteBicycle Style Seat Comes With Foam Padding Covered In Marine Grade Vinyl. Plastic Substrate; No More Wood To Rot Out! Compact Design Allows For...
Pro Stand-Up Seat - BlueBicycle Style Seat Comes With Foam Padding Covered In Marine Grade Vinyl. Plastic Substrate; No More Wood To Rot Out! Compact Design Allows For...
XXL Folding Seat - Mossy Oak Duck BlindDesigned for the plus size body frames. Marine grade vinyl with plush rebounding foam padding. Heavy-duty powder coated hinges. Optional armrest...
Springfield Marine knows that comfort is important in marine seating. Whether behind the wheel for long passages in rough water, dropping a line in a quiet creek or...
Comfortable cushioned seat to support your backside. Strap with snap to keep seat secure when folded down. Rigid injection molded frame.Springfield Marine 1040623 Attributes Location: Passenger Seat Type: High Back...
Springfield Marine knows that comfort is important in marine seating. Whether behind the wheel for long passages in rough water, dropping a line in a quiet creek or...
Skipper Premiun Folding Seat - Mossy Oak Duck Blind with Black ShellInjection Molded Seats With Interlocking hinge For Greater Structural Support. Extra Wide Seat, Premium High Quality Upholstery...
Springfield builds the pedestals and mounts that hold your seats and tables. Match the post system, height, and swivel to your boat and how you fish or cruise.
A comfortable secure seat starts with the right pedestal and Springfield Marine has built seat mounting systems for boats for decades. This collection covers pedestal posts swivel bases mounting hardware seat slides and table packages. Picking the right setup comes down to the mounting system the post height and diameter and the swivel and slide features you want.
Springfield offers a few mounting systems and they are not interchangeable. Taper Lock uses a tapered post that locks into a matching base. Plug In posts drop into a flush base. Thread Lock and KingPin systems thread or pin for a more positive hold. Choose one system and stick with it across the boat so posts and bases swap cleanly between locations.
Posts come in standard diameters commonly 2 3/8 inch and 2 7/8 inch and the base has to match the post. Height matters too. A fixed post sets one seating height while a Hi Lo or adjustable post lets you raise the seat to stand and steer or drop it to fish. Measure your seating height and pick fixed or adjustable based on how you use the spot.
A locking swivel base lets the seat turn and lock at set positions which is handy at the helm and the table. Add a seat slide to move fore and aft for legroom or to reach the wheel. Locking versions hold position underway so the seat does not spin or slide in a chop.
Springfield table packages mount on the same pedestal systems so a cockpit or cabin table can share a base with a removable seat. Plan shared bases where it makes sense to free up deck space when the table is stowed.
Confirm the pedestal and base are rated for your seat and the way you use it and that the bolt pattern matches your seat or that you have the right adapter. A solid mount keeps the seat from rocking and protects the deck around it. Not sure which pedestal system fits your boat. Tell our crew your seat the heights you want and where the seats go and we will match the posts bases swivels and slides so everything mounts solid and swaps easily. Always check load ratings before final install and replace worn hardware to keep mounts tight in rough water.
No. Taper Lock Plug In Thread Lock and KingPin are different systems with matching posts and bases. Choose one system and use it across the boat so posts and bases swap cleanly between seating locations.
Posts come in standard diameters commonly 2 3/8 inch and 2 7/8 inch and the base must match the post. Check your existing base or pick a matched post and base set so they lock together correctly.
A fixed post sets one seating height while a Hi Lo or adjustable post lets you raise the seat to stand and steer or lower it to fish. Choose adjustable if you want flexibility at the helm or a fishing seat.
A locking swivel lets the seat turn and lock at set positions and a slide moves it fore and aft for legroom or to reach the wheel. Locking versions hold position underway so the seat does not spin or slide in a chop.
Yes. Springfield table packages mount on the same pedestal systems so a removable seat and a table can share a base. That frees up deck space when the table is stowed and the seat is in place.
Check the pedestal base and post specs against the seat weight plus any dynamic loads from waves or movement. Match bolt patterns or use proper adapters to keep the mount secure.
