Springfield builds the pedestals and mounts that hold your seats and tables. Match the post system, height, and swivel to your boat and how you fish or cruise. Choose the right pedestal system A comfortable secure seat starts with the right pedestal and Springfield Marine has built seat mounting systems for boats for decades. This collection covers pedestal posts swivel bases mounting hardware seat slides and table packages. Picking the right setup comes down to the mounting system the post height and diameter and the swivel and slide features you want. Pick a pedestal system Springfield offers a few mounting systems and they are not interchangeable. Taper Lock uses a tapered post that locks into a matching base. Plug In...
Taper-Lock™ Post Bottom BushingReplacement Bushing for Taper-Lock™ Posts. Springfield Marine 2171004 Replacement Column Bushing for Conical Lock Columns-Bottom Color: Black, used for Conical Lock Columns. Suitable for specific...
12-Way Locking Swivel Seat Base - E-Coat FinishFeatures: 6-3/4″ Square x 1-1/8″ High, With 4 Hole Mounting Pattern 0-Degree Locking Swivel Rotates 360° Mild Steel E-Coat Finish Springfield...
Springfield Marine’s tables enhance your on the water dining experience. Designed to be used on board, our tables allow you to extend your boating pleasure by reducing your...
Springfield Marine's removable pedestal series includes the Plug-In ™. Stainless steel hardware, high-strength aluminum, and engineering grade plastics are used throughout to ensure the highest quality of all...
Taper-Lock™ Hi-Lo Bushing for 2-3/8" PostHigh-Strength Composite Bushing Inserts Into End Of Post For Hi-Lo Seat Swivel Mount. Springfield Marine knows that comfort is important in a ship’s...
Seat Suspension SystemFeatures: High-Strength Aluminum Seat Mount Mounts to Deck Heavy-Duty Springs Provide a Comfortable Ride Material: Aluminum Our aluminum shock absorbers add comfort to your boating. Made...
KingPin™ 7" x 7" Offset - Stainless Steel - Square BaseFeatures: 7″ x 7″ Stainless Steel Base, With Nylon Bushing And Satin Finish Offset Bushing 3″ Cup Depth...
KingPin™ 6" x 8" - Stainless Steel - Rectangular BaseFeatures: 6″ x 8″ Stainless Steel Base With Nylon Bushing And Satin Finish 3″ Cup Depth Below The Deck...
Taper-Lock 9" - Flat Side BaseFeatures: 9″ Flat Side Base With 8″ Hole Pattern High-Strength Aluminum To Withstand All Conditions Below The Deck Mount Requires A 3-1/2″ Hole...
Fish Pro High Back Folding Seat - Blue/GreyExceptional high back contour lumbar cushion cradles your back for maximum support. Designed for style, comfort and durability. Features: Folds down easily...
Bushing for 2-3/8″ SwivelReplacement handles and assemblies for air-ride pedestals, seat mounts, etc.Features:Replacement and service parts for Trac-Lock™ seat mounts*5-Year Limited Warranty SKU: NVN-98991 MPN: 2171000 UPC:
2-7/8" Bushing for Seat Mount Swivel Springfield Marine Replacement/Service Part for lost or worn bushing Compatible With:Springfield bushings stamped with - Manufacturing Number 9010018 and Casting Number D3725Features: Maintains a...
7" x 7" Removable Seat Bracket with SwivelFeatures: Non-Locking 7″ x 7″ Removable Seat Bracket With Non-Locking 12-Way Swivel Rotates 360° E-Coat Finish To Resist Corrosion The large...
Springfield Marine is best known for some of the highest quality seating hardware in the business, we also become well known as a supplier of fantastic boat and...
Springfield Marine's first generation removable pedestal, the KingPin ™ is still the most popular seating system among freshwater boaters. The centerpiece of the KingPin ™ system is the...
KingPin™ Power-Rise Stand-Up Package Standard PinFeatures: Standard Power-Rise Stand-Up Post (1611431-S) Quik-Tilt Seat Mount (1615254-EC) Gray, Pro Stand-Up Seat (1040213) Adjusts From 23-1/2″ To 30-1/2″ Use With Standard...
Springfield Marine knows that comfort is important in marine seating. Whether behind the wheel for long passages in rough water, dropping a line in a quiet creek or...

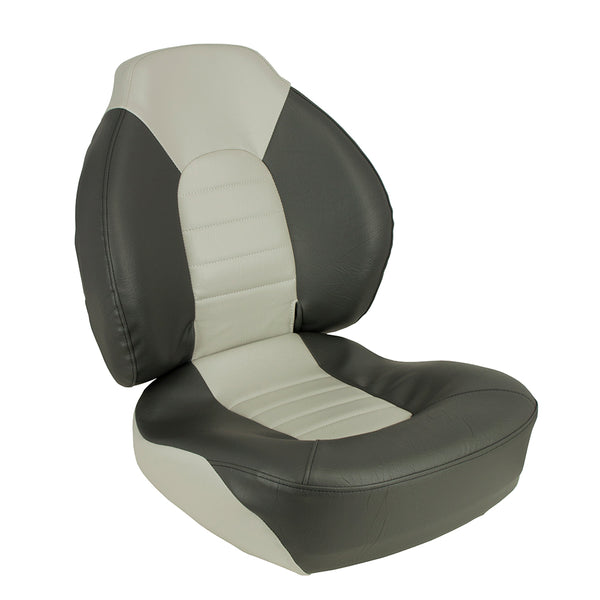

Fish Pro Mid Back Folding Seat - Charcoal/GreyContour lumbar cushion cradles your back for maximum support. Designed for style, comfort and durability.Features: Folds down easily Concealed pinch proof...

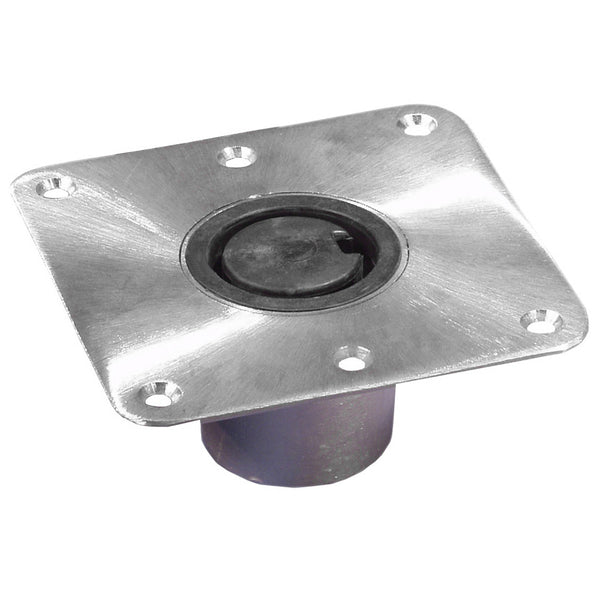

2-3/8" Plug-In™ Stainless Steel Square Base - 7"x7"Made of stainless steel. Suitable for above or under carpet applications. Below deck mount requires a 3-3/4″ hole in the deck....

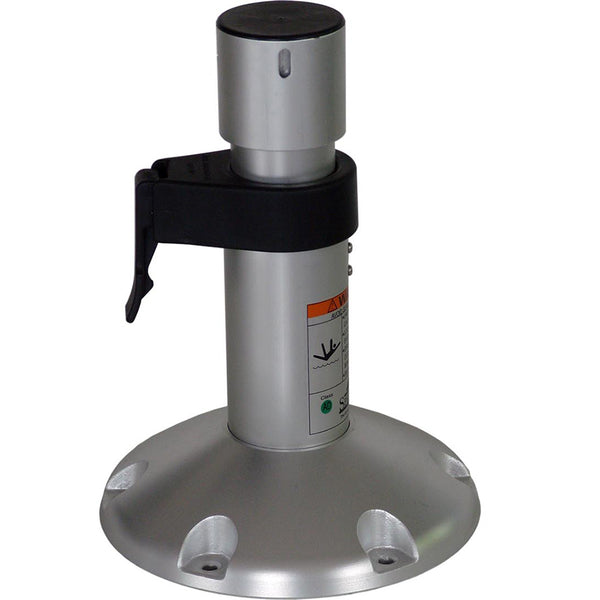

Second Generation Posi-Lock Manual Adjust 2-7/8" Pedestal - No SwivelNon-removable pedestal system in 2-7/8 in. offers a heavy-duty base and post for today's larger and faster recreational boats....

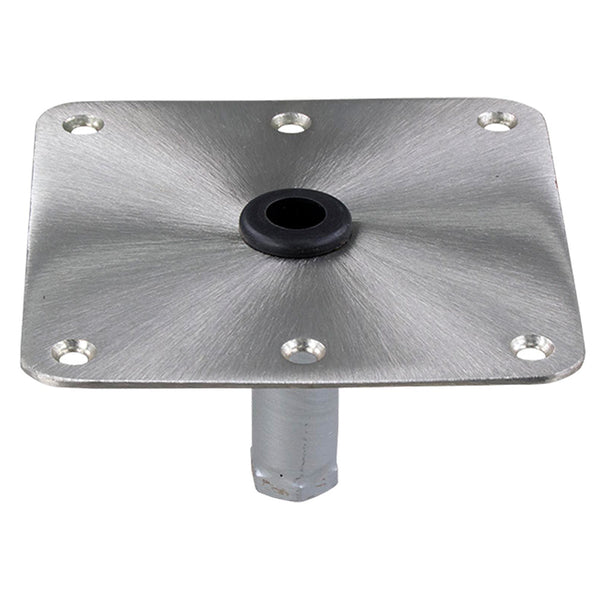

KingPin™ 7" x 7" Stainless Steel Square Base (Threaded)KingPin™ 7" L x 7" W Satin Stainless Steel Threaded Square Base with Nylon Bushing for 1-3/4" D Post (1630001)...

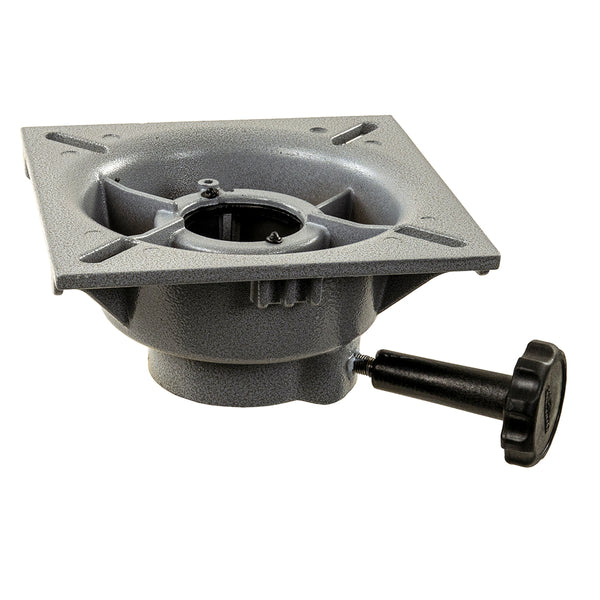

Taper-Lock™ Trac-Lock™ 2-3/8" Non-Locking Seat MountFeatures: 7″ x 7″ Non-Locking Trac-Lock™ Swivel High-Strength Aluminum With Powder Coat Finish Rotates 360° Fits 2-3/8″ Post Adds 3/4″ To Height Of...

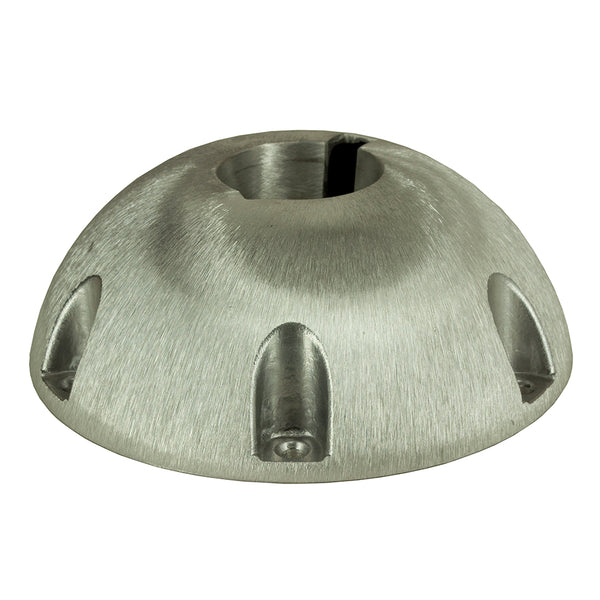

Taper-Lock 9" - Round Surface MountFeatures: 9″ Surface Mount Base, 8″ Hole Pattern High-Strength Aluminum To Withstand All Conditions Surface Mount Does Not Require A Hole In Deck...

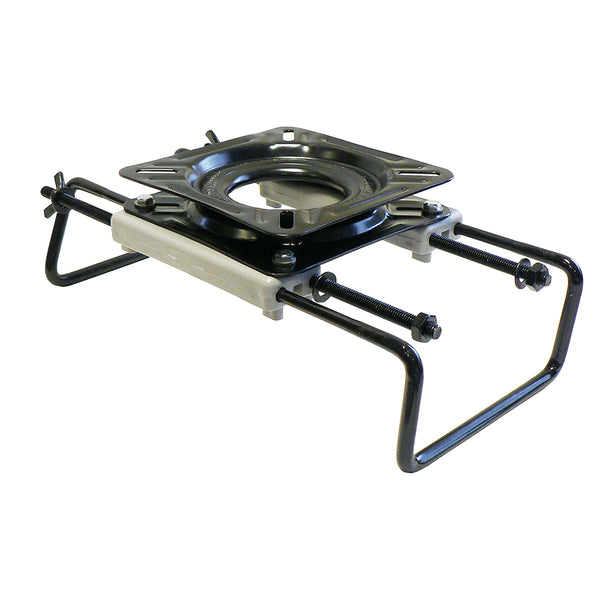

Jon Boat Seat Clamp - 8" to 20-1/2"Jon Boat Seat Clamp Adjusts From 8″ To 20-1/2″ To Fit Most Bench Seats. E-Coated Steel To Resist Corrosion. Springfield Jon...
Springfield builds the pedestals and mounts that hold your seats and tables. Match the post system, height, and swivel to your boat and how you fish or cruise.
A comfortable secure seat starts with the right pedestal and Springfield Marine has built seat mounting systems for boats for decades. This collection covers pedestal posts swivel bases mounting hardware seat slides and table packages. Picking the right setup comes down to the mounting system the post height and diameter and the swivel and slide features you want.
Springfield offers a few mounting systems and they are not interchangeable. Taper Lock uses a tapered post that locks into a matching base. Plug In posts drop into a flush base. Thread Lock and KingPin systems thread or pin for a more positive hold. Choose one system and stick with it across the boat so posts and bases swap cleanly between locations.
Posts come in standard diameters commonly 2 3/8 inch and 2 7/8 inch and the base has to match the post. Height matters too. A fixed post sets one seating height while a Hi Lo or adjustable post lets you raise the seat to stand and steer or drop it to fish. Measure your seating height and pick fixed or adjustable based on how you use the spot.
A locking swivel base lets the seat turn and lock at set positions which is handy at the helm and the table. Add a seat slide to move fore and aft for legroom or to reach the wheel. Locking versions hold position underway so the seat does not spin or slide in a chop.
Springfield table packages mount on the same pedestal systems so a cockpit or cabin table can share a base with a removable seat. Plan shared bases where it makes sense to free up deck space when the table is stowed.
Confirm the pedestal and base are rated for your seat and the way you use it and that the bolt pattern matches your seat or that you have the right adapter. A solid mount keeps the seat from rocking and protects the deck around it. Not sure which pedestal system fits your boat. Tell our crew your seat the heights you want and where the seats go and we will match the posts bases swivels and slides so everything mounts solid and swaps easily. Always check load ratings before final install and replace worn hardware to keep mounts tight in rough water.
No. Taper Lock Plug In Thread Lock and KingPin are different systems with matching posts and bases. Choose one system and use it across the boat so posts and bases swap cleanly between seating locations.
Posts come in standard diameters commonly 2 3/8 inch and 2 7/8 inch and the base must match the post. Check your existing base or pick a matched post and base set so they lock together correctly.
A fixed post sets one seating height while a Hi Lo or adjustable post lets you raise the seat to stand and steer or lower it to fish. Choose adjustable if you want flexibility at the helm or a fishing seat.
A locking swivel lets the seat turn and lock at set positions and a slide moves it fore and aft for legroom or to reach the wheel. Locking versions hold position underway so the seat does not spin or slide in a chop.
Yes. Springfield table packages mount on the same pedestal systems so a removable seat and a table can share a base. That frees up deck space when the table is stowed and the seat is in place.
Check the pedestal base and post specs against the seat weight plus any dynamic loads from waves or movement. Match bolt patterns or use proper adapters to keep the mount secure.
