Maretron

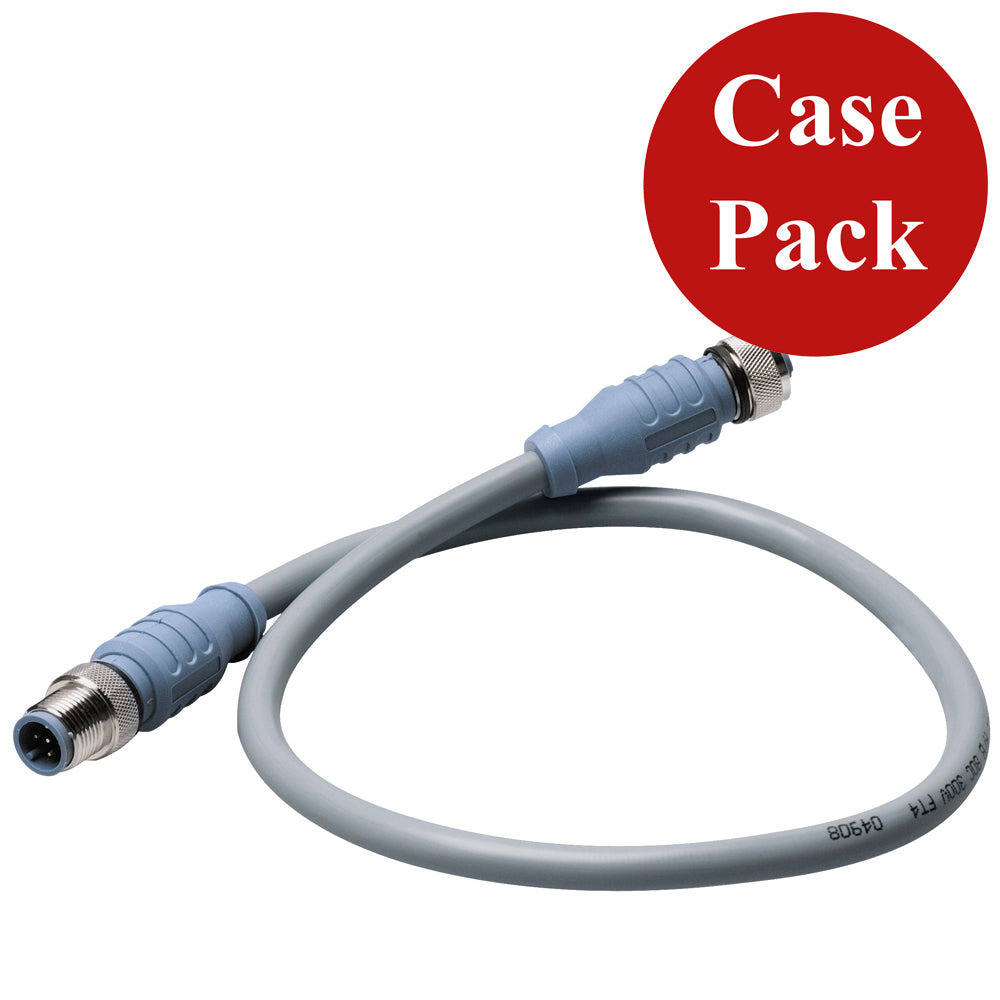

Maretron Micro Double-Ended Cordset - 1M - *Case of 6*
SKU: 68455 · UPC: 657379407260 · MPN: CM-CG1-CF-01.0CASE
★★★★★
4.7 · 0 reviews
Authorized dealer13% off
$135.59
$157.20Save $21.61
or 4 payments of $33.89 with Affirm
Out of stock
Free shipping
Orders $500 or more
Free returns
Within 30 days
Same day shipping
Order before 3 PM (EST)
Ask anything
We're here to help
$135.59
02 · Overview
Maretron Micro Double-Ended Cordset - 1M - *Case of 6* — Product description
Micro Double-Ended Cordset - 1M - *Case of 6*
Mechanical
- Contact Carrier Mat/Color: Thermoplastic PUR/Blue-Gray
- Molded Body Mat/Color: Thermoplastic PUR/Blue-Gray
- Contact Mat/Plating: Brass/Gold
- Coupling Nut Mat/Plating: Brass/Nickel
- Connector Outside Diameter: 0.59"
Electrical - Current Rating: 4.0 Amps
- Voltage Rating: 250 V
Cable - Outer Jacket Mat/Color: PVC/Gray
- Conductor Insulation Material: HDPE (data pair), SRPVC (power pair)
- Number of Conductors: 4X22 AWG, 22 AWG Drain Wire
- Shielding (3-Levels): FOIL (Overall), FOIL (Power Pair), FOIL (Data Pair)
Environmental
- Protection Class: IEC IP68, NEMA 1,3,4,6P
- Temperature Rating: -40 deg C to 80 deg C to (-40 deg F to 176 deg F)
Approvals - (Cable) UL: PLTC 75 deg C Sunlight Resistant E90625,
AWM 80 deg C 300V - (Cable) CSA: CMX-OUTDOOR-CMG LL54185 75 deg C,
AWM I/II A/B 80C 300V FT4 - NMEA: NMEA 2000 Approved
Maretron mini double-ended cable-1M brand new product #Cm-Cg1-Cf-01.0Case Maretron mini double-ended cable is a 1 meter long mini double-ended cable, used for...
SKU: NVN-68455
MPN: CM-CG1-CF-01.0CASE
UPC: 657379407260
03 · The numbers
Technical specifications
| Brand | Maretron |
| Model | Maretron Micro Double-Ended Cordset - 1M - *Case of 6* |
| SKU / MFR# | 68455 |
