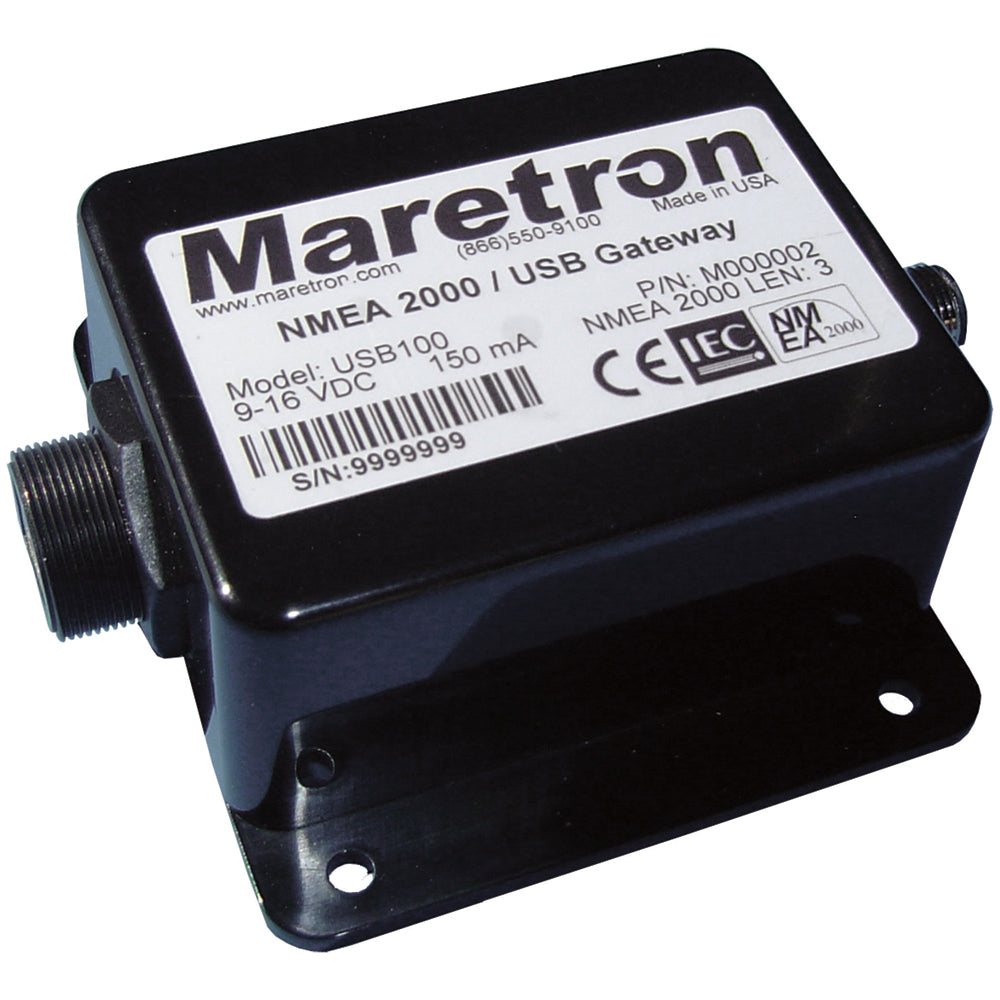

Maretron USB100 NMEA 2000® USB Gateway

Maretron's USB100 is a gateway for bridging computers to an NMEA network. This allows you to use PC based vessel monitoring and control software like Maretron's N2KView or PC based navigation software. The gateway provides one simple connection between the network and the PC, which eliminates conventional multiplexers and the maze of wires usually associated with interfacing equipment to PCs.

Maretron supplies drivers for the following versions of Windows: Windows XP, Windows Vista, Windows 7, Windows 8 and Windows 10 (32-bit and 64-bit). For older PC based navigation software that requires receiving data in NMEA 0183 format, the USB100 automatically converts information from the NMEA 2000 network to NMEA 0183 sentences. You can continue benefiting from navigational and charting software that you already own while enjoying the many benefits of networked NMEA 2000 instruments.

Maretron's USB100 is engineered and manufactured to the highest standards (IEC 60945 Maritime Navigation and Radiocommunication Equipment). Its compact waterproof housing will provide years of reliable performance.

USB100 NMEA 2000® / USB Gateway


Maretron's USB100 is a gateway for bridging USB equipment using NMEA 0183 sentences - such as an on-board computer running navigational software - with an NMEA 2000® network.

The gateway automatically converts incoming NMEA 2000® messages to NMEA 0183 sentences so you can continue benefiting from navigational and charting software that you already own while enjoying the many benefits of networked NMEA 2000® instruments.

The USB100 translates a multitude of NMEA 2000® messages to NMEA 0183 sentences including GPS data, Speed Over Ground (SOG), Course Over Ground (COG), vessel heading, rudder angle, depth, speed, distance log, weather, wind and more.

Maretron's USB100 is engineered and manufactured to the highest standards (IEC 60945 Maritime Navigation and Radiocommunication Equipment). Its compact waterproof housing will provide years of reliable performance.


Features:

• Bearing Orig. to Dest. (BOD)

• Bearing to Waypoint (BTW)

• Distance to Waypoint (DTW)

• Velocity Made Good (VMG)

• Est. Time of Arrival (ETA)

• Time to Go (TTG)

• Cross Track Error (XTE)

• Set / Drift

Maretron's USB100 is a gateway used to bridge computers to NMEA networks. This allows you to use PC-based ship monitoring and control software, such as Maretron's N2KView or PC...

• NMEA 2000 and USB 1.1 interfaces
• Waterproof enclosure and NMEA 2000 USB connections
• Translates more than 20 NMEA 2000 PGNs to equivalent NMEA 0183 sentences
• Translates NMEA 0183 sentences to corresponding NMEA 2000 PGNs
• USB Opto isolated from NMEA 2000
• Obtains power directly from USB and NMEA 2000 ports
• Uses micro cables (Not included)
• N2K Analyzer software is provided with purchase of USB100 Gateway

Applications:

• PC-based charting software
• PC-based diagnostic tools

Electrical:

• NMEA 2000 Connector: DeviceNet Micro-C (Industry Standard Waterproof)
• NMEA 2000 / USB Isolation: Opto-Isolated (No Electrical Connection Across Bridge)
• USB Standard: USB 1.1
• USB Connector: USB Type B (Industry Standard Waterproof)
• USB Supported Signals: D+, D-, +5V, GND (Bi-directional Gateway)
• USB Auxiliary Power: +5 Volts < 50 mA
• USB Baud Rate: Up to 12 Mb/s (Full Speed USB Data Rate)
• USB Interface Modes: NMEA 0183 (With Maretron-Supplied Windows Drivers), Native NMEA 2000 (For Use With N2KView and N2KAnalyzer)
• Supported Operating Systems: Windows XP, Vista, 7, 8 and 10 (32-bit and 64-bit)
• Operating Voltage: 9 to 16 Volts (DC Voltage)
• Power Consumption: < 150mA (Average Current Drain)
• Load Equivalence Number (LEN): 3 (NMEA 2000 Spec. [1 LEN = 50mA])
• Reverse Battery Protection: Yes (Indefinitely)
• Load Dump Protection: Yes (Energy Rated Per SAE J1113)

SKU: NVN-31741
MPN: USB100-01
UPC: 873804000039
