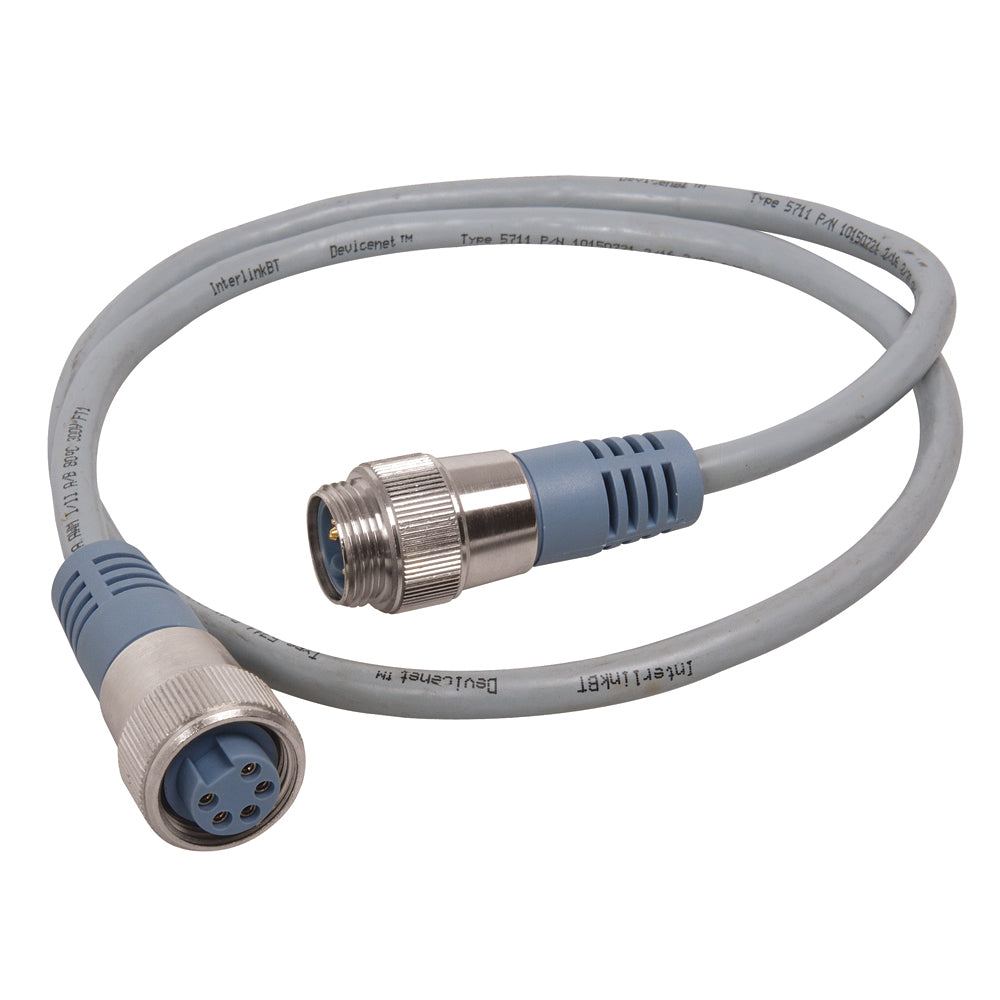

Maretron Mini Double Ended Cordset - Male to Female - 0.5M - Grey

Mini Double-Ended Cordset - M to F - .5m (gray) - Double-ended cordsets are used for trunk or drop lines and make for a secure connection and simple timesaving installation. The connectors are keyed for error-free connection and are waterproof for continued operation even while submerged in the bilge.

Mini Double Ended Cordset - Male to Female - 0.5M - Grey

Double-ended cordsets are used for trunk or drop lines and make for a secure connection and simple time saving installation. The connectors are keyed for error-free connection and are waterproof for continued operation even while submerged in the bilge.

• Rugged, IP68 rated connectors for continued connection integrity in marine environment
• Various cable lengths to match installation requirements

Small Powertap Powertap is connected to the network backbone just like any Tee, but it is not connected to the device. Its purpose is to provide "bus" power. Usually Powertap...

• Contact Carrier Mat/Color: Thermoplastic PUR/Blue-Gray
• Molded Body Mat/Color: Thermoplastic PUR/Blue-Gray
• Contact Mat/Plating: Brass/Gold
• Coupling Nut Mat/Plating: Brass/Nickel
• Connector Outside Diameter: 1.06”

ELECTRICAL:

• Current Rating: 9.0 Amps
• Voltage Rating: 300 V

CABLE:

• Outer Jacket Mat/Color: PVC/Blue
• Conductor Insulation Material: PE (data pair), PVC (power pair)
• Number of Conductors: 2x15 (1.45mm) AWG, 2x18 (1.02mm) AWG, 18 (1.02mm) AWG Drain Wire
• Shielding (3-Levels): Braid (Overall), Foil (Power Pair), Foil (Data Pair)

ENVIRONMENTAL:

• Protection Class: IEC IP67, NEMA 1,3,4,6P
• Temperature Rating: -40°C to 80°C (-40°F to 176°F)

APPROVALS:

• (Cable) UL: PLTC 75°C Sunlight Resistant E90625, AWM 80°C 300V
• (Cable) CSA: CMX-OUTDOOR-CMG LL54185 75°C, AWM I/II A/B 80C 300V FT4
• NMEA: NMEA 2000 Approved
• IEC: IEC 61162-3

SKU: NVN-65619
MPN: NM-NG1-NF-00.5
UPC: 873804002033
