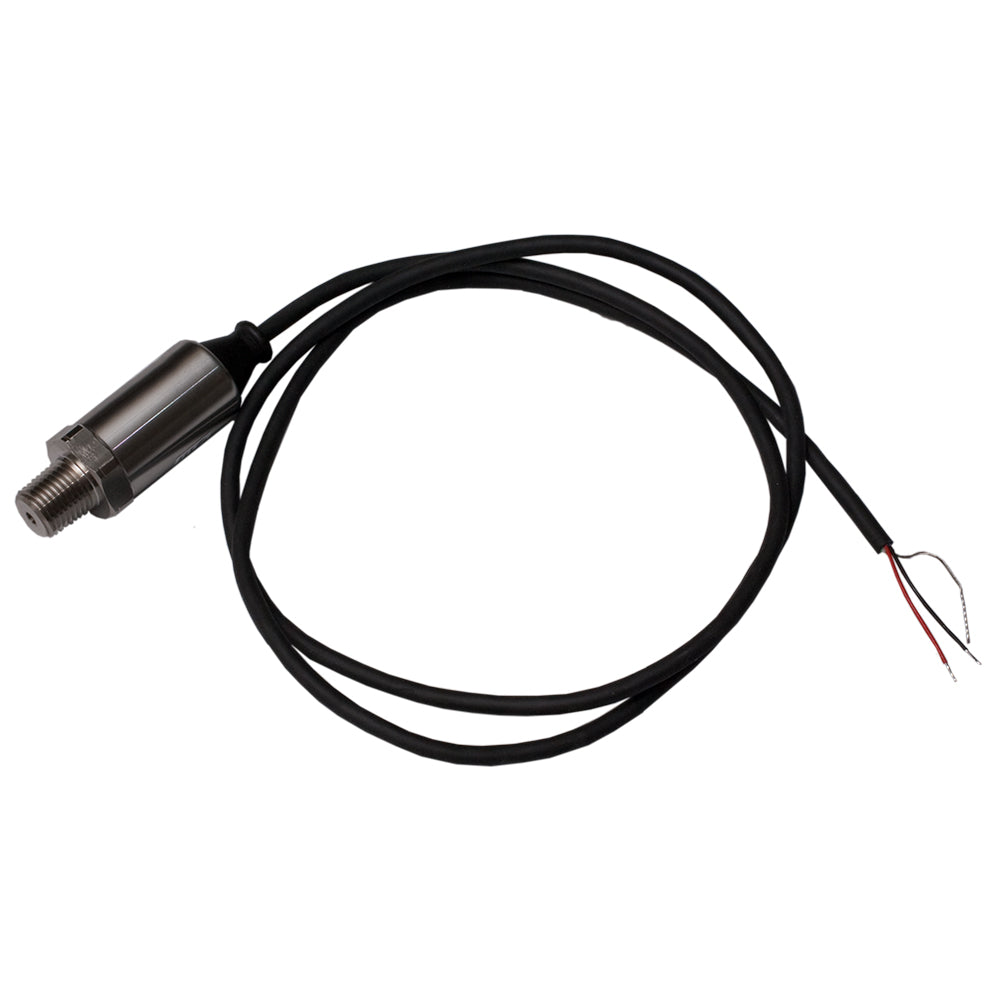

Maretron Pressure Transducer 0 to 50 PSI

Maretron Fluid Pressure Sensor Transducers work with the Maretron FMP100 which will adapt up to six pressure Transducers to the NMEA 2000 network

Pressure Transducer 0 to 50 PSI

All Maretron pressure transducer assemblies are equipped with a 1/4” NPT male threaded fitting. Install the pressure transducer to a ¼” NPT female fitting on the system or tank to be monitored with a maximum torque of 150 in-lbs (16.95 Nm). If you are monitoring a system where pressure spikes or transients will occur, or where the pressure will exceed the maximum pressure rating of the pressure transducer, install a Pressure Snubber (PT-SNUB-01) onto the system being monitored first, then install the pressure transducer to the female port on the pressure snubber.

WARNING: This product can expose you to chemicals including NICKEL (METALLIC) which is known to the State of California to cause cancer. For more information go to P65Warnings.ca.gov.

Install the pressure sensor to the 1⁄4" NPT female connector on the system or tank to be monitored, with a maximum torque of 150 in-lbs (16.95 Nm). If you are monitoring...

Compatible Fluids / Gases:

• Refrigerant
• Motor Oil
• Diesel
• Hydraulic Fluid
• Brake Fluid
• Water
• Waste Water
• Hydrogen
• Nitrogen
• Air

Operating Temperature:

• -5°C to 60°C

Media Temperature:

• -40°C to 125°C

Construction:

• 1.4301 (AISI304) Housing
• 1.4542 (AISI630) Pressure Connection
• 1.4542 (AISI630) Sensor

Cable:

• IP67, PVC

Cable Length:

• 3.28 feet (1.0m)

Vibration:

• 15 g RMS (20 – 2000 Hz)
• 25 g sin (80 – 2000 Hz)
• 1 oct./min, (1x @ 25°C)

Shock:

• 50 g/11 ms

EMC Compatibility:

• EN 61000-6-3
• EN 61000-6-2

Humidity:

• Max. 95% relative

Weight:

• 50g (1.8 oz)

SKU: NVN-64725
MPN: PT-0-50PSI-01
UPC: 873804002927
