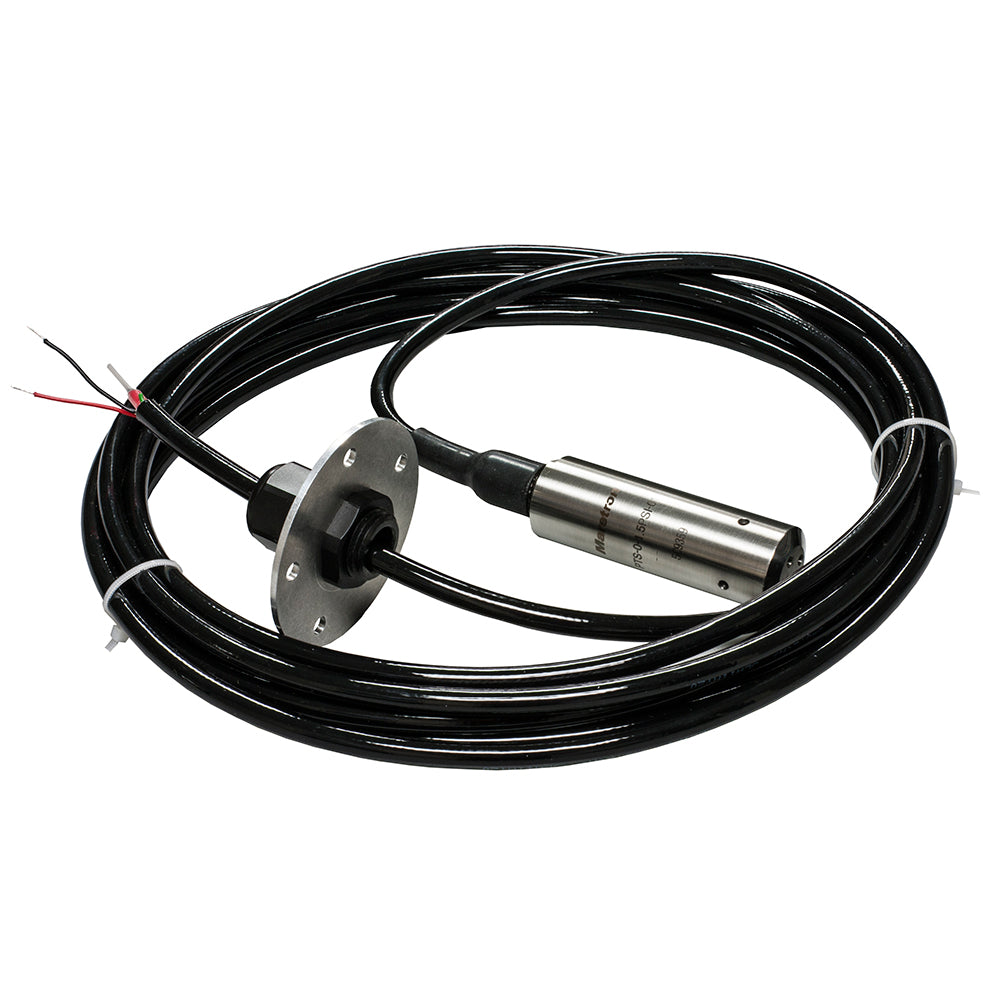

Maretron Submersible Pressure Transducer - 0 to 1.5 PSI

Maretron Fluid Pressure Sensor Transducers work with the Maretron FPM100 which will adapt up to six pressure Transducers to the NMEA 2000 network. Submersible Pressure Transducer - 0 to 1.5 PSI Used for tanks up to 40" or 1M in depth. When used together with Maretron displays, alerts can be set so the user can be informed of low or high tank levels. And when not on-board the vessel, users can be notified through emails or text messages about their tank levels. Additionally, the tank levels can be stored using Maretron's data recorder (VDR100) for later analysis.

Maretron pressure Transducers are not approved for use with gasoline. If you wish to use the FPM100 to monitor pressures or levels of gasoline, you must obtain a pressure Transducer that is approved for use with gasoline.

Submersible Pressure Transducer - 0 to 1.5 PSI

Used for tanks up to 40" or 1M in depth

The submersible pressure transducers are used together with Maretron's Fluid Pressure Monitor (FPM100), whichallows tank fluid level to be broadcast over an NMEA 2000® network where it can be monitored from any compatible NMEA 2000® display. When used together with Maretron displays, alerts can be set so the user can be informed of low or high tank levels. And when not on-board the vessel, users can be notified through emails or text messages about theirtank levels. Additionally, the tank levels can be stored using Maretron's data recorder (VDR100) for later analysis.

WARNING: This product can expose you to chemicals including NICKEL (METALLIC) which is known to the State of California to cause cancer. For more information go to P65Warnings.ca.gov.

Maretron diving pressure sensor-0 to 1.5 PSI brand new product #Pts-0-1.5Psi-01 Maretron diving pressure sensor is used with Maretron fluid...

Electrical:

• Sensor Type: Gauge (Vent Tube)
• Output: 4 – 20 mA current loop, loop powered
• Excitation Voltage: 9 VDC to 32 VDC
• Compatible Fluids/Gases: Motor Oil, Diesel, Hydraulic Fluid, Water, Waste Water
• Operating Temperature: 14°F to 158°F (-10°C to 70°C)
• Ambient Temperature: 14°F to 158°F (-10°C to 70°C)
• Accuracy: ±0.3% Full Scale typ. at 25°C
• Total Error Band (TEB): ±1.0% Full Scale typ. (-10°C to 70°C)
• Non-Linearity, Hysteresis (NLH): ±0.2% Full Scale typ. Best Straight Line (BSL) at 25°C
• Temperature Compensation Zero Point and Span: 0.04% Full Scale/°F (0.02% Full Scale/°C)
• Long Term Stability: 0.2% Full Scale typ. 1 year at 25°C
• Rise Time: 1 ms typ. (10%-90% nominal pressure)
• Switch-On Delay: 100 ms
• Over Pressure: 15 PSI (1.03 bar)
• Burst Pressure: 30 PSI (2.07 bar)
• Vibration: 6 g (25 to 2000 Hz)
• Shock: 50 g / 8 ms
• Construction: AISI316L stainless steel housing, pressure connection; Ceramic, Al2O3 (96%) Sensor; FKM (FPM, Viton), EPDM (TPE) seals; PUR cable
• Minimum Cable Bend Radius: 1.57” (40 mm)
• EMC Compatibility: EN/IEC 61000-6-3 / GL 2012, IV, Part 7 (Emission and Immunity)
• Weight: 12.6 oz (357 g)

SKU: NVN-59813
MPN: PTS-0-1.5PSI-01
UPC: 873804003696
