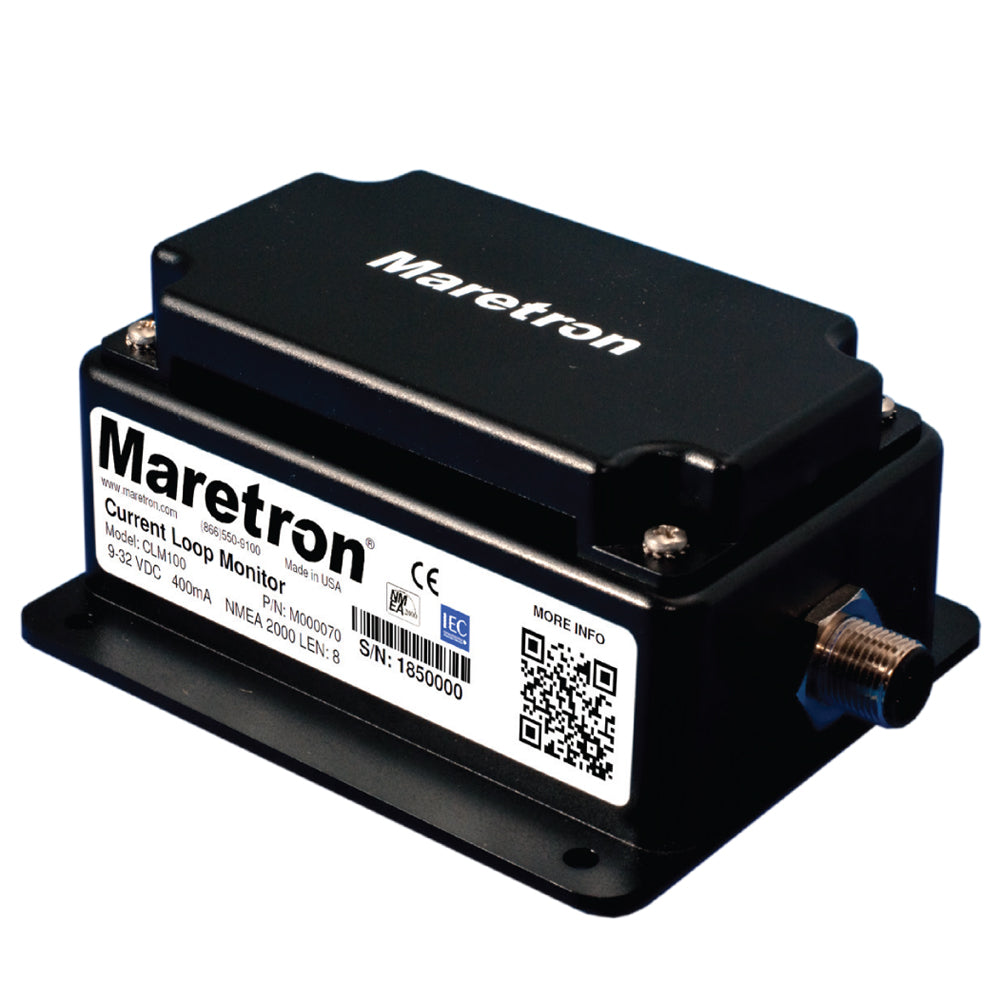

Maretron CLM100 Current Loop Monitor

Maretron's CLM100 converts commercially available 4-20mA current loop Transducers into digital data so a wide variety of information can be displayed on compatible NMEA 2000 displays. Numerous 4-20mA current loop Transducers are supported by the CLM100 including Transducers for monitoring DC voltage and current, flow rate, distance, linear velocity and acceleration, angle, angular velocity and acceleration, Temperature, humidity, resistance, strain gauges, force (load cells), pressure, decibels, and rotational rate.

Some typical applications where the CLM100 is used together with a commercial available 4-20mA Transducers include machinery monitoring using accelerometers and vibration sensors. Vibration monitoring of pumps, motors, fans, compressors, and gear boxes provides an early warning of potential problems resulting fewer breakdowns and reduced maintenance expenses. Another application example using the CLM100 is shaft speed monitoring. A commercially available 4-20mA rotational rate sensor is coupled to the shaft of interest and the CLM100 converts the Transducer data to an RPM that can be read by a compatible NMEA 2000 display. And if you're concerned about the force exerted on a mast stay or perhaps a vessel tow attachment point, commercially available clevis pins with a 4-20mA interface can be connected to the CLM100 and the corresponding load monitored using any of Maretron's display products. The CLM100 is NMEA 2000 certified so you can view any and all information anywhere on the vessel using a compatible NMEA 2000 display. The CLM100 is a key component of Maretron's N2KView vessel monitoring and control system.

* CLM100 requires configuration. (Maretron DSM150, DSM250, USB100, or IPG100 needed to configure)

CLM100 Current Loop Monitor

Maretron's CLM100 converts commercially available 4-20mA current loop transducers into digital data so a wide variety of information can be displayed on Maretron displays. Numerous 4-20mA current loop transducers are supported by the CLM100 including transducers for monitoring DC voltage and current, flow rate, distance, linear velocity and acceleration, angle, angular velocity and acceleration, temperature, humidity, resistance, strain gauges, force (load cell), pressure, decibels, and rotational rate. Some typical applications where the CLM100 is used together with a commercial available 4-20mA transducers include machinery monitoring using accelerometers and vibration sensors. Vibration monitoring of pumps, motors, fans, compressors, and gear boxes provides an early warning of potential problems resulting in fewer breakdowns and reduced maintenance expenses. Another application example using the CLM100 is shaft speed monitoring.

A commercially available 4-20mA rotational rate transducer is coupled to the shaft of interest and the CLM100 converts the transducer data to an RPM that can be read on a compatible NMEA 2000® display. And if you're concerned about the force exerted on a mast stay or perhaps a vessel tow attachment point, commercially available clevis pins with a 4-20mA interface can be connected to the CLM100 and the corresponding load monitored using any of
Maretron's display products.

Features:

• Used together with commercially available 4-20mA Current Loop Transducers

• Converts analog transducer data to digital data (NMEA 2000®)

• Digital data displayed on Maretron Displays

Portable party speaker, MFG#PBX-811SM, with 8-inch speaker, LED lighting, tripod, wireless microphone, built-in battery with AC adapter, USB and AUX input, bass and treble...

• Six Channels
• Each channel independently programmed
• Used Together with Commercially Available 4-20mA Current Loop Transducers
• Converts Analog Transducer Data to Digital Data (NMEA 2000)
• Digital Data Displayed on All Maretron Displays

Ideal for:

• Voltage Measurement
• Current Measurement
• Distance Measurement
• Linear Velocity Measurement
• Linear Acceleration Measurement
• Angle Measurement
• Angular Velocity Measurement
• Angular Acceleration Measurement
• Flow Rate Measurement
• Temperature Measurement
• Humidity Measurement
• Resistance Measurement
• Strain Gauge Measurement
• Force Measurement
• Pressure Measurement
• Decibel Measurement
• Rotational Rate Measurement

The following accessories are available for the CLM100 for channels configured to measure pressure:

• Pressure Transducer 0 to 1.5 PSI
• Pressure Transducer 0 to 3 PSI
• Pressure Transducer 0 to 5 PSI
• Pressure Transducer 0 to 10 PSI
• Pressure Transducer 0 to 50 PSI
• Pressure Transducer 0 to 100 PSI
• Pressure Transducer 0 to 300 PSI
• Pressure Transducer 0 to 500 PSI
• Pressure Transducer 0 to 1000 PSI
• Pressure Transducer 0 to 3000 PSI
• Pressure Transducer 0 to 5000 PSI

Also available:

• Pressure snubber
• Pressure Transducer Vacuum 0 to 1 Bar
• Indoor Humidity/Temperature Sensor

SKU: NVN-58325
MPN: CLM100-01
UPC: 873804003665
