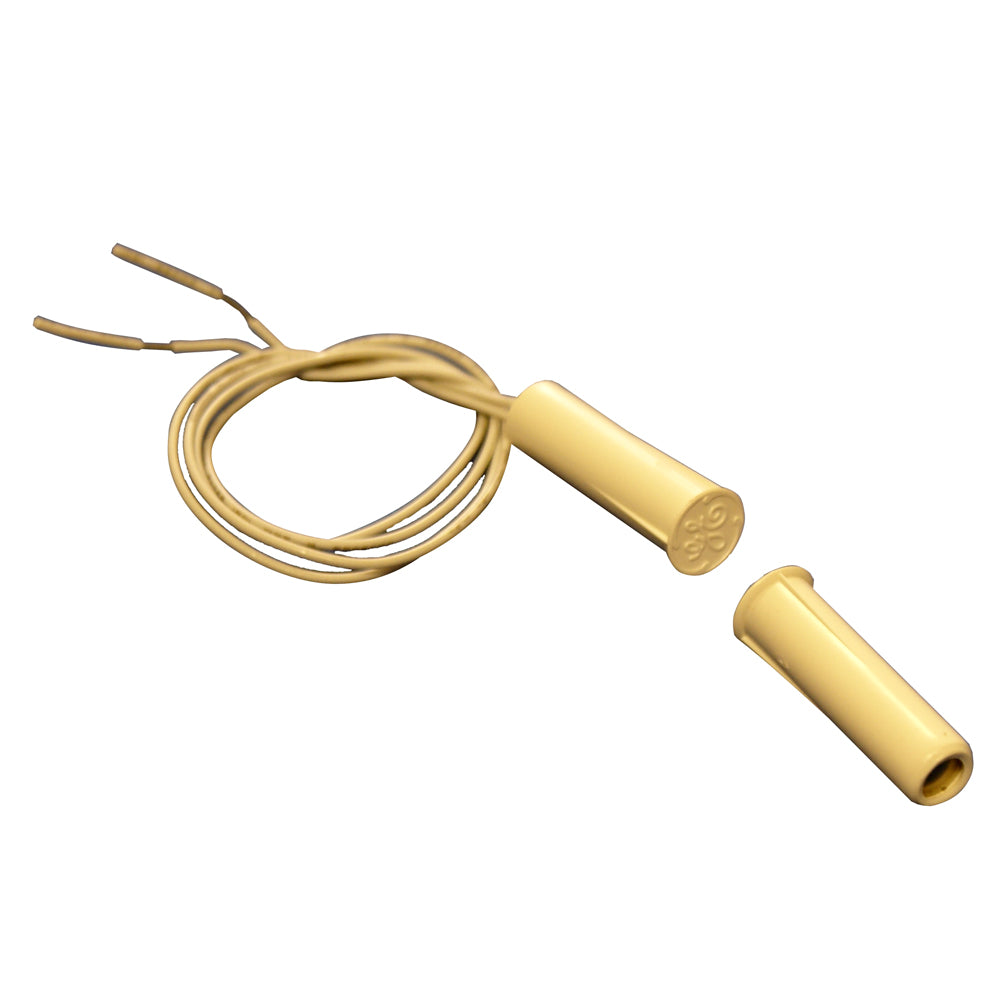

Maretron Magnetic Switch Recessed f/Indoor/Outdoor

This NMEA 2000 Magnetic Switch Recessed (Indoor/Outdoor) is an available SIM100 Accessory.

Maretron MS1075 Attributes

MS-1075 Magnetic Switch Recessed for Indoor/Outdoor

Applications:

• 3/8" press-fit mounting
• No screws or glue needed
• Heavy-duty housing resists crushing

Specifications:

• ABS Plastic Enclosure
• IP67
• Hermetically sealed reed switch encapsulated in polyurethane

WARNING: This product can expose you to chemicals including NICKEL (METALLIC) which is known to the State of California to cause cancer. For more information go to P65Warnings.ca.gov.

Ms-1075 magnetic switch embedded for indoor/outdoor applications: 3/8-inch press-fit installation, no screws or glue, heavy-duty housing to prevent extrusion Specifications:

• Enclosure: ABS Plastic
• Temperature Range: -40°F to 150°F (-40°C to 65°C)
• Environmental: Hermetically Sealed Reed Switch (Encapsulated in Polyurethane)
• NEMA Rating: 1, 2, 3, 4, 4x, 5, 6, 12
• Protection Class: IP 67
• Response Time: 1 msec max.
• Life Cycles: 100,000 Under Full Load, 10,000,000 Under Dry Circuit
• Lead Types/O.D: #22 wire / 0.05" (0.15cm)
• Color: Natural
• UL/ULC Listed: All Models

Warning— Each electrical rating is an individual maximum and cannot be exceeded!

Electrical:

• Part Number: 1075-N
• Contact Configuration: N.O. (Configuration with actuator away from the switch)
• Load Rating (AC/DC): 7.5W/VA
• Switching Voltage (AC/DC): 100V
• Switching Current (AC/DC): 0.5A
• Contact Resistance: 0.2 Ohms
• Sense Range Nominal: 1.3" (3.2cm) [Proximity of ferrous materials usually reduces sense range — typically by 50%. The shape and type of material cause a wide diversity of effects]
• Lead Length: 1'

Notes:

• Testing is required to determine actual sense range for specific applications.
• Gap distances are nominal make distance ± 20%.
• Gap Specifications are for switch to make.
• Break distance is approximately 1.1 to 1.5 times make.

SKU: NVN-47459
MPN: MS-1075
UPC: 873804002576
