Maretron Rectangular Magnetic Switch f/Indoor

This NMEA 2000 Magnetic Switch Rectangular (Indoor) is an available SIM100 Accessory.

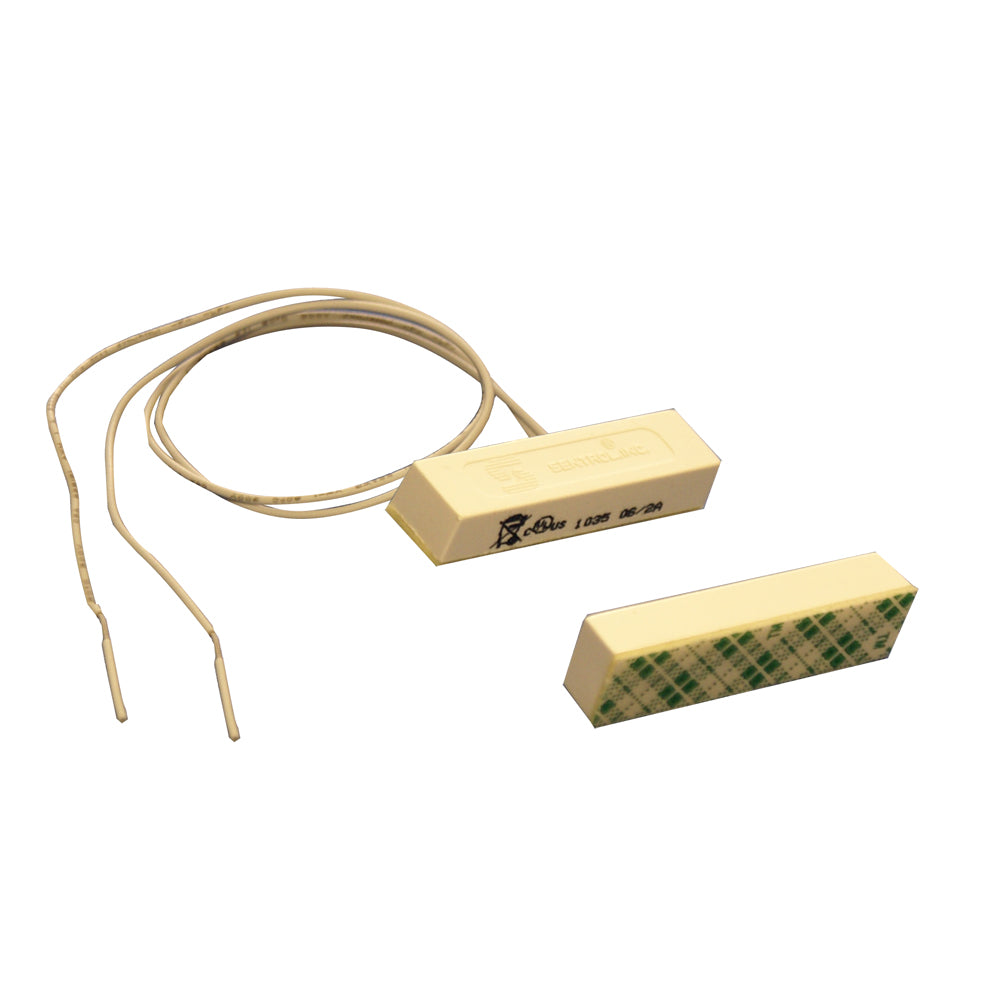

Rectangular Magnetic Switch for Indoor

The 1035 Series magnetic contact saves installation time through the use of a specially formulated 3Mr adhesive tape. The tape, which establishes a permanent bond between the contact and the surface, can be repositioned during the first 5 minutes. A low profile and small footprint combine
with reliable technology to make the 1035 Series the perfect magnetic contact for those situations where drilling holes is impractical.

Applications:

• Use to protect doors and windows where drilling holes is
  undesirable, such as thin-frame windows or on sliding glass doors.

WARNING: This product can expose you to chemicals including NICKEL (METALLIC) which is known to the State of California to cause cancer. For more information go to P65Warnings.ca.gov.

The 1035 series of rectangular magnetic switches used indoors saves installation time by using specially formulated 3Mr tape. tape...

• Enclosure: ABS Plastic
• Temperature Range: -40°F to 150°F (-40°C to 65°C)
• Environmental: Hermetically Sealed Reed Switch (Encapsulated in Polyurethane)
• NEMA Rating: 1, 2, 3, 4, 4x, 5, 6, 12
• Protection Class: IP 67
• Response Time: 1 msec max.
• Life Cycles: 100,000 Under Full Load, 10,000,000 Under Dry Circuit
• Lead Types/O.D: #22 wire / 0.05" (0.15cm)
• Color: Natural
• UL/ULC Listed: All Models

Warning— Each electrical rating is an individual maximum and cannot be exceeded!

Electrical:

• Part Number: 1035-N
• Contact Configuration: N.O. (Configuration with actuator away from the switch)
• Load Rating (AC/DC): 7.5W/VA
• Switching Voltage (AC/DC): 100V
• Switching Current (AC/DC): 0.5A
• Contact Resistance: 0.2 Ohms
• Sense Range Nominal: 0.5" (1.3cm) [Proximity of ferrous materials usually reduces sense range — typically by 50%. The shape and type of material cause a wide diversity of effects]
• Lead Length: 1'

Notes:

• Testing is required to determine actual sense range for specific applications.
• Gap distances are nominal make distance ± 25%.
• Gap Specifications are for switch to make.
• Break distance is approximately 1.1 to 1.5 times make.

SKU: NVN-47456
MPN: MS-1035
UPC: 873804002545
