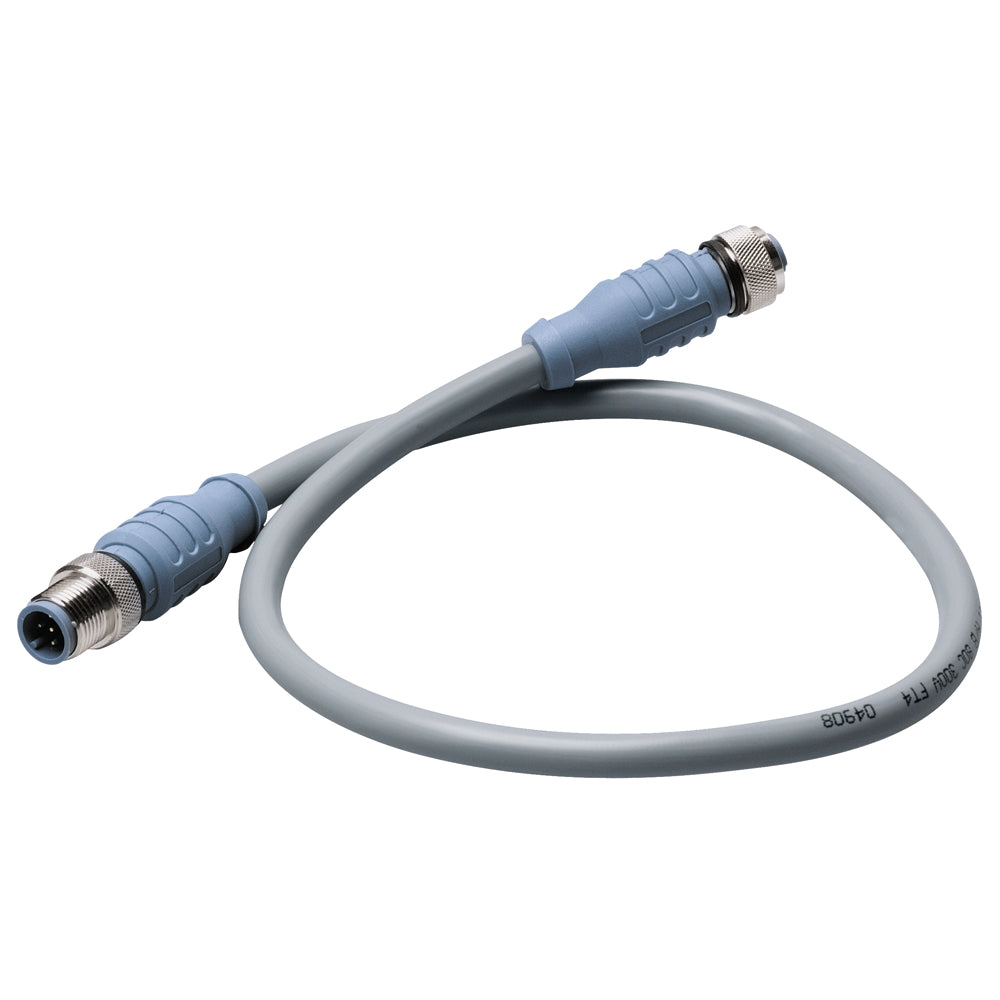

Maretron Mid Double-Ended Cordset - 7 Meter - Gray
Maretron

Maretron Mid Double-Ended Cordset - 7 Meter - Gray

SKU: 46997 · UPC: 873804001838 · MPN: DM-DG1-DF-07.0
★★★★★ 4.7 · 0 reviews
Authorized dealer12% off
$38.49
$43.80Save $5.31
or 4 payments of $9.62 with Affirm
Out of stock
Free shipping
Orders $500 or more
Free returns
Within 30 days
Same day shipping
Order before 3 PM (EST)
Ask anything
We're here to help
$38.49
01Buy 02Desc 03Specs 04FAQ 05Reviews
02 · Overview

Maretron Mid Double-Ended Cordset - 7 Meter - Gray — Product description

Maretron Mid Double-Ended Cordset - 7 M Gray

Mechanical:
  • Contact Carrier Mat/Color: Thermoplastic PUR/Blue-Gray
  • Molded Body Mat/Color: Thermoplastic PUR/Blue-Gray
  • Contact Mat/Plating: Brass/Gold
  • Coupling Nut Mat/Plating: Brass/Nickel
  • Connector Outside Diameter: 0.59"

    Electrical
  • Current Rating: 4.0 Amps
  • Voltage Rating: 250 V

    Cable

  • Outer Jacket Mat/Color: PVC/Gray
  • Conductor Insulation Material: PE (data pair), PVC (power pair)
  • Number of Conductors: 2x16 (1.29mm) AWG, Data 2x20 (0.81mm) AWG, 20 (0.81mm) AWG Drain Wire
  • Shielding (3 Levels): Alum/Polyester Foil (Overall), Foil (Power Pair), Foil (Data Pair)

    ENVIRONMENTAL
  • Protection Class: IEC IP68, NEMA 1,3,4,6P
  • Temperature Rating: -40 deg C to 80 deg C to (-40 deg F to 176 deg F)

    APPROVALS
  • (Cable) UL: PLTC 75 deg C Sunlight Resistant E90625, AWM 80 deg C 300V
  • (Cable) CSA: CMX-OUTDOOR-CMG LL54185 75 deg C, AWM I/II A/B 80 deg C 300V FT4
  • NMEA: NMEA 2000 Approved
  • IEC: IEC 61162-3

    Male to female. The double-ended cable set is used for the trunk line or the lead-in line, which can ensure safe connection and simple and time-saving installation. The connector's key prevents errors -...
    SKU: NVN-46997
    MPN: DM-DG1-DF-07.0
    UPC: 873804001838
    • 03 · The numbers

    Technical specifications

    BrandMaretron
    ModelMaretron Mid Double-Ended Cordset - 7 Meter - Gray
    SKU / MFR#46997

    Set product metafields under specs.* to populate this table.

    04 · Before you buy

    Frequently asked questions

    No questions yet. Got one? Drop us a line.
