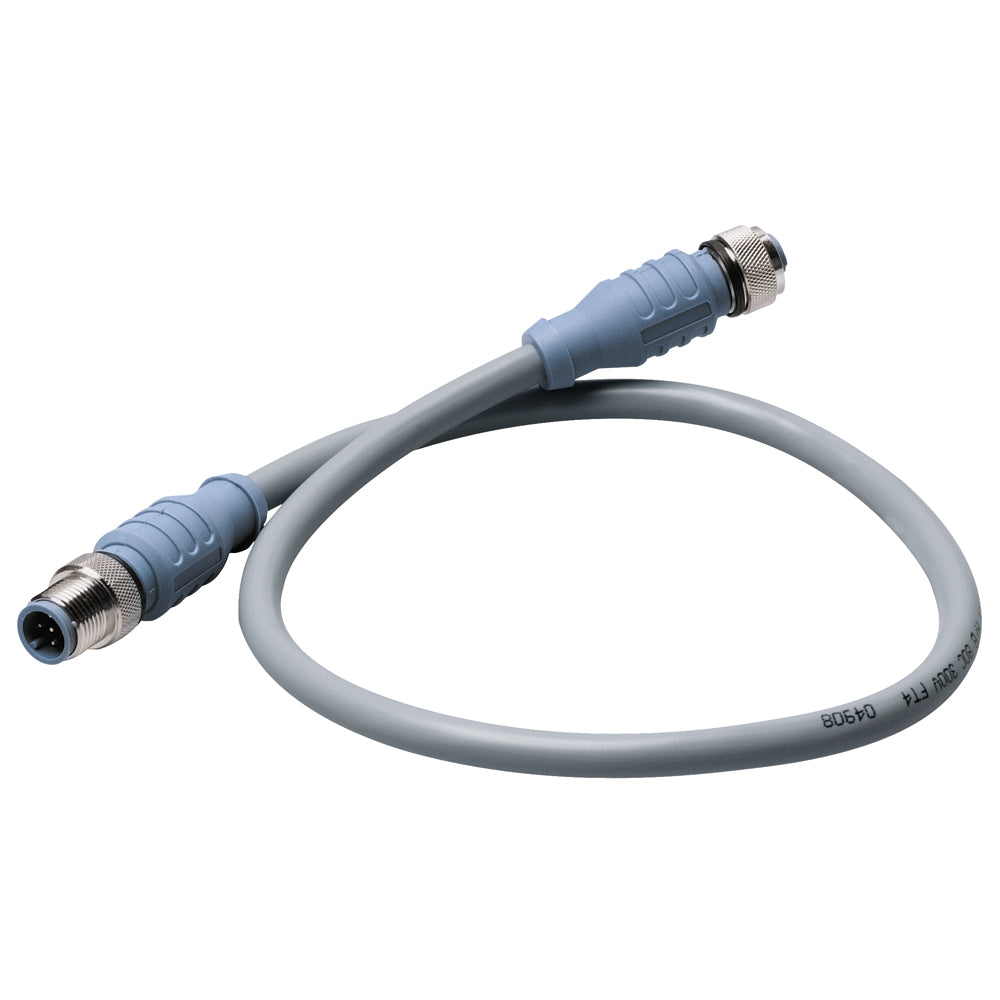

Maretron Mid Double-Ended Cordset - 6 Meter - Gray

SKU: 46996 · UPC: 873804001821 · MPN: DM-DG1-DF-06.0

★★★★★ 4.7 · 0 reviews

Authorized dealer13% off

$55.99

$65.00Save $9.01

or 4 payments of $13.99 with Affirm

Out of stock

Free shipping

Orders $500 or more

Free returns

Within 30 days

Same day shipping

Order before 3 PM (EST)

Ask anything

Maretron Mid Double-Ended Cordset - 6 Meter - Gray — Product description

Mid Double-Ended Cordset - M to F - 6m (gray) - Double-ended cordsets are used for trunk or drop lines and make for a secure connection and simple timesaving installation. The connectors are keyed for error-free connection and are waterproof for continued operation even while submerged in the bilge.

Maretron Mid Double-Ended Cordset - 6 M Gray

Mechanical:

Contact Carrier Mat/Color: Thermoplastic PUR/Blue-Gray

Molded Body Mat/Color: Thermoplastic PUR/Blue-Gray

Contact Mat/Plating: Brass/Gold

Coupling Nut Mat/Plating: Brass/Nickel

Connector Outside Diameter: 0.59"

Electrical

Current Rating: 4.0 Amps

Voltage Rating: 250 V

Cable

Outer Jacket Mat/Color: PVC/Gray

Conductor Insulation Material: PE (data pair), PVC (power pair)

Number of Conductors: 2x16 (1.29mm) AWG, Data 2x20 (0.81mm) AWG, 20 (0.81mm) AWG Drain Wire

Shielding (3 Levels): Alum/Polyester Foil (Overall), Foil (Power Pair), Foil (Data Pair)

ENVIRONMENTAL

Protection Class: IEC IP68, NEMA 1,3,4,6P

Temperature Rating: -40 deg C to 80 deg C to (-40 deg F to 176 deg F)

APPROVALS

(Cable) UL: PLTC 75 deg C Sunlight Resistant E90625, AWM 80 deg C 300V

(Cable) CSA: CMX-OUTDOOR-CMG LL54185 75 deg C, AWM I/II A/B 80 deg C 300V FT4

NMEA: NMEA 2000 Approved

IEC: IEC 61162-3

Male to female. The double-ended cable set is used for the trunk line or the lead-in line to ensure a firm connection and save installation time. The connector's key prevents errors...

Contact Carrier Mat/Color: Thermoplastic PUR/Blue-Gray
Molded Body Mat/Color: Thermoplastic PUR/Blue-Gray
Contact Mat/Plating: Brass/Gold
Coupling Nut Mat/Plating: Brass/Nickel
Connector Outside Diameter: 0.59â€

ELECTRICAL:

Current Rating: 4.0 Amps
Voltage Rating: 250 V

CABLE:

Outer Jacket Mat/Color: PVC/Gray
Conductor Insulation Material: PE (data pair), PVC (power pair)
Number of Conductors: 2x16 (1.29mm) AWG, Data 2x20 (0.81mm) AWG, 20 (0.81mm) AWG Drain Wire
Shielding (3 Levels): Alum/Polyester Foil (Overall), Foil (Power Pair), Foil (Data Pair)

ENVIRONMENTAL:

Protection Class: IEC IP68, NEMA 1,3,4,6P
Temperature Rating: -40°C to 80°C to (-40°F to 176°F)

APPROVALS:

(Cable) UL: PLTC 75°C Sunlight Resistant E90625,
AWM 80°C 300V
(Cable) CSA: CMX-OUTDOOR-CMG LL54185 75°C,
AWM I/II A/B 80C 300V FT4
NMEA: NMEA 2000 Approved
IEC: IEC 61162-3

SKU: NVN-46996
MPN: DM-DG1-DF-06.0
UPC: 873804001821
