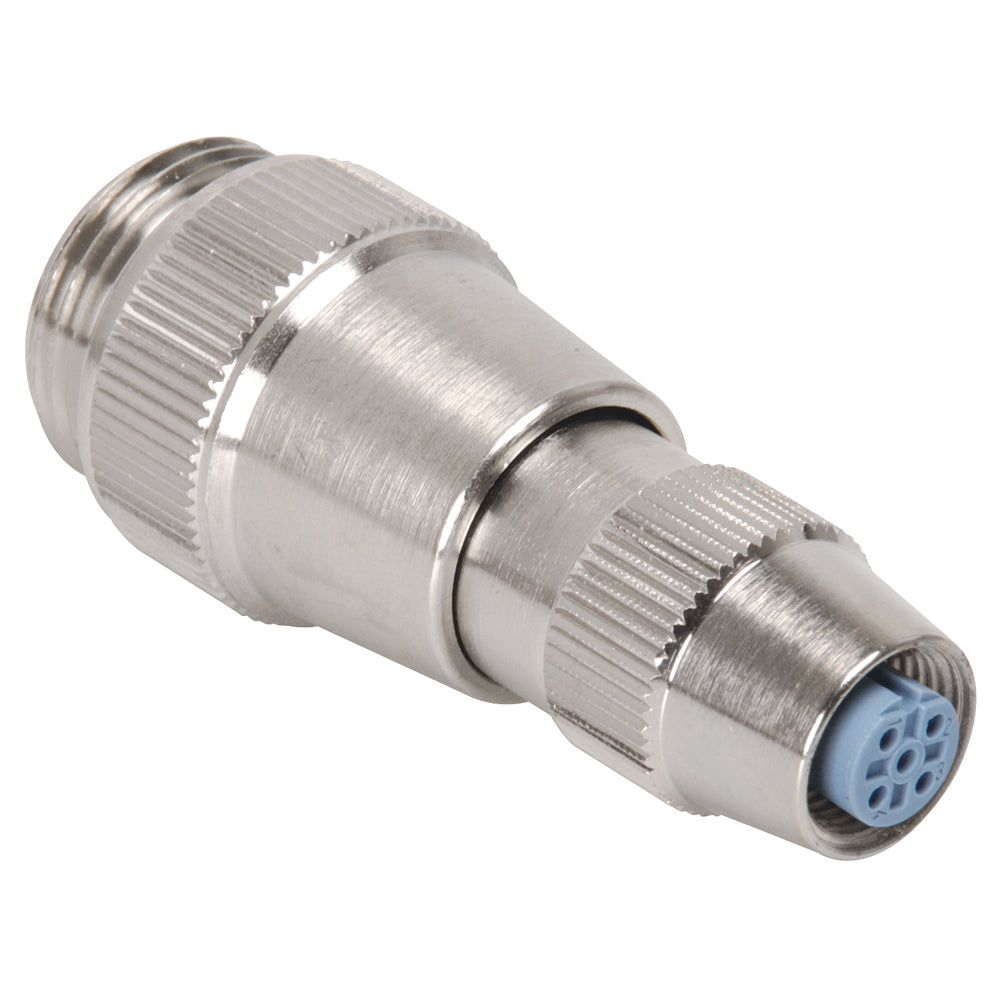

Maretron NM-CF Mini Male to Micro Female Reducer

The Reducer is used to change from a Mini cable to a Micro or Mid Cable. For example, one end of the network might be terminated at the top of the mast but it may not be desirable to run a mini trunk cable up the mast. In this case, you can switch over to a micro or mid cable at the base of the mast using the Reducer and continue up the mast with Micro or Mid Cable. Corrosion resistant Nickel plated Brass. Weatherproof to IP67. Reduces Mini Backbone to Micro/Mid Cable.

Maretron NMCF Attributes

Maretron NM-CF Mini Male to Micro Female Reducer

The reducer is used to change from a Mini cable to Micro or Mid cable. For example, one end of the network might be terminated at the top of the mast but it may not be desireable to run a Mini trunk cable up the mast. In this case, you can switch over to Micro or Mid cable at the base of the mast using the reducer and continue up the mast with Micro or Mid cable.

Corrosion resistant Nickel plated Brass

Weatherproof to IP67

Reduces Mini Backbone to Micro/Mid Cable

For example, one end of the network may terminate at the top of the antenna mast, but it may not be desirable to put a mini relay cable on the antenna mast. In this case, you can switch...

• Contact Mat/Plating: Brass/Gold
• Coupling Nut Mat/Plating: Brass/Nickel

ELECTRICAL:

• Rated Current: 4.0 Amps
• Rated Voltage: 250 V

ENVIRONMENTAL:

• Protection Class: IEC IP67, NEMA 1,3,4
• Temperature Range: -40°c TO 75°C (-40°F to 167°F)

APPROVALS:

• NMEA: NMEA 2000 APPROVED
• IEC: IEC 61162-3

SKU: NVN-46969
MPN: NM-CF
UPC: 873804002002
