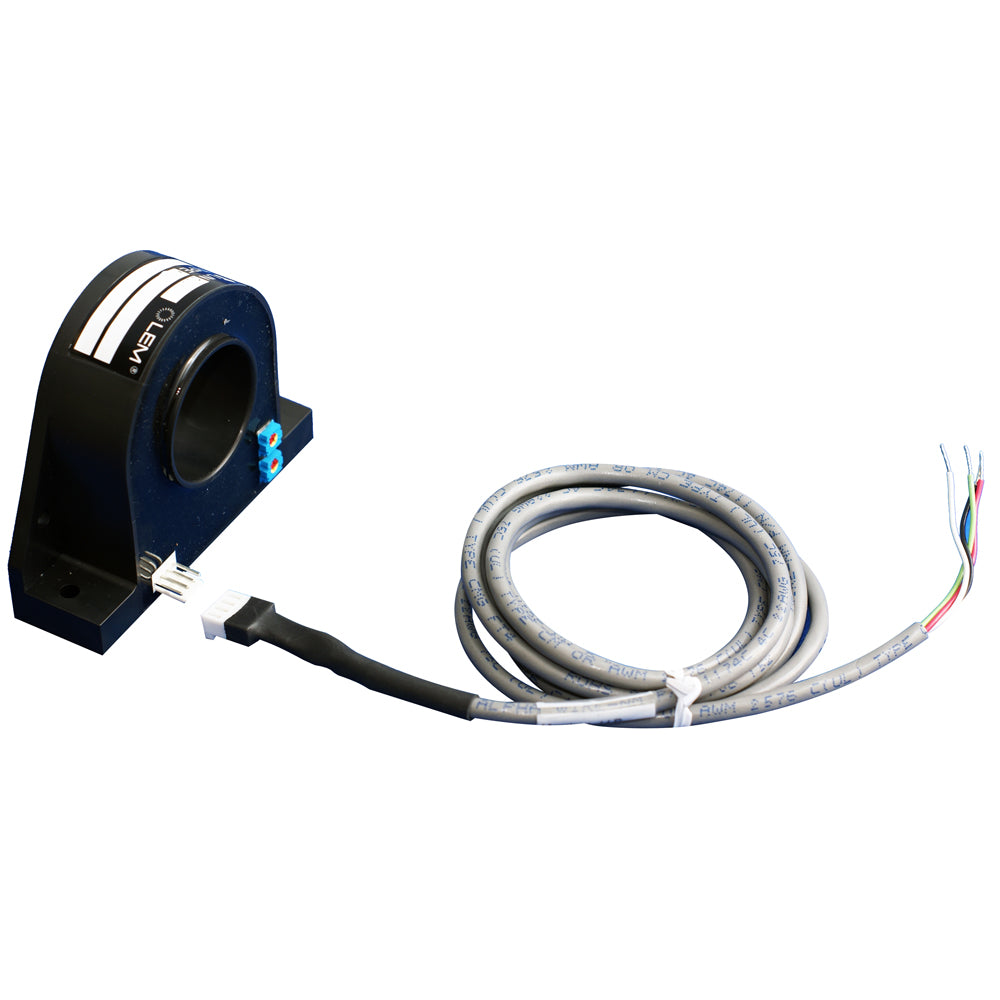

Maretron Current Transducer w/Cable f/DCM100 - 600 Amp

This Maretron 600 Amp DC Transducer with Cable is an available DCM100 accessory.

Maretron LEMHTA600S Attributes

Current Transducer w/Cable - 600 amp - f/DCM100

WARNING: This product can expose you to chemicals including NICKEL (METALLIC) which is known to the State of California to cause cancer. For more information go to P65Warnings.ca.gov.

Current transformer with cable-600 Ampere-f / DCM100 Warning: This product can expose you to chemicals known to the State of California, including nickel (METALLIC), which can cause...

From the factory, the DCM100 is configured to use a 200A Hall effect current sensor. If you are

using a 400A or 600A current sensor, you should configure the DCM100 for the proper sensor

type.

Pin Number Signal Name Connection

• 1 IA Current Sensor, Red Wire
• 2 IB Current Sensor, Green Wire
• 3 IC Current Sensor, Black Wire
• 4 ID Current Sensor, White Wire
• 5 V SENS+ Battery, + Terminal
• 6 V SENS- Battery, - Terminal
• 7 V PWR- Vessel Ground
• 8 V PWR+ 9-32 VDC Power
• 9 N/A No Connect
• 10 N/A No Connect
• 11 TA Temperature Sender, Red Wire
• 12 TB Temperature Sender, Black Wire

SKU: NVN-46965
MPN: LEMHTA600-S
UPC: 873804002798
