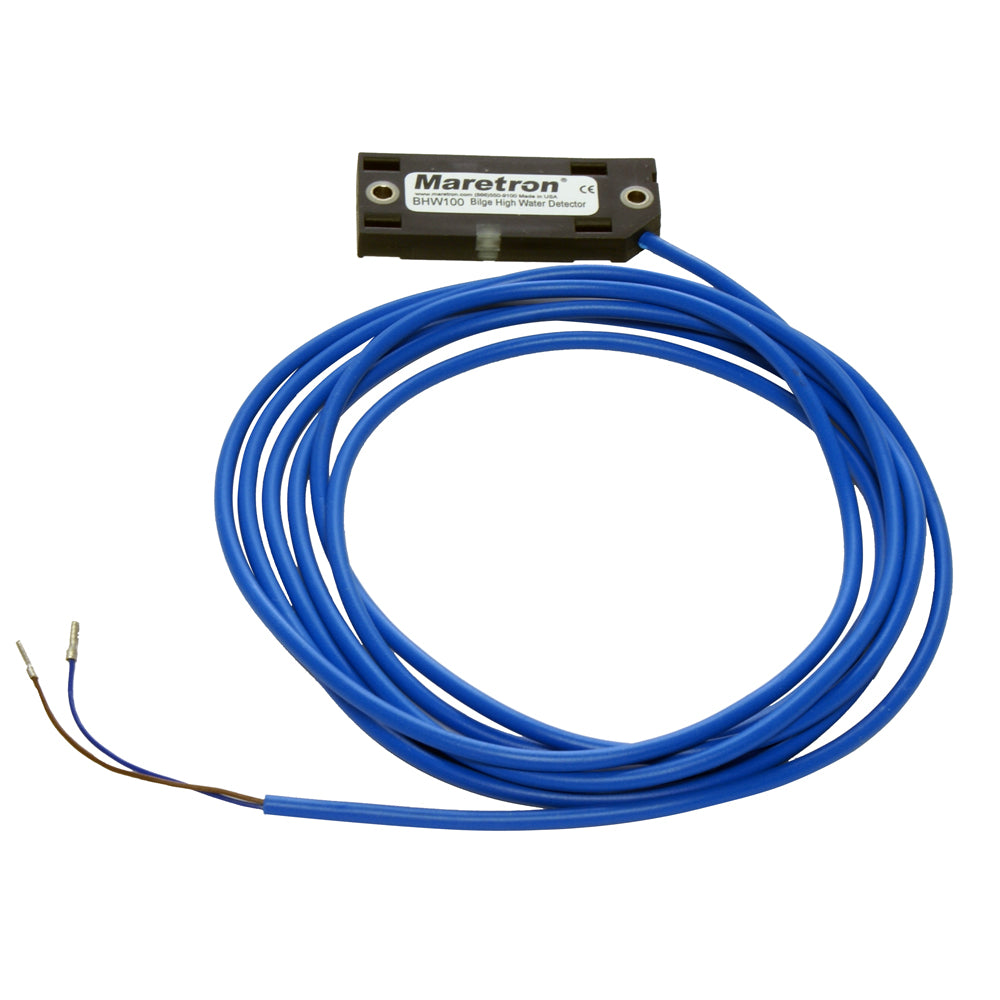

Maretron BHW100 Bilge High Water Detector

This BHW100 Bilge High Water Detector is an available accessory for the SIM100. The sensor has a target molded into the plastic enclosure (opposite the side with the Maretron label). The target should be exposed so that when the water rises above the middle of the target, the BHW100 will indicate high water by illuminating the red LED and sending a signal to the Maretron Switch Indicator Module (SIM100). It should be mounted to a vertical wall in the bilge. The BHW100 acts immediately to rising water.

Maretron BHW100 Attributes

Bilge High Water Detector
Part #: BHW100

Used with SIM100 Switch Indicator Module to detect high bilge water.

WARNING: This product can expose you to chemicals including NICKEL (METALLIC) which is known to the State of California to cause cancer. For more information go to P65Warnings.ca.gov.

LED flood light, MFG#LL-4, used outdoors. Includes 24 interchangeable holiday patterns, mounting pegs and AC adapter. Dimensions: 9" x 6" x 8".

BHW100 cable contains one blue and one brown wire.

1. Brown wire: Connect to a free switch channel "A" terminal on the SIM100 (Example: SW1A).
2. Blue wire: Connect to the corresponding terminal (Example: SW1B).

Brown wire must be connect to the "A" terminal of the switch channel and the Blue wire must be connected to the "B" terminal of the switch channel. Reversing this connection will cause a malfunction.

SKU: NVN-44311
MPN: BHW100
UPC: 873804002521
