Maretron Alarm Module

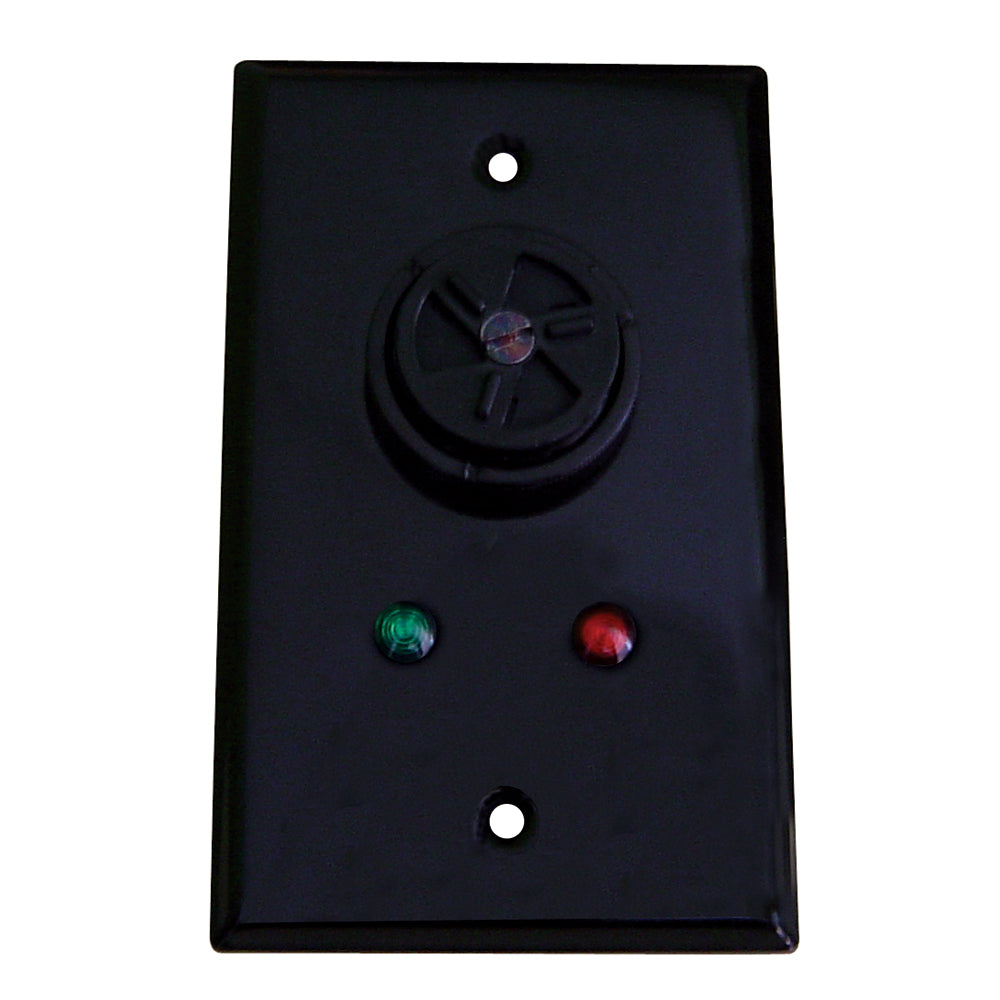

Maretron's Alarm Module generates visual and audible alerts for any monitored condition. It includes an extremely loud 105 dB SPL Piezoelectric sounder, along with a red high-brightness LED to indicate an alarm condition. A second green LED indicates that the Alarm Module is powered and ready to be triggered. The audible alarm can sound any one of 32 distinct pre-programmed patterns to indicate different alerts.

The Alarm Module can be triggered by alarms generated by Maretron's N2KView Vessel Monitoring System, or by Maretron's DSM250 Color Graphics Display. The Alarm Module mounts in a standard electric box or can be flush mounted on any surface. Completely waterproof, the Alarm Module can be mounted inside or outside the vessel.

Maretron's Alarm Module generates visual and audible alerts for any monitored condition. The Alarm Module includes an extremely loud 105 dB SPL Piezoelectric sounder, along with a red high-brighness LED to indicate an alarm condition. A second green LED indicated that the Alarm Module is powered and ready to be triggered. The audible alarm can sound any one of 32 distinct pre-programmed patterns to indicate different alerts. The Alarm Module can be triggered by alarms generated by Maretron's N2KView Vessel Monitoring System, or by Maretron's DSM250 Color Graphics Display. The Alarm Module mounts in a standard electric box or or can be flush mounted on any surface. Completely waterproof, the Alarm Module can be mounted inside or outside the vessel.

Bluetooth party speaker, MFG#PBX-5, 6.5 inch speaker with RGB LED lighting. Bluetooth, USB and AUX input. FM tuner, rechargeable battery, AC adapter, microphone input. Size: 13.9 inches x...

• NMEA 2000 Network Interface
• Super loud 105dB audible alarm
• Bright Red LED visual alarm
• Green LED status indicator
• Mounts in standard electrical wall box or flush mount directly in wall
• 32 selectable alarm patterns
• Waterproof - Can be mounted indoors or outdoors

In the box:

• 1 – ALM100 Alarm Module
• 1 – ALM100 Black Faceplate
• 2 – ALM100 Mounting Screws
• 2 – Faceplate Mounting Screws
• 1 – Faceplate Gasket
• 1 – Sounder Volume Control Baffle Plate
• 1 – Sounder Volume Control Shutter
• 1 – Screw for Sounder Volume Control
• 1 – Sounder Collar
• 1 – Sounder Gasket
• 1 – ALM100 User's Manual
• 1 – Warranty Registration Card

SKU: NVN-38853
MPN: ALM100-01
UPC: 873804000213
