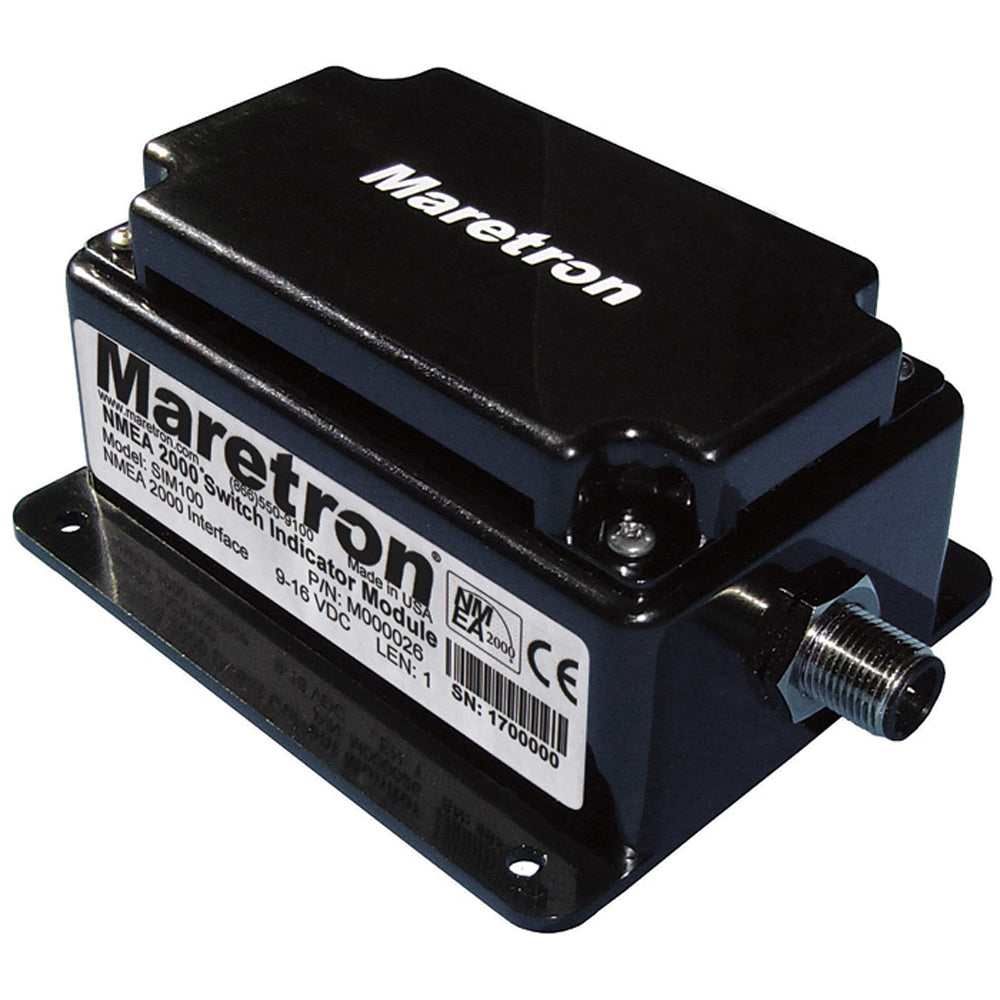

Maretron SIM100 Switch Indicator Module

Maretron's Switch Indicator Module monitors switch closure devices including, but not limited to, safety equipment (e.g., heat, smoke, carbon monoxide, explosive vapor detectors), security systems (e.g., motion, vibration, glass break, door and port hole magnetic switches), and vessel monitoring equipment (e.g., valve closed/open, high water bilge). The SIM100 continually monitors these switch closure devices and broadcasts information over the NMEA 2000 network about the switch state so the crew can be alerted to potential conditions or problems that warrant further investigation.

Advanced features of the SIM100 include the ability to detect whether or not power has been disconnected from the monitored device or if the signal wires have been disconnected due to either corrosion, tampering, or for any other reason (if the monitored device is so equipped).

With the SIM100, you can rest assured that critical sensors are receiving power, signal wires are connected, and all the safety, security and vessel functions are under constant supervision. SIM100 output information is then displayed with networked NMEA 2000 equipment such as Maretron's DSM250 or DSM410 dedicated displays or with NMEA 2000 compatible software such as Maretron's N2KView.

Best of all, the SIM100 is NMEA 2000 certified so you can view any and all switch indicator status anywhere on the vessel using a compatible NMEA 2000 display. The SIM100 is a key component of Maretron's N2KView vessel monitoring and control system.

 *SIM100 requires configuration if two or more DCR100s, RIM100s, or SIM100s exist on single network (Maretron DSM250, DSM410, USB100, or IPG100 needed to configure)

SIM100 Switch Indicator Module

Maretron's Switch Indicator Module monitors switch closure devices including, but not limited to, safety equipment (heat, smoke, carbon monoxide, explosive vapor detectors), security systems (motion, vibration, glass break, door and port hole magnetic switches), and vessel monitoring equipment (valve closed/open, high water bilge). The SIM100 continually monitors these switch closure devices and broadcasts information of the NMEA 2000 network about the switch state so the crew can be alerted to potential conditions or problems that warrant further investigation. Advanced features of the SIM100 include the ability to detect whether or not power has been disconnected frmo the monitored device or if the signal wires have been disconnected due to either corrosion, tampering, or for any other reason (if the monitored device is so equipped). With the SIM100, you can rest assured that ciritcal sensors are receiving power, signal wires are connected, and all the safety, security, and vessel functions are under constant supervision.

Features:

Monitors and reports switch status

Can detect and report problems like opens and shorts in switch circuits

Compatible with Maretron Supplied: Heat detectors, Smoke detectors, Carbon monoxide detectors, Bilge water detectors

Also compatible with : Magnetic switches, Glass break detectors, Door, hatch, and porthole magnetic switches

Specifications:

• Heat Detectors

• Smoke Detectors

• Carbon Monoxide Detectors

• Gas Detectors

• Bilge Water Detectors

• Magnetic Switches

• Glass Break Detectors

• Clogged Fuel Filter Detection (Excessive vacuum)

• Door, Hatch, and Porthole Magnetic Switches

Whether you are a professional or a person who likes to cruise, you can make the most of your boat and time on the water! Based on the premise of considering the highest quality standards and reliability, each...

• Monitors and reports the running statuses of six independently connected devices
• Can detect and report problems like opens and shorts in switch circuits

Applications:

• Heat detectors
• Smoke detectors
• Carbon monoxide detectors
• Gas detectors
• Bilge water detectors
• Magnetic switches
• Glass break detectors
• Clogged fuel filter detection (Excessive vacuum)
• Door, hatch, and porthole magnetic switches

Electrical:

• End of Line Resistor: 8 KΩ ± 5% (Included with Maretron-supplied sensors)
• Operating Voltage: 9 to 32 Volts (DC Voltage)
• Power Consumption: 100 mA (NMEA 2000 Interface)
• Load Equivalence Number (LEN): 2 (NMEA 2000 Spec. [1LEN = 50 mA])
• Reverse Battery Protection: Yes (Indefinitely)
• Load Dump Protection: Yes (Energy Rated per SAE J1113)

SKU: NVN-34159
MPN: SIM100-01
UPC: 873804000190
