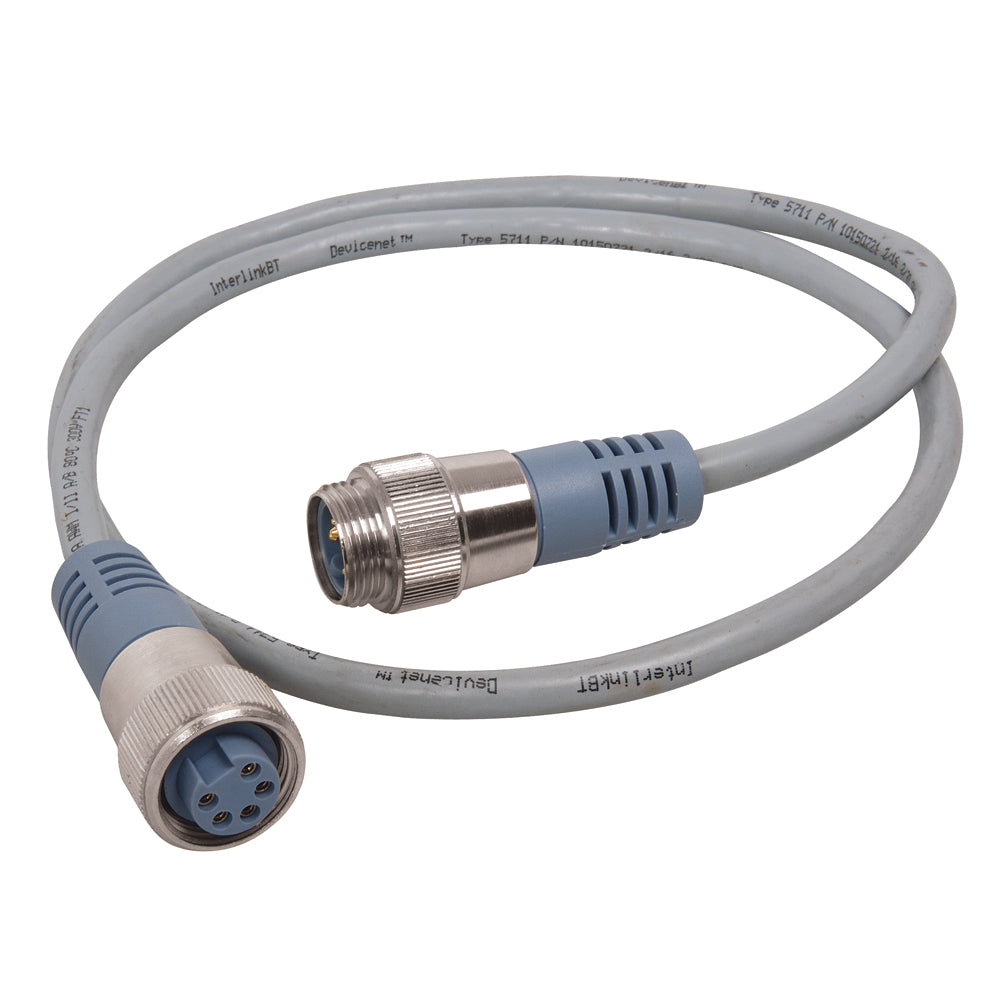

Maretron Mini Double Ended Cordset - Male to Female - 2M - Grey

Mini Double-Ended Cordset - M to F - 2m (gray) - Double-ended cordsets are used for trunk or drop lines and make for a secure connection and simple timesaving installation. The connectors are keyed for error-free connection and are waterproof for continued operation even while submerged in the bilge.

Mini Double Ended Cordset - Male to Female - 2M - Grey

Double-ended cordsets are used for trunk or drop lines and make for a secure connection and simple time saving installation. The connectors are keyed for error-free connection and are waterproof for continued operation even while submerged in the bilge.

• Rugged, IP68 rated connectors for continued connection integrity in marine environment
• Various cable lengths to match installation requirements

Male to female. The product is made of high-quality materials and can provide you with many years of service. Use the most advanced technology to design and consider the customer. it will ...

• Contact Carrier Mat/Color: Thermoplastic PUR/Blue-Gray
• Molded Body Mat/Color: Thermoplastic PUR/Blue-Gray
• Contact Mat/Plating: Brass/Gold
• Coupling Nut Mat/Plating: Brass/Nickel
• Connector Outside Diameter: 1.06”

ELECTRICAL:

• Current Rating: 9.0 Amps
• Voltage Rating: 300 V

CABLE:

• Outer Jacket Mat/Color: PVC/Blue
• Conductor Insulation Material: PE (data pair), PVC (power pair)
• Number of Conductors: 2x15 (1.45mm) AWG, 2x18 (1.02mm) AWG, 18 (1.02mm) AWG Drain Wire
• Shielding (3-Levels): Braid (Overall), Foil (Power Pair), Foil (Data Pair)

ENVIRONMENTAL:

• Protection Class: IEC IP67, NEMA 1,3,4,6P
• Temperature Rating: -40°C to 80°C (-40°F to 176°F)

APPROVALS:

• (Cable) UL: PLTC 75°C Sunlight Resistant E90625, AWM 80°C 300V
• (Cable) CSA: CMX-OUTDOOR-CMG LL54185 75°C, AWM I/II A/B 80C 300V FT4
• NMEA: NMEA 2000 Approved
• IEC: IEC 61162-3

SKU: NVN-33352
MPN: NM-NG1-NF-02.0
UPC: 873804002057
