Maretron Current Transducer w/Cable f/ACM100

This 100 Amp AC Current transducer with cable is included with the purchase of an ACM100.

Maretron M000630 Attributes

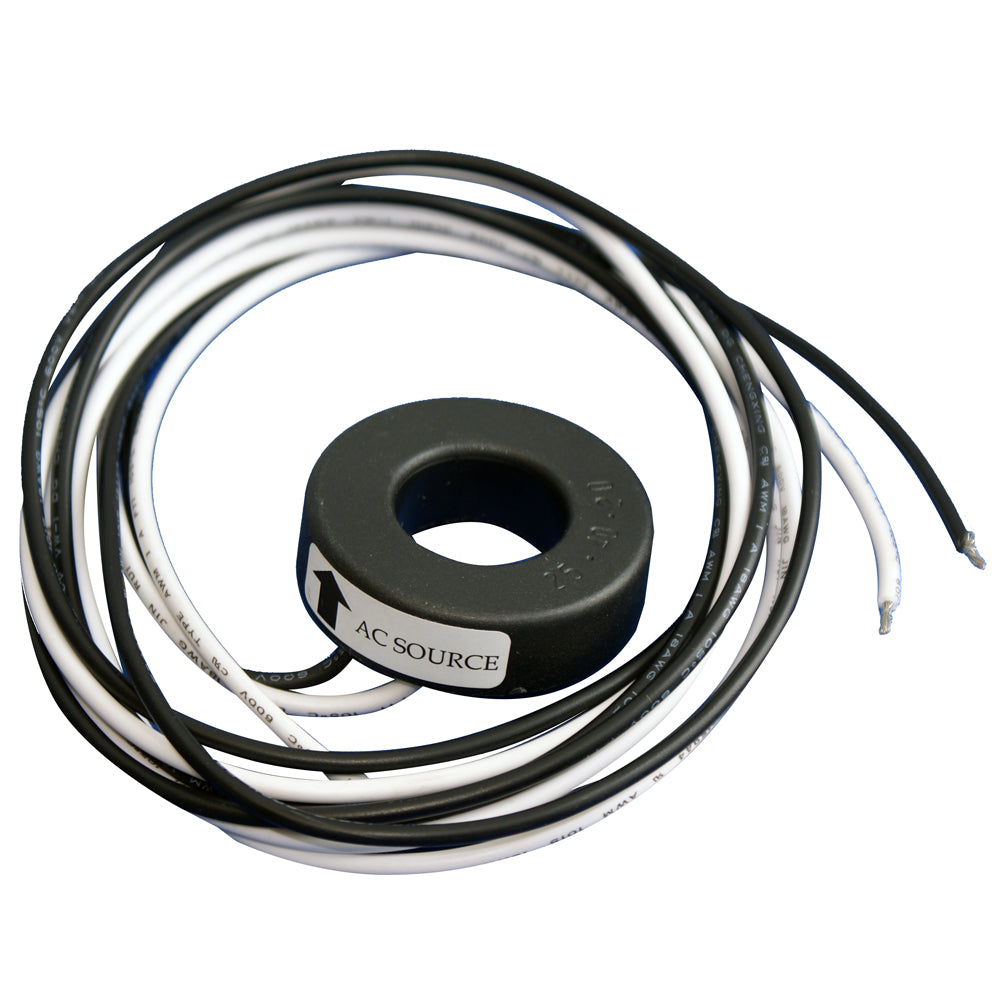

Current Transducer with Cable

Maretron's Current Transducer is specifically used with Maretron's ACM100 Alternating Current Monitor.

Features:

• Includes Cable

WARNING: This product can expose you to chemicals including NICKEL (METALLIC) which is known to the State of California to cause cancer. For more information go to P65Warnings.ca.gov.

The current transformer with CableMaretron is specially used with Maretron's ACM100 AC current monitor. Features: Including Cable Warning: This product...

Included with ACM100.

Electrical:

• Current Range: 100 Amps
• Output Ratio to Input: 1000:1 (100maAC Max)
• Frequency Range: 45-60HZ
• Dielectric Withstand: 1000VAC (RMS)
• Insulation resistance Class: .5KV
• Fully Encapsulated
• Signal Leads: Standard Length; 18”
• Wire Size 18GA. 300VAC; Optional 600VAC
• Operating Temperature –40C to 80C
• Accuracy: ± 1% @ 50-60HZ

SKU: NVN-33347
MPN: M000630
UPC: 873804002453
