Maretron Battery Harness w/Fuse f/DCM100

This FC01 Maretron Battery Harness with Fuse is included with the DCM100 Direct Current/ Battery Monitor. Connected as the power cable for the DCM100 and also used as a battery sense cable.

Battery Harness w/Fuse f/DCM100

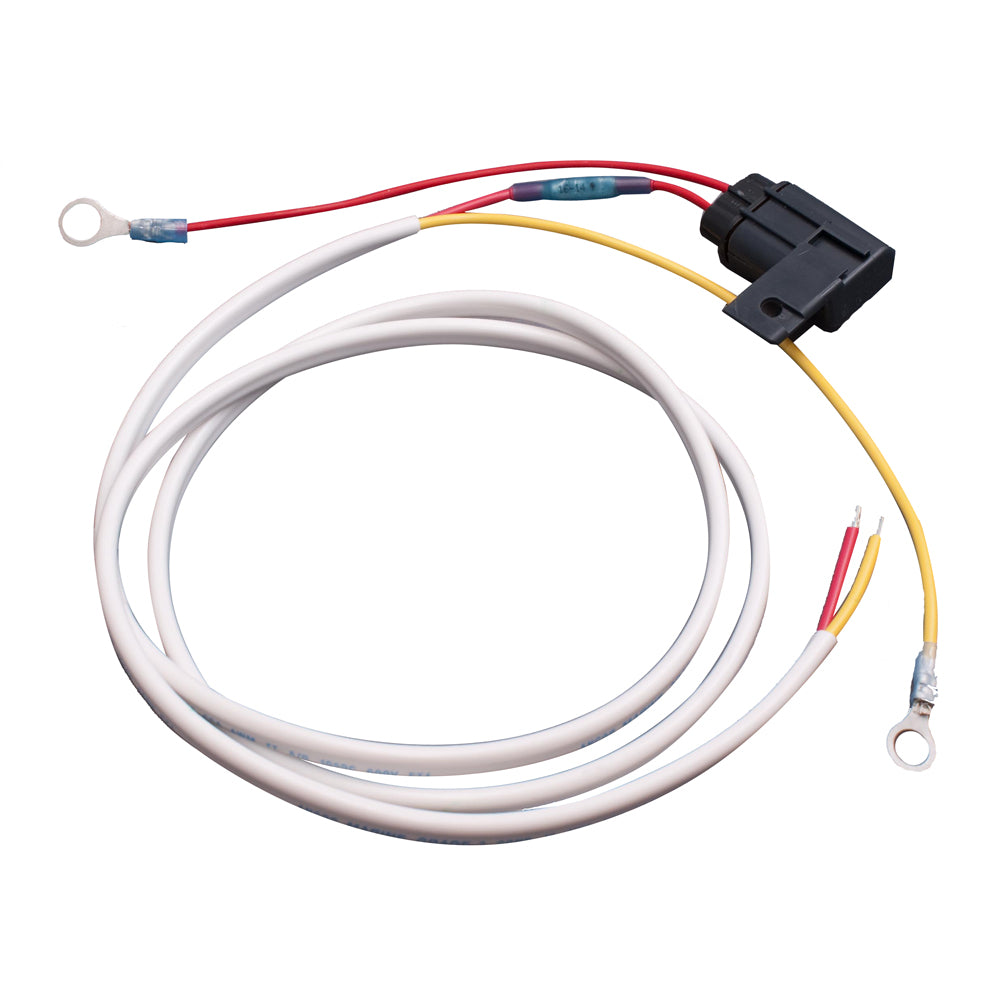

The Maretron FC01 is a battery harness with fuse for the Maretron DCM100 Direct Current DC Monitor.

What is more interesting and meaningful than boating in open water? This is an excellent solution to meet your boating needs. This product is very suitable for use in all marine equipment.

Included with the DCM100

For Powering:

1. Yellow Wire: One end to pin #7 (VPWR-) on the DCM100 and other end to vessel ground (Note: The terminal should either be at the same voltage as pin #6 (VSENS-) or less).
2. Red Wire: First end to pin #8 (VPWR+) on the DCM100 and other end to source of 9-32 VDC power (Note: This wire may or may not be connected to the same place as the red wire from the Battery Sense Cable).

For Battery Sensing:

1. Yellow Wire: One end to pin #6 (VSENS-) on the DCM100 and other end to negative terminal of the battery or DC source (May or may not be same as vessel ground; should either be at the same voltage as pin #7 (VPWR-) or more).
2. Red Wire: First end to pin #5 (VSENS+) on the DCM100 and other end to positive terminal of battery or DC source.

FC01 cables are shipped with 1 Ampere fuses installed. This is the largest amperage fuses recommended; any larger could cause damage to the unit.

SKU: NVN-33345
MPN: FC01
UPC: 873804001425
