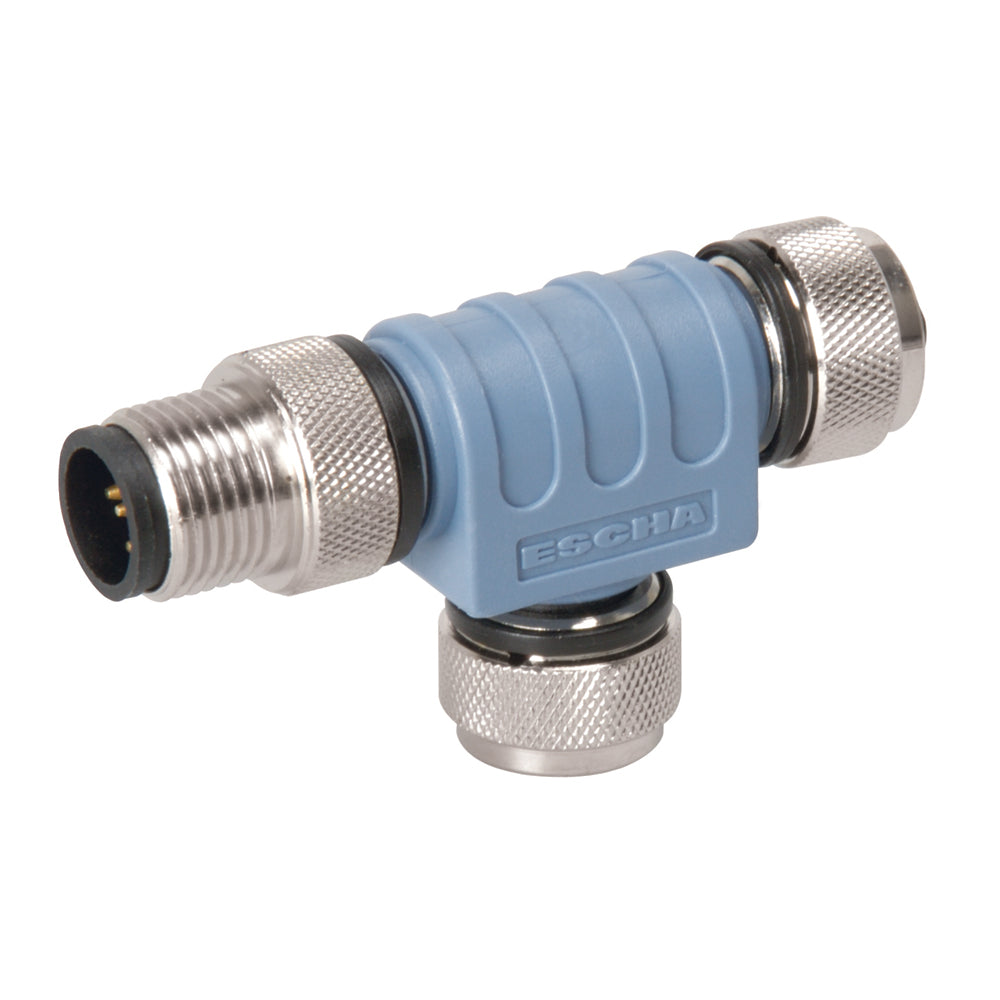

Maretron Micro Tee

A Micro Tee is used to tap into the trunk line for adding a drop connection. Tees can be mated with all other devices on the network of the same connector style. Provides male/female connections.

Micro Tee

A Tee is used to tap into the trunk line for adding a drop connection. The standard tee is also available with a cap for a protected diagnostic connection. Tees can be mated with all other devices on the network of the same connector style.

Gold contacts for greatest reliability

Keyed connectors for error-free connections

Male (left)
Female (right)
Female (Bottom)


Micro Tee Tee is used to insert a trunk line to add incoming connections. The standard tee also comes with a cover to protect the diagnostic connection. Tee can...

• Molded Body Mat/Color: Thermoplastic PUR/Blue
• Contact Carrier Mat/Color: PA 6 (Nylon)/Black
• Contact Mat/Plating: Brass/Gold
• Coupling Nut Mat/Plating: Brass/Nickel

ELECTRICAL:

• Rated Current: 4.0 Amps
• Rated Voltage: 60 V

ENVIRONMENTAL:

• Protection Class: IEC IP67, NEMA 1,3,4,6
• Operating Temperature: -40°C TO 80°C (-40°F to 176°F)
• APPROVALS NMEA: NMEA 2000 Approved
• IEC: IEC 61162-3

SKU: NVN-31789
MPN: CM-CF-CF
UPC: 873804001647
