Maretron N2KMeter Diagnostic Tool f/ NMEA 2000®

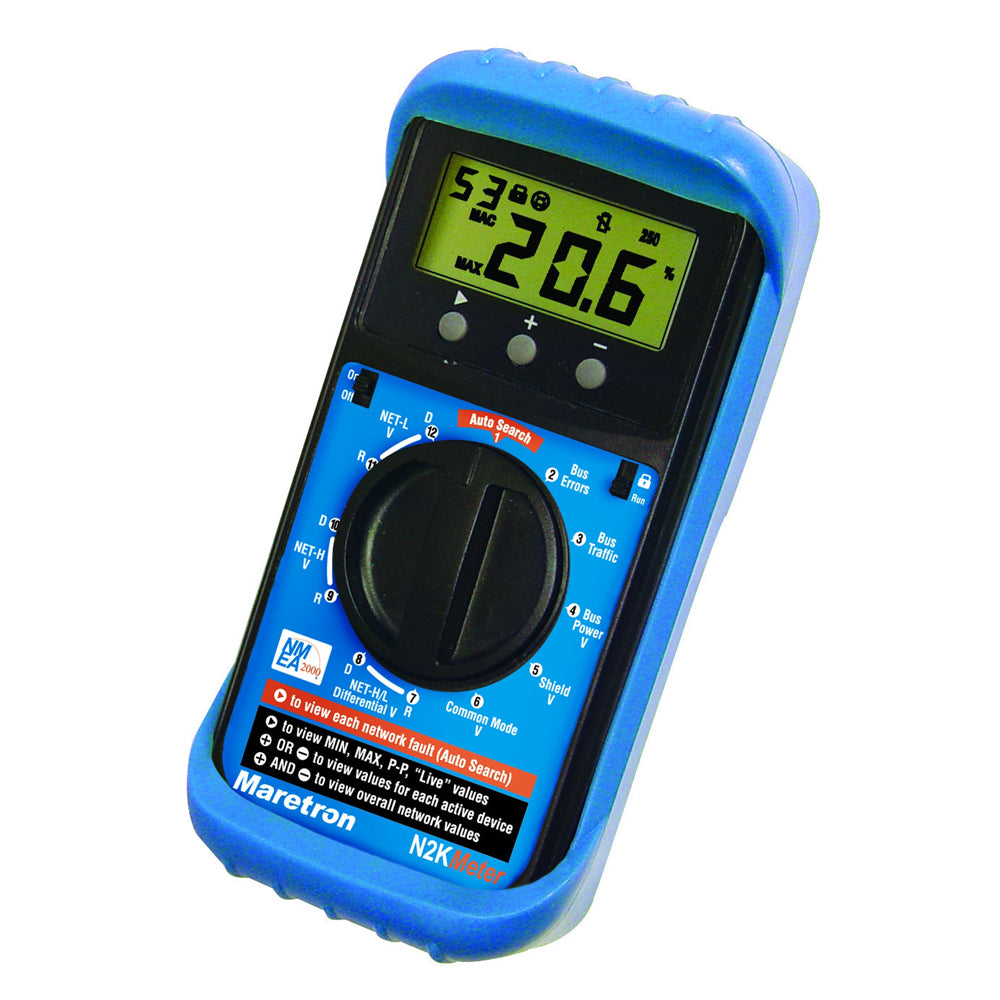

The N2KMeter is a diagnostic tool for NMEA 2000 networks that allows users to validate NMEA 2000 network compatibility and operations during installation of a device or complete system, and diagnose possible network flaws or failures that occur on an operational network. N2KMeter provides the detailed technical information an NMEA 2000 troubleshooting expert needs, yet it simplifies and summarizes, allowing an NMEA 2000 novice to effectively identify and diagnose network problems. Battery-powered operation allows a novice user to save readings for experts to analyze later, off the boat.

The N2KMeter enables trained and untrained personnel to diagnose and troubleshoot network installations quickly and easily. Passive on the network, it analyzes both network-wide and device-specific traffic. Detects bus idle and 100% of individual CAN frames in real time. N2KMeter uses a patented integrated intelligence technique to summarize multiple NMEA 2000 network operational variables into a single health index.

To a service technician, it's a “guru-in-a-box”, providing a detailed reading of network performance. It displays NMEA 2000 network health by displaying a happy face icon, indicating a healthy network; a sad face, indicating a serious problem; or a neutral face, indicating nominal performance (a good indication to repair things before they actually fail). N2KMeter then walks the user through each fault condition and its source, or it can record key operating parameters for offline review.

N2KMeter NMEA 2000® Diagnostic Tool

The N2KMeter is a diagnostic tool for NMEA 2000® networks that allows users to validate NMEA 2000® network compatibility and operations during installation of a device or complete system, and diagnose possible network flaws or failures that occur on an operational network.

Cut troubleshooting time from hours to seconds, by effectively identifying and diagnosing network problems. N2KMeter provides the detailed technical information an NMEA 2000® troubleshooting expert needs, yet it simplifies and summarizes, allowing an NMEA 2000® novice to effectively identify and diagnose network problems. Battery-powered operation allows a novice user to save readings for experts to analyze later, off the boat.

N2KMeter uses an integrated intelligence technique to summarize multiple NMEA 2000® network operational variables into a single health index. To a service technician, it's a "guru-in-a-box", providing a detailed reading of network performance.

It summarizes NMEA 2000® network health by displaying a happy face icon, indicating a healthy network; a sad face, indicating a serious problem; or a neutral face, indicating nominal performance (a good indication to repair things before they actually fail). N2KMeter then walks the user through each fault condition and its source, or it can record key operating parameters for offline review.

Features:

• Opens and shorts

• Incorrect topology

• Bad nodes

• Bad termination

• Improper shield connection

• Intermittent problems

• Excessive scan rate

  WARNING: This product can expose you to chemicals including NICKEL (METALLIC) which is known to the State of California to cause cancer. For more information go to P65Warnings.ca.gov.



  Whether you are a professional or a person who likes to cruise, you can make the most of your boat and time on the water! Built on the premise of considering the highest quality standards and reliability, each...


  • Power Supply: Network 7 - 30v DC < 90MA
  • Batteries 2 X AA Alkaline Batteries
  • 6 Hours Of Operation Approx.
  • 1 Year Data Retention
  • Connectors: Micro Connector
  • Band Rates: 125k, 250k and 500k (Auto-detect)
  • Analog Accuracy: Bus Power±100mv, Bus Signal±20mv
  • Analog Range: Bus Power 0 to 25v with over/under
  • Range Indication Bus signal -5 To 10v with over/under range Indication
  • Analog Sample Rate: Bus Power 1 Khz Bus Signal Ideal Sample Pt±250ns
  • Signal Error Threshold: NMEA 2000 Spec for Network Power
  • Bus Load Measurement: Detects Bus Idle In Real Time Bus Message
  • Rate Measurement: Detects 100% of Individual CAN Frames in Real Time
  • Error Rate Measurement: Detects 100% of Individual Error Frames in Real Time




  APPROVALS:




  • NMEA: NMEA 2000 Approved

  SKU: NVN-31742
  MPN: N2KMETER-01
  UPC: 873804000053
