Whitecap S-1465C 7/8" Rectangular Rail Base 60 Degree
Whitecap S-1465C 7/8" Rectangular Rail Base 60 Degree — Product description

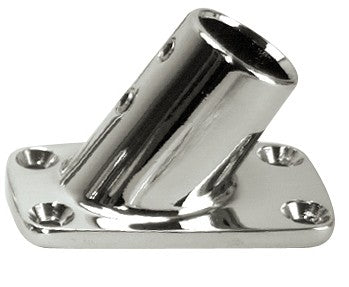

The Whitecap S-1465C is a rectangular rail base with a 60 degree angle, cast from Zamac with a silver finish and sized for 7/8 inch tube. It's the fitting you reach for when you're rigging a rail, canopy frame, or handrail on a fresh water boat.
If you've ever built or repaired a rail on a boat, you know the base fitting does the quiet, important work. The Whitecap S-1465C is a rectangular base that sets your tube at a 60 degree angle off the mounting surface, which is the go-to angle for a lot of side rails and canopy frames. It takes 7/8 inch outside diameter tube, the common size for marine rails and bimini bows.
It's cast from Zamac and finished in silver, so it looks clean against gelcoat or a painted deck. The rectangular footprint gives you two mounting holes in a straight line, which makes it easy to lay out and lock down solid. Use it to start a rail run, tie into a canopy frame, or rebuild a fitting that's seen better days.
One thing to be clear about. This one's rated for fresh water installation only. Zamac holds up great on lakes and rivers, but salt is hard on it over time. If you're on a fresh water boat, it's a clean, affordable fix. Running in salt? You'll want a stainless fitting instead.
Key Features
- Rectangular base sets 7/8 inch tube at a 60 degree angle, the common angle for side rails and canopy frames
- Fits 7/8 inch outside diameter tube, the standard size for marine rails and bimini bows
- Cast from Zamac with a silver finish for a clean look against gelcoat or painted decks
- Rectangular footprint with in-line mounting holes for easy layout and a solid hold
- Rated for fresh water installation, ideal for lake and river boats
Why Buy from NVN Marine
- Authorized Whitecap reseller, full manufacturer warranty
- NMEA member and ABYC certified, advice from real boat techs
- Same-day shipping before 3 PM ET on in-stock items
- NY headquarters and Fort Lauderdale flagship retail store
Technical specifications
| Title | Whitecap S-1465C Rectangular Rail Base, 60 Degree Angle, 7/8 Inch Tube |
|---|---|
| Brand | Whitecap |
| Manufacturer Part Number | S-1465C |
| UPC | 725060146511 |
| Base Shape | Rectangular |
| Angle | 60 Degree |
| Material | Zamac |
| Finish | Silver |
| Tube Outside Diameter | 7/8 Inch |
| Installation | Fresh Water Only |
Frequently asked questions
What tube size does the S-1465C fit?
It's sized for 7/8 inch outside diameter tube, the common size for marine rails and bimini bows.
What angle does this base set the tube at?
60 degrees off the mounting surface, which is a typical angle for side rails and canopy frames.
Can I use this in salt water?
No. This fitting is rated for fresh water installation only. It's cast from Zamac, which holds up well on lakes and rivers but doesn't stand up to salt over time. For salt water, choose a stainless fitting.
What is the base made of?
It's cast Zamac with a silver finish. The rectangular footprint gives you in-line mounting holes for an easy, solid install.
