Whitecap 7/8 In Jaw Slide Chrome Zamac | S-1430C
Whitecap 7/8 In Jaw Slide Chrome Zamac | S-1430C — Product description

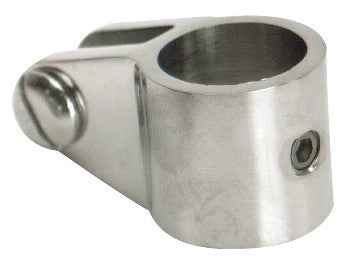

This is the little chrome fitting that holds a canvas top frame together. Whitecap's 7/8 inch jaw slide fits round tubing, locks down with a set screw, and gives you a clean jaw end for connecting your bimini or top bows. Zamac construction, chrome-plated, built for fresh water rigs.
When a canvas top frame needs a fitting that slides onto the tube and gives you a solid jaw connection, this is it. Whitecap's S-1430C jaw slide fits 7/8 inch round tubing, the standard size on a lot of bimini tops and canvas frames. Slide it into position, snug the set screw down, and it stays put.
The body is Zamac with a chrome-plated silver finish, so it looks clean on the frame and shrugs off the weather you'd see on a lake or river. The jaw end takes a 1/4 inch-20 bolt to connect to an eye end or another fitting, and the included 1/4 inch-28 set screw locks it to the tube. It ships as a single piece, so count up how many joints your frame has before you order.
One honest note: Whitecap rates this one for fresh water installation only. If you're rigging a saltwater boat, you'll want a stainless fitting instead.
Key Features
- Fits 7/8 inch round tubing, the common size on bimini and canvas top frames
- Chrome-plated Zamac body, clean look with weather resistance for fresh water rigs
- 1/4 inch-20 bolt jaw end connects to eye ends and other frame fittings
- Included 1/4 inch-28 set screw locks the slide firmly to the tube
- Sold as a single piece, order one per joint on your frame
Why Buy from NVN Marine
- Authorized Whitecap reseller, full manufacturer warranty
- NMEA member and ABYC certified, advice from real boat techs
- Same-day shipping before 3 PM ET on in-stock items
- NY headquarters and Fort Lauderdale flagship retail store
Technical specifications
| Title | Round Tube; 7/8 Inch Tubing; 1/4 Inch-20 Bolt Size; Silver; Zamac; With 1/4 Inch -28 Set Screws/ Bolt; Single; For Fresh Water Installation Only |
|---|---|
| Brand | Whitecap |
| Manufacturer Part Number | S-1430C |
| UPC | 725060143015 |
| Tube Shape | Round Tube |
| Tubing Size | 7/8 Inch |
| Bolt Size | 1/4 Inch-20 |
| Set Screw Size | 1/4 Inch-28 |
| Material | Zamac |
| Finish | Chrome-Plated Silver |
| Quantity | Single |
| Recommended Use | Fresh Water Installation Only |
Frequently asked questions
What tube size does this jaw slide fit?
It's made for 7/8 inch round tubing, which is a common diameter on bimini tops and canvas top frames.
What is it made of?
The body is Zamac, a zinc alloy, with a chrome-plated silver finish.
Can I use it on a saltwater boat?
Whitecap rates this fitting for fresh water installation only. For a saltwater rig, choose a stainless steel fitting instead.
Does it come with the set screw?
Yes. It ships with a 1/4 inch-28 set screw to lock the slide onto the tube. The jaw end uses a 1/4 inch-20 bolt to connect to other fittings.
How many do I get?
This is sold as a single piece. Count the joints on your frame and order one for each.
