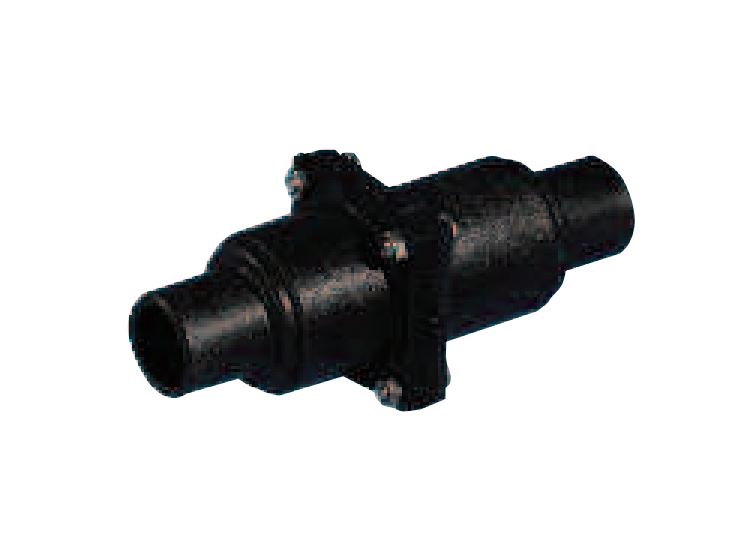

Whale LV1215B Non-Return Valve, Gusher Titan Pumps

A non-return valve doesn't get much glory, but leave it out of a bilge line and you'll notice fast. The Whale LV1215B is the in-line check valve built for Whale's Gusher Titan diaphragm pumps, and its whole job is keeping water moving one direction. Down the discharge, out of the boat, and never back.

Here's the problem it solves. A manual diaphragm pump like the Gusher Titan moves water in strokes, and between strokes the water column in the hose wants to drain back toward the low point. On a long run or a high lift, that backflow means you're re-priming the pump on every single stroke, and you're pumping the same water twice. Drop this valve into the suction or discharge line and the water can't fall back. The pump stays primed, each stroke moves fresh water, and you clear the bilge in a fraction of the strokes.

That prime-holding is the whole point of a manual bilge pump you can actually rely on. When water's coming in and you're working the handle, you don't want to waste half your effort just pulling the column back up the hose. A good non-return valve turns every pull into real water overboard. It's the difference between a pump that feels like it's fighting you and one that clears the bilge with an easy, steady rhythm.

It's matched to the Gusher Titan family, the BP4402 and the BP4410. The BP4402 is the standard on-deck or through-deck version, the BP4410 is set up for bulkhead and thru-deck mounting, and both are serious manual bilge pumps sized for boats over 40 feet. If you're running a Titan as your primary manual bilge pump or as backup to an electric pump, this is the valve Whale specs for the job.

The body is glass-filled polypropylene, and that matters down in a bilge. It shrugs off saltwater, oil, fuel sheen, and the general sludge that collects in the lowest part of the boat. It won't corrode like a metal valve, and the glass fill gives the plastic the stiffness to hold its shape under the suction and pressure the pump generates. Black, so it blends into the bilge instead of yellowing in the sun.

The ports are sized 1 inch by 1-1/2 inch, matched to standard Titan plumbing. It's an in-line design, so it splices straight into the hose run with hose clamps, no bracket or bulkhead penetration needed. Mount it in either the suction line or the discharge line depending on your plumbing. The one rule that matters is getting the flow direction right. The valve is one-way, so the body orientation has to point the way you want water to travel. Install it backward and the pump won't draw at all.

Non-return valves are wear items. The internal disc opens and closes every stroke, and over years of grit, UV, and the odd bit of debris, it can start to seep or stick. If your Gusher Titan has gotten harder to prime, or you're seeing water sneak back down the line after you stop pumping, a tired non-return valve is one of the first things to check. Swapping in a fresh LV1215B is a ten-minute job with a couple of hose clamps, and it's a lot cheaper than tearing into the pump itself.

This isn't a strainer, so it won't stop debris from reaching the pump, and it isn't a seacock, so don't count on it as your shutoff below the waterline. It does one thing and does it well, a one-way gate that holds your prime and stops backflow. It's worth keeping a spare aboard even if your line already has one, because a check valve that's stuck open is a check valve that isn't doing anything, and you'll want the replacement in hand before you need it out on the water.
