Whale AK9003 Gusher Urchin Bilge Pump Service Kit

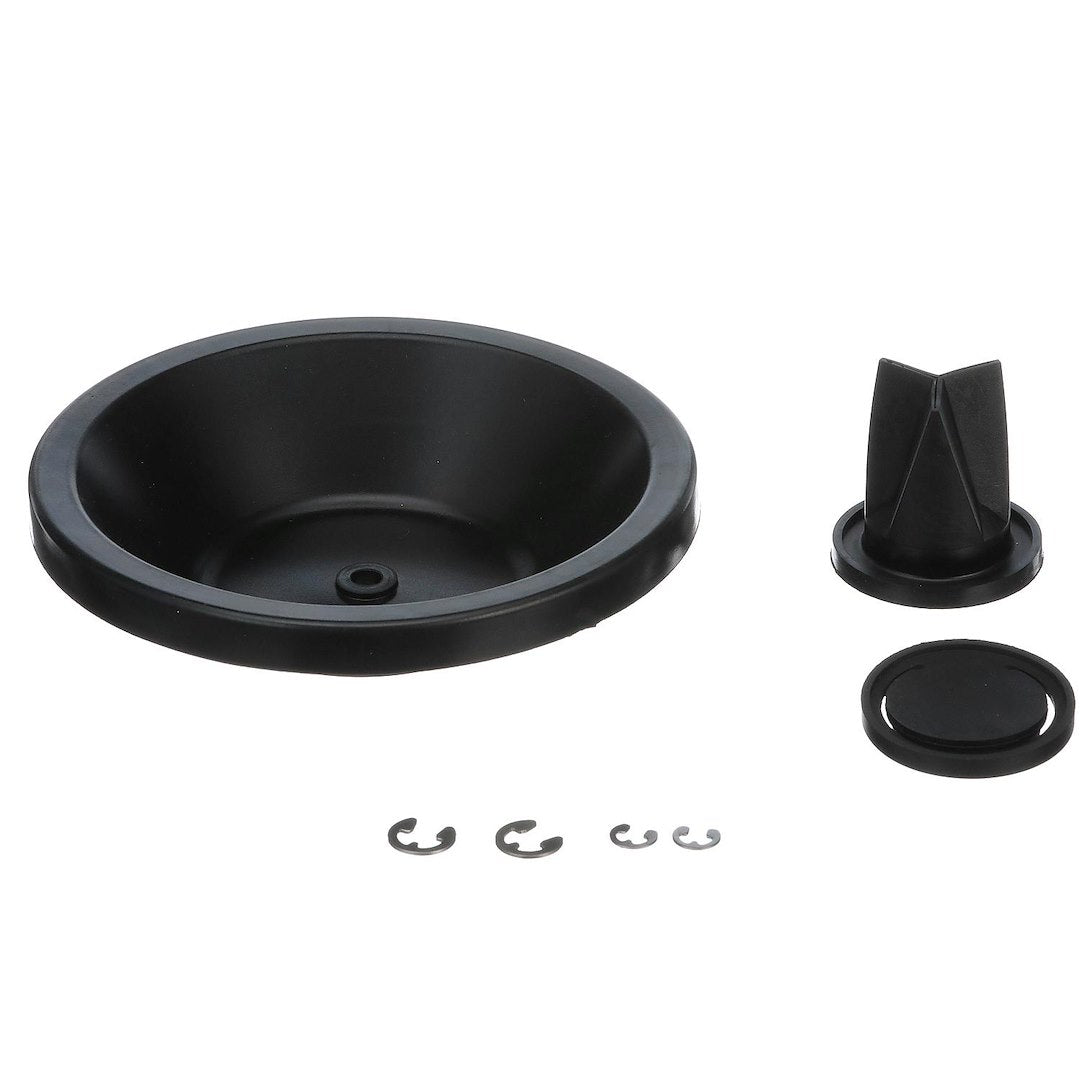

The Whale Gusher Urchin is one of those pumps that just keeps working season after season, and this AK9003 kit is how you keep it that way. It's the factory service kit for the BP9005 and BP9021 Urchin compact bilge and waste pumps. Inside you get everything that actually wears out: a fresh neoprene diaphragm, a new inlet valve, a new outlet valve, two small circlips, and two large circlips. That's the full set of soft parts and retainers, so one kit brings a tired pump back to full flow.

Here's the thing about these Urchin pumps. The housing and the lever gear are built to last for years, but the diaphragm and valves take all the abuse. Saltwater, grit, UV, and the freeze-thaw of a winter on the hard all chew through the rubber. When your pump starts losing prime, moving less water per stroke, or dribbling instead of pushing a solid slug, it's almost always the diaphragm or a torn valve flap, not the pump body. Replacing those parts costs a fraction of a new pump, and the whole rebuild takes about 15 to 20 minutes at the bench or down in the bilge.

Because it's the genuine Whale kit, the diaphragm is molded neoprene and the valves are matched to the Urchin's port geometry, so you're not fighting a universal part that almost fits. That matters on a pump you're trusting to clear water in a hurry.

This kit is matched to the Gusher Urchin family, specifically the BP9005 fixed-handle version and the BP9021 removable-handle version. Both are the compact manual pumps you'll find mounted on deck, on a bulkhead, or low in the bilge of sailboats and smaller powerboats. If you're not sure which Urchin you've got, check the casting on the pump body. The soft parts in the AK9003 are common to both, but it's worth confirming your port threads match before you order, especially on an older pump.

The Urchin isn't only a bilge pump, either. Plenty of boaters run it for waste and greywater transfer, and the same soft parts wear the same way in that duty. If yours has been pulling from a shower sump or a holding setup, the diaphragm and valves are working just as hard as any bilge pump. A strainer or strum box on the inlet cuts down on debris damage and stretches the life of every rebuild, which is worth fitting while you've got the pump apart anyway.

The rebuild itself is straightforward, but a couple of details make the difference between a dry job and a leaky one. Seat the new diaphragm fully into its groove before you tighten the cover down, because the most common leak after a service is a diaphragm that got pinched at the large circlip. Clean the valve seats before you drop the new valves in. On an older pump with a corroded housing, the inlet valve can bind if the mating surface is rough, so a quick wipe-down saves you grief. And keep track of those small circlips. They love to pop off and disappear, so a magnetic pickup tool is your friend in a tight bilge.

One more tip from the dock: buy a spare set of small circlips or a second kit if you cruise far from a chandlery. Those little retainers are the one part that tends to walk off on the first service, and you don't want a fresh diaphragm sitting on the shelf because you lost a five-cent clip.

If you run a manual pump as backup to an electric one, or as the primary on a smaller boat, keeping a service kit aboard is cheap insurance. A lot of sailors get two or three seasons out of a diaphragm in saltwater, so it's smart to rebuild on a schedule rather than waiting for the pump to quit when you actually need it most. After you button it back up, work the pump a few strokes dry to check the action and confirm the valves are sealing before you splash. Do that, and your Urchin will move water like the day it was new.
