Weld Mount PS62-832-12SS Stainless Panel Studs, 10 Pack
Weld Mount PS62-832-12SS Stainless Panel Studs, 10 Pack — Product description

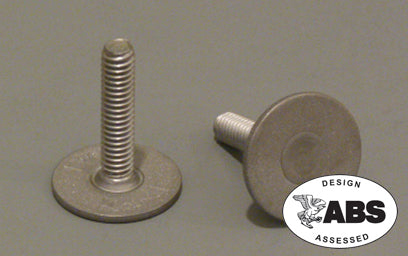

These Weld Mount #8-32 stainless studs give you a low-profile threaded mount for wire clamps and small components, right where you need them. Each stands 0.75 inches on a 0.62 inch base, rated at 300 lbs tensile and 375 lbs shear. You get 10 per pack, built to hold tight in salt air without rusting.
Weld Mount's #8-32 stainless panel studs solve a problem every rigger runs into. You need to secure a wire clamp or a small component to a surface where you can't get a screw in from behind. These studs give you a clean threaded post to work with. Each one stands 0.75 inches tall on a 0.62 inch base plate, small enough to tuck behind a dash panel or up under the console where space is tight.
Originally they showed up on the backs of dash panels. Now boaters use them all over the boat for holding wire clamps, cable runs, and other small gear against composite surfaces. The stainless build shrugs off salt air and damp, so they won't rust out on you a season later.
Strength? They're rated at 300 lbs tensile and 375 lbs shear, so a mounted clamp stays put through vibration and pounding chop. This pack gives you 10 studs, enough to tidy up a full wiring run in one sitting. Simple gear that does exactly what it says.
Key Features
- #8-32 threaded stud, gives you a solid machine-screw mount for wire clamps and small components.
- 0.75 in tall on a 0.62 in base plate, low enough to tuck behind dash panels and consoles.
- 300 lb tensile and 375 lb shear strength, holds tight through vibration and chop.
- Stainless steel build, stands up to salt air and damp bilges without rusting.
- 10 studs per pack, enough to tidy up a full wiring run in one go.
Why Buy from NVN Marine
- Authorized Weld Mount Systems reseller, full manufacturer warranty
- NMEA member and ABYC certified, advice from real boat techs
- Same-day shipping before 3 PM ET on in-stock items
- NY headquarters and Fort Lauderdale flagship retail store
Technical specifications
| Title | Weld Mount 0.75in Tall #8 x 32 PS62-832-12SS-10 SS Stud 0.62in Base 10 Pack |
|---|---|
| Brand | Weld Mount Systems |
| Manufacturer Part Number | PS62-832-12SS-10 |
| UPC | 723022002066 |
| Thread Size | #8-32 |
| Stud Height | 0.75 in |
| Base Diameter | 0.62 in |
| Tensile Strength | 300 lbs |
| Shear Strength | 375 lbs |
| Material | Stainless Steel |
| Quantity | 10 Pack |
Frequently asked questions
What thread size are these studs?
They use a #8-32 machine-screw thread, so any standard #8-32 nut or clamp threads right on.
How strong are they?
Each stud is rated at 300 lbs tensile strength and 375 lbs shear strength, plenty for wire clamps and small components.
What size are the studs?
Each stud stands 0.75 inches tall on a 0.62 inch diameter base plate.
How many studs come in the pack?
This is a 10 pack, so you get 10 stainless studs.
What are they used for?
They're used to secure wire clamps and other small components to composite surfaces, like the back of a dash panel or up under the console.
